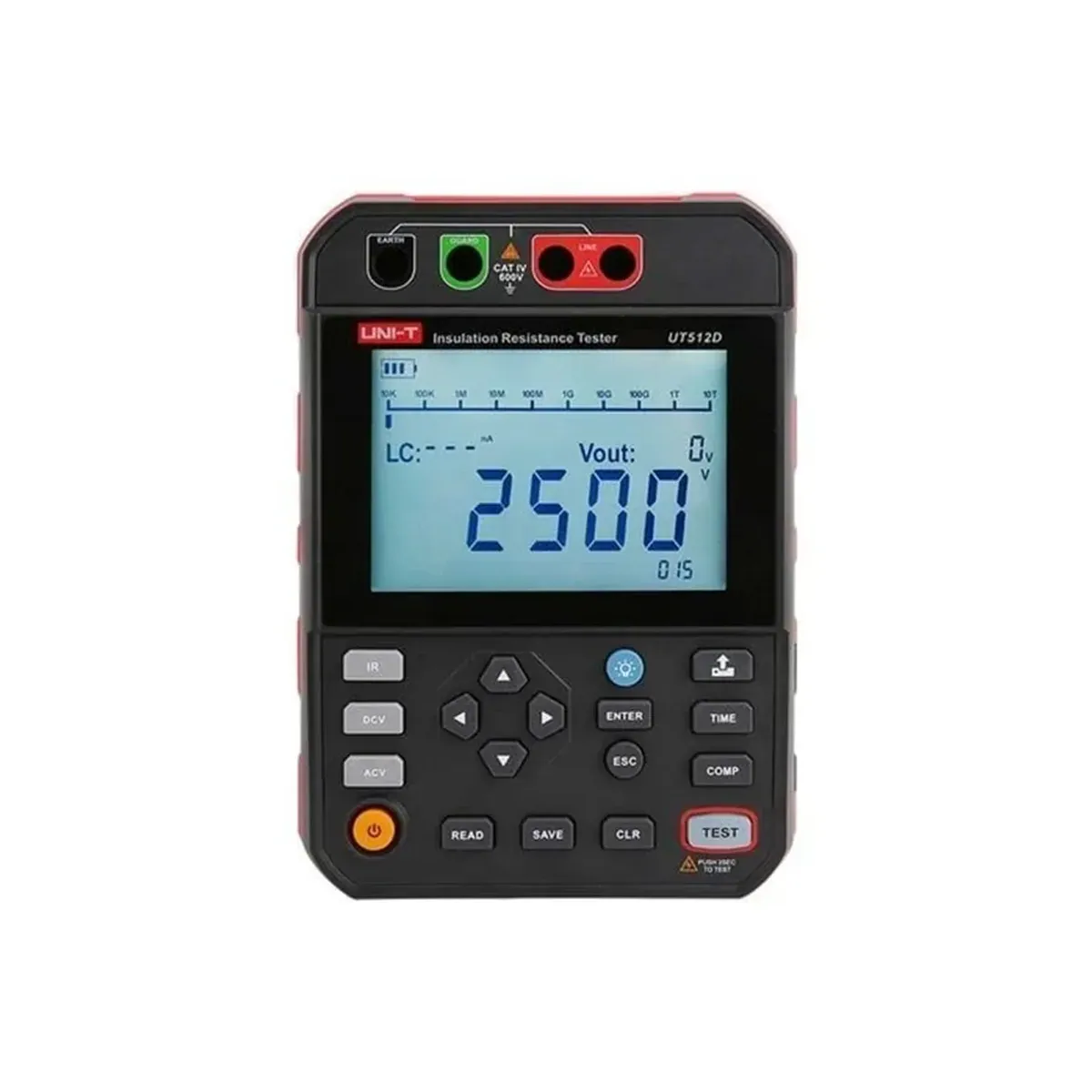

Unit UT512D Insulation Resistance Tester
- Brand: Unit
- SKU: UT512D
- MPN: UT512D
- Price: 14846.55 TRY + VAT · incl. VAT 17815.86 TRY
- Availability: In stock
- Insulation Resistance Testers
- Selection guide: Insulation Resistance Testers Selection Guide: Technical Criteria & Application Standards
Unit UT512D Insulation Resistance Tester. AC Voltage Measurement: 30~750VAC 50Hz/60Hz. DC Voltage Measurement: 30~1000VDC. Current Measurement: 0.01nA~3.5mA. Short-circuit Current: approximately 3.5mA. PI Test: automatic display. DAR Test: automatic display. Safety Category: CAT IV 600V. Weight: Approx. 1800g (battery included). Insulation Resistance (250V): <0.25MΩ; for reference only; 0.25MΩ~4.99GΩ; ±(5%+5); 5.00GΩ~24.9GΩ; ±(20%+10); 25.0GΩ~100GΩ; for reference only. Insulation Resistance (500V): <0.50MΩ; for reference only; 0.50MΩ~9.99GΩ; ±(5%+5); 10.0GΩ~49.9GΩ; ±(20%+10); 50.0GΩ~200GΩ; for reference only. Other features: Insulation Resistance (1000V): <1.00MΩ; reference only; 1.00MΩ~19.9GΩ; ±(5%+5); 20.0GΩ~99.9GΩ; ±(20%+10); 100GΩ~400GΩ; reference only; Insulation Resistance (2500V): <2.50MΩ; reference only; 2.50MΩ~49.9GΩ; ±(5%+5); 50.0GΩ~249GΩ; ±(20%+10); 250GΩ~1.00TΩ; reference only; Power Source: 8 × LR14 alkaline battery.
| AC Voltage Measurement | 30~750VAC 50Hz/60Hz |
|---|---|
| Current Measurement | 0.01nA~3.5mA |
| Gram | Yaklaşık 1800g (pil dahil) |
| DAR Test | otomatik gösterim |
| DC Voltage Measurement | 30~1000VDC |
| Safety Category | CAT IV 600 V |
| Power Source | 8 × LR14 alkalin pil |
| Short-circuit Current | yaklaşık 3.5mA |
| PI Test | otomatik gösterim |
| Insulation Resistance (1000V) | <1.00MΩ; yalnız referans; 1.00MΩ~19.9GΩ; ±(5%+5); 20.0GΩ~99.9GΩ; ±(20%+10); 100GΩ~400GΩ; yalnız referans |
| Insulation Resistance (2500V) | <2.50MΩ; yalnız referans; 2.50MΩ~49.9GΩ; ±(5%+5); 50.0GΩ~249GΩ; ±(20%+10); 250GΩ~1.00TΩ; yalnız referans |
| Insulation Resistance (250V) | <0.25MΩ; yalnız referans; 0.25MΩ~4.99GΩ; ±(5%+5); 5.00GΩ~24.9GΩ; ±(20%+10); 25.0GΩ~100GΩ; yalnız referans |
| Insulation Resistance (500V) | <0.50MΩ; yalnız referans; 0.50MΩ~9.99GΩ; ±(5%+5); 10.0GΩ~49.9GΩ; ±(20%+10); 50.0GΩ~200GΩ; yalnız referans |
