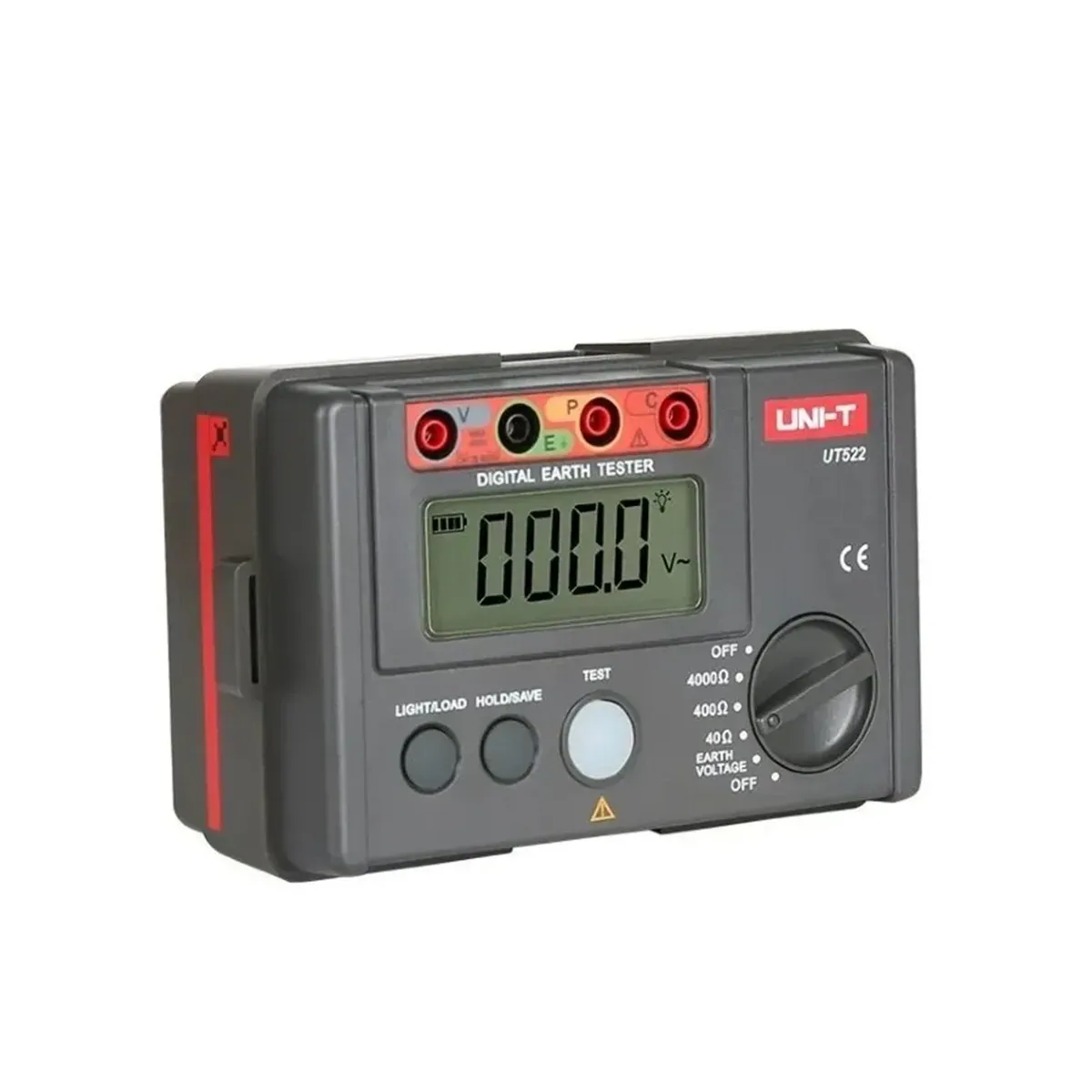

Unit UT522 Earth Megger
- Brand: Unit
- SKU: UT522
- MPN: UT522
- Price: 8770.88 TRY + VAT · incl. VAT 10525.06 TRY
- Availability: In stock
- Earthing Measuring Instruments
- Selection guide: Earthing Measuring Instruments Selection Guide: Technical Criteria & Application Standards
Unit UT522 Earth Megger is an earth resistance tester model from the UNI-T UT520 series. It has a 4000-count display. Measurement functions: earth resistance, earth voltage (0 – 400 V). Memory: 20 records. Other features: auto power off (approx. 10 min), low battery indicator, data hold, backlight, full symbol display, double insulation, poor contact indicator (“…Ω”), out-of-range (OL) indicator, simple 2-wire measurement, precision 3-wire measurement. Power source: 6 × 1.5 V battery (LR6). Box contents: batteries, simple test leads with alligator clips, standard test leads with alligator clips, earth stake, hanging strap.
| AC Earth Voltage Measurement | 0~400V (doğruluk: ±(1%+6)); Frekans: 50Hz/60Hz |
|---|---|
| Backlight | Available |
| Gram | 560 g |
| Low Battery Indication | Available |
| Additional Functions | Otomatik kapanma (yaklaşık 10 min), düşük pil göstergesi, veri tutma, arka ışık, tam simge ekran, çift yalıtım, zayıf temas göstergesi (“…Ω”), aralık aşımı (OL) göstergesi, basit 2 telli ölçüm, hassas 3 telli ölçüm |
| Display Size | 70,6 mm × 34 mm |
| Display Count | 4000 |
| Power Source | 6 × 1,5 V pil (LR6) |
| Memory | 20 kayıt |
| Range Selection | Manuel |
| Poor Contact Indicator | “...Ω” |
| Auto Power Off | Yaklaşık 10 dakika |
| Standard Accessories | Piller, timsah klipsli basit test kabloları, timsah klipsli standart test kabloları, toprak kazığı, askı kayışı |
| Full Symbol Display | Available |
| Earth Resistance Measurement | 0 – 40 Ω · ±(%2+20); 0 – 400 Ω · ±(%2+3); 0 – 4000 Ω · ±(%2+3) |
| Earth Voltage Frequency | 50 / 60 Hz |
| Earth Voltage Measurement | 0 – 400 V · ±(%1+6) |
| Data Hold | Available |
| Double Insulation | Available |
| Product Dimensions | 160 mm × 100 mm × 70,5 mm |
| Three-Wire Test | Available |
| Two-Wire Test | Available |
