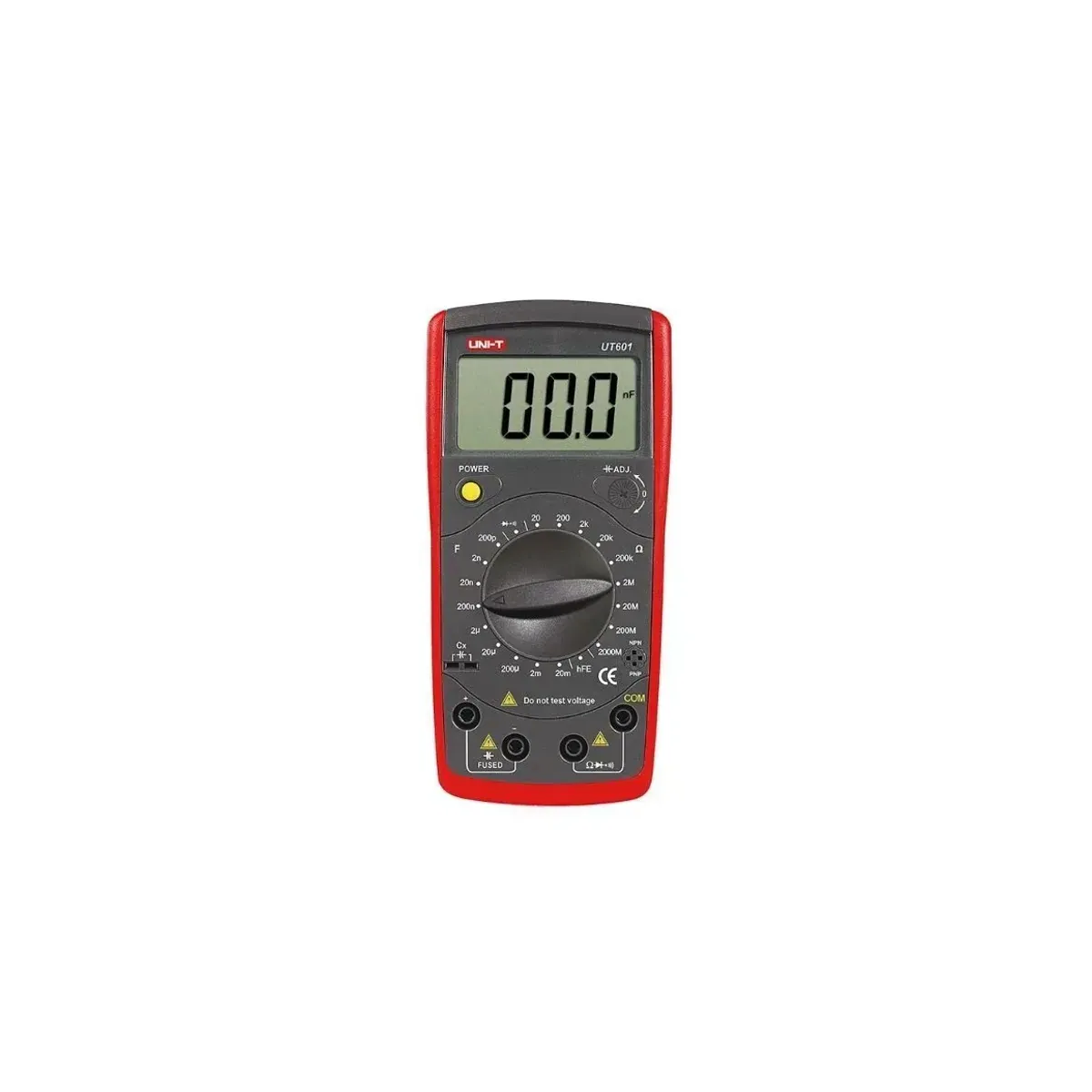

Unit UT601 Digital Capacitance Meter
- Brand: Unit
- SKU: UT601
- MPN: UT601
- Price: 1461.81 TRY + VAT · incl. VAT 1754.17 TRY
- Availability: Made to order
- LCR and Capacitance Meters
- Selection guide: Electronic Measuring Instruments Selection Guide
Unit UT601 is a digital meter from UNI-T's UT600 series used to measure resistance and capacitance; it can also measure transistor parameters. 200 pF to 20 mF measured in nine ranges with ±(0.5%+10) accuracy for capacitance, and resistance from 20 Ω to 2000 MΩ. It has a 2000-count display and manual range selection; it includes diode test, audible continuity and low battery indicator. Powered by a 9 V (6F22) battery; the battery, test probes with alligator clips and a protective holster come in the box.
| Gram | 310 g |
|---|---|
| Resistance Measurement | 20 Ω – 2000 MΩ (9 kademe) · ±(%0,8+1) |
| Diode Test | Available |
| Low Battery Indication | Available |
| Additional Functions | Transistör testi, diyot testi, sesli süreklilik, düşük pil göstergesi |
| Display Size | 61 × 32 mm |
| Display Count | 2000 |
| Power Source | 9 V pil (6F22) |
| Range Selection | Manuel |
| Capacitance Measurement | 200 pF – 20 mF (9 kademe) · ±(%0,5+10) |
| Standard Accessories | Pil, timsah klipsli test probları, koruyucu kılıf |
| Continuity Test | Available |
| Product Dimensions | 172 × 83 × 38 mm |
