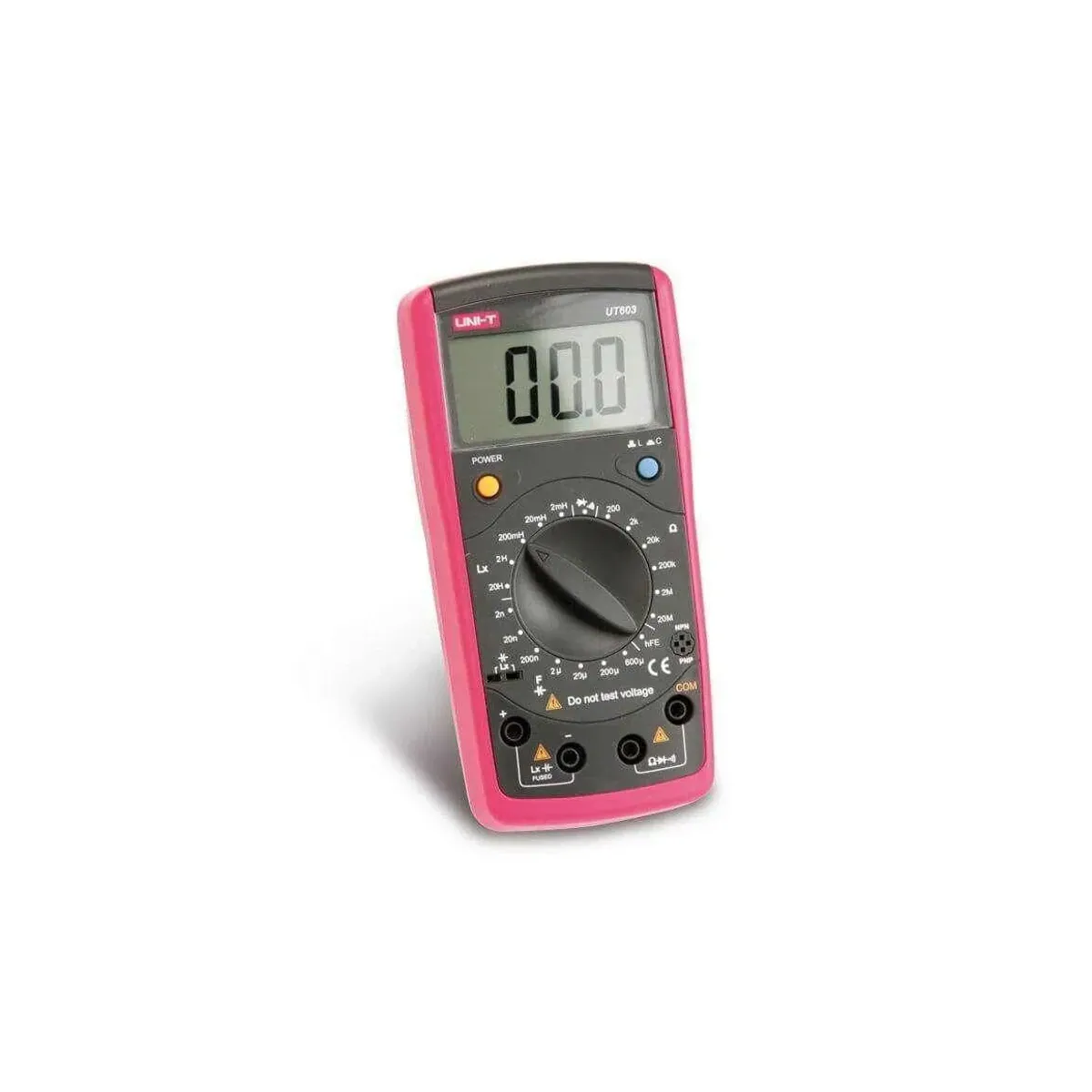

Unit UT603 LCR Meter Inductance Capacitance Meter
- Brand: Unit
- SKU: UT603
- MPN: UT603
- Price: 2421.13 TRY + VAT · incl. VAT 2905.36 TRY
- Availability: Made to order
- LCR and Capacitance Meters
- Selection guide: Electronic Measuring Instruments Selection Guide
Unit UT603 LCR Meter Inductance Capacitance Meter, a capacitance and LCR meter model of the UNI-T UT600 series. It has a 2000-count display. Measurement functions: resistance (20 MΩ), capacitance (600 µF), inductance (20 H). Other features: diode test, transistor test, audible continuity test, low battery indicator. Power source: 9 V battery (6F22). Box contents: battery, test probes with alligator clips, protective case.
| Resistance Measurement | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ · ±(%0,8+1) |
|---|---|
| Diode Test | Available |
| Low Battery Indication | Available |
| Additional Functions | Diyot testi, transistör testi, sesli süreklilik testi, düşük pil göstergesi |
| Display Size | 61 mm × 32 mm |
| Display Count | 2000 |
| Inductance Measurement | 2 mH / 20 mH / 200 mH / 2 H / 20 H · ±(%2+8) |
| Power Source | 9 V pil (6F22) |
| Range Selection | Manuel |
| Capacitance Measurement | 2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 600 µF · ±(%1+5) |
| Standard Accessories | Pil, timsah klipsli test probları, koruyucu kılıf |
| Continuity Test | Available |
| Product Dimensions | 172 mm × 83 mm × 38 mm |
