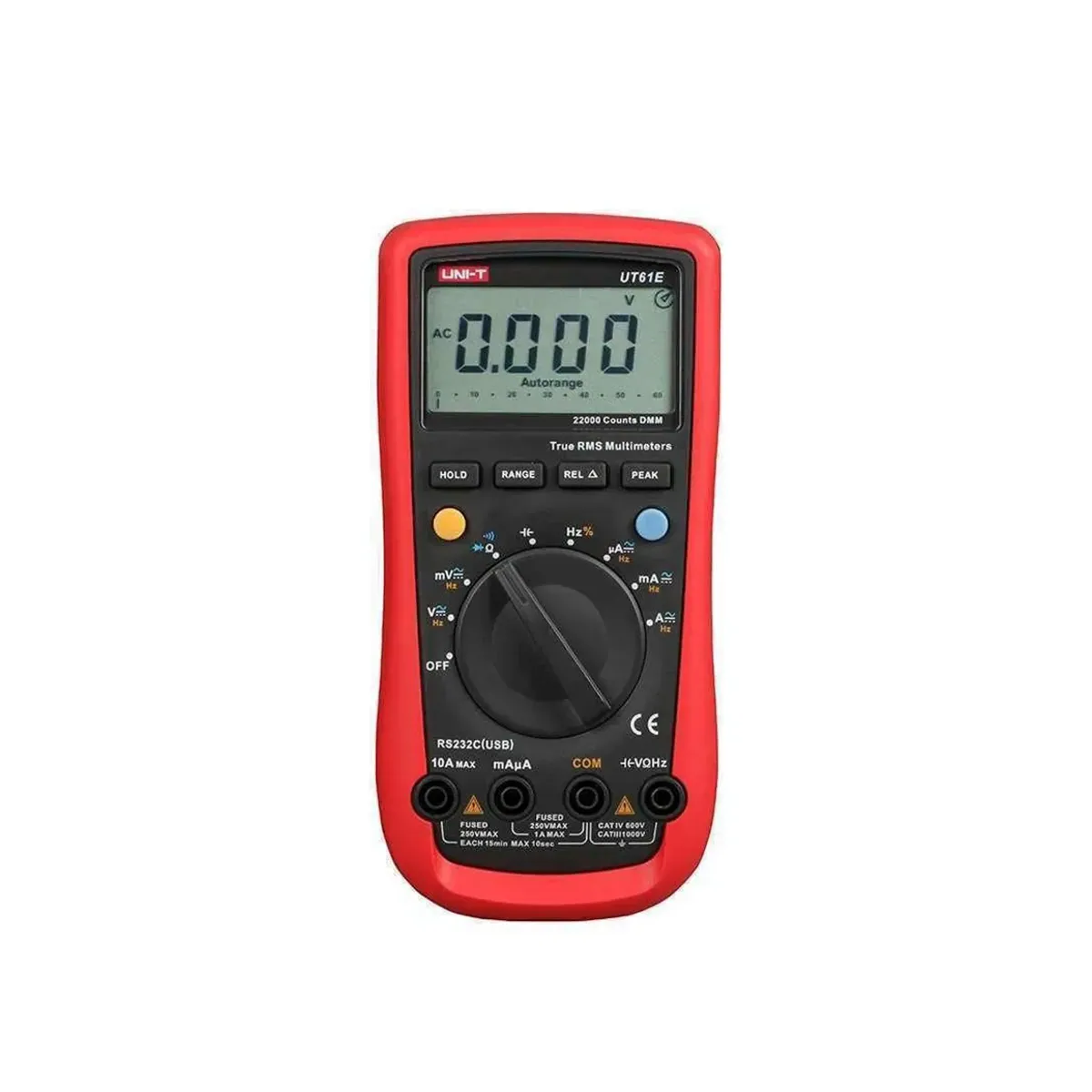

Unit UT61E+ True Rms Digital Multimeter
- Brand: Unit
- SKU: UT61E+
- MPN: UT61E+
- Price: 5116.35 TRY + VAT · incl. VAT 6139.62 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT61E+ True Rms Digital Multimeter. AC Current Measurement: 20A (accuracy: ±(0.8%+10)). DC Current Measurement: 20A (accuracy: ±(0.5%+10)). AC Voltage Measurement: 1000V (accuracy: ±(0.8%+10)). DC Voltage Measurement: 1000V (accuracy: ±(0.05%+5)). Display Count: 22000. Resistance Measurement: 220MΩ (accuracy: ±(0.5%+10)). Capacitance Measurement: 220mF (accuracy: ±(3%+5)). Frequency Measurement: 220MHz (accuracy: ±(0.01%+5)). Duty Cycle Measurement: 0.1%~99.9% (accuracy: ±(2%+5)). AC Bandwidth: 40~10kHz. Other features: LPF Voltage Measurement: Yes; AC+DC Voltage Measurement: Yes; Transistor hFE Measurement: Yes; Peak Hold: Yes; Analog Bar Graph: 46; Power Source: 1.5V battery (R03) x 4; Weight: 350g; Product Dimensions: 190mm x 90mm x 50mm.
| AC Current Measurement | 20A (doğruluk: ±(0.8%+10)) |
|---|---|
| AC Bandwidth | 40~10kHz |
| AC Voltage Measurement | 1000V (doğruluk: ±(0.8%+10)) |
| AC+DC Voltage Measurement | Available |
| Analog Bar Graph | 46 |
| Gram | 350 g |
| DC Current Measurement | 20A (doğruluk: ±(0.5%+10)) |
| DC Voltage Measurement | 1000V (doğruluk: ±(0.05%+5)) |
| Resistance Measurement | 220MΩ (doğruluk: ±(0.5%+10)) |
| Display Count | 22000 |
| Frequency Measurement | 220MHz (doğruluk: ±(0.01%+5)) |
| Duty Cycle Measurement | 0.1%~99.9% (doğruluk: ±(2%+5)) |
| Power Source | 1.5V pil (R03) x 4 |
| Capacitance Measurement | 220mF (doğruluk: ±(3%+5)) |
| LPF Voltage Measurement | Available |
| Peak Hold | Available |
| Transistor hFE Measurement | Available |
| Product Dimensions | 190mm x 90mm x 50mm |
