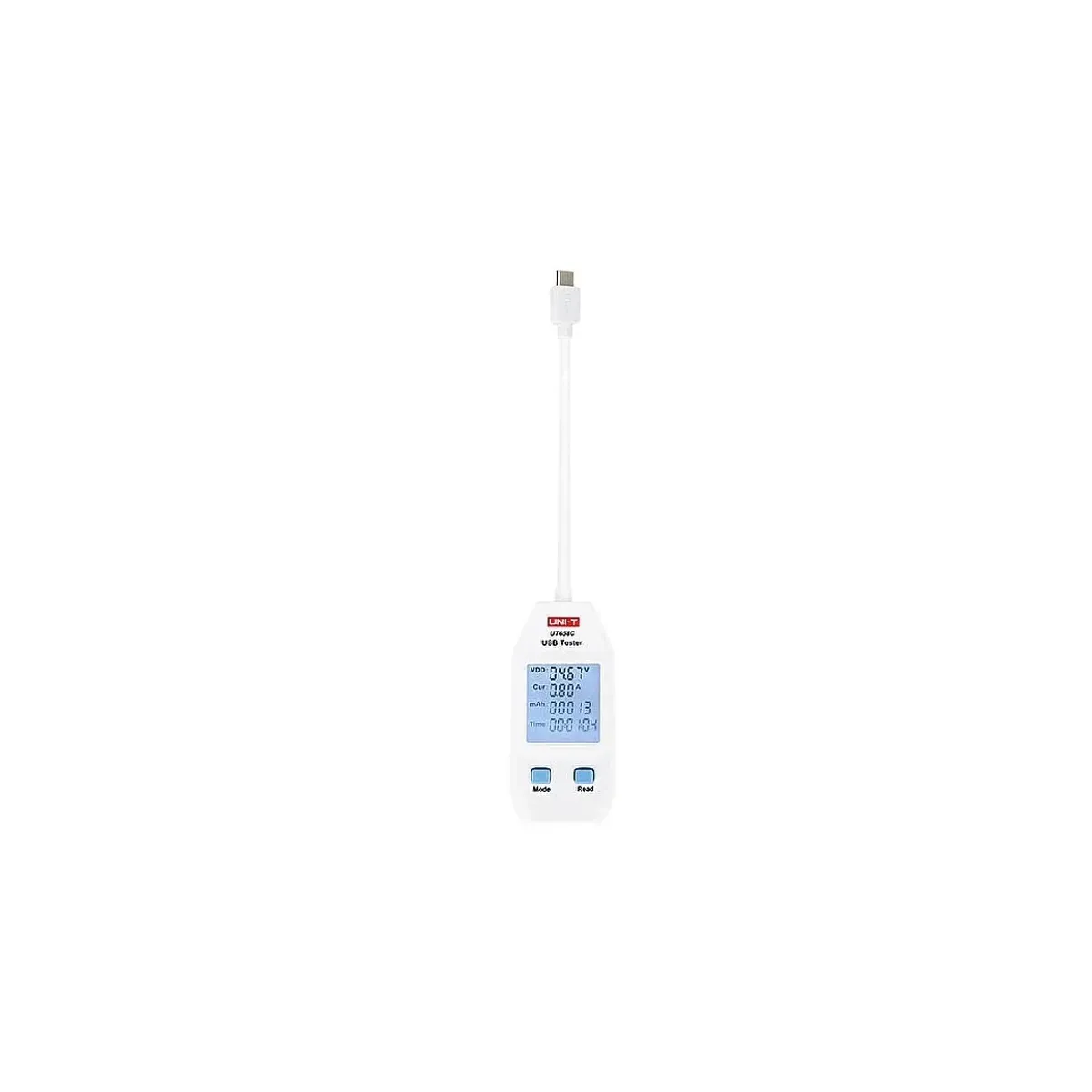

Unit UT658C USB Tester
- Brand: Unit
- SKU: UT658C
- MPN: UT658C
- Price: 593.86 TRY + VAT · incl. VAT 712.63 TRY
- Availability: Made to order
- USB Testers
- Selection guide: Electrical and Electronic Testers Selection Guide: Technical Criteria and Engineering Practice
Unit UT658C USB Tester is a USB tester model from the UNI-T UT658 series. Data/charging protocol: USB 2.0 / 4.0. Other features: input/output ports (Type-C), voltage measurement, current measurement (Type-C), capacity measurement, energy measurement, circuit equivalent resistance measurement, USB data line voltage (D+, D−), data logging, maximum recording time, fast charging protocol (Type-C).
| Gram | 50.6 g |
|---|---|
| Circuit Equivalent Resistance | 1~480Ω |
| Additional Functions | Giriş/çıkış portları (Type-C), gerilim ölçümü, akım ölçümü (Type-C), kapasite ölçümü, enerji ölçümü, devre eşdeğer direnci ölçümü, USB veri hattı gerilimi (D+, D−), veri kaydı, maksimum kayıt süresi, hızlı şarj protokolü (Type-C) |
| Energy Measurement | 0~1000Wh |
| Voltage Range | 4~24VDC, çözünürlük: 0.01V |
| Memory | 10 kayıt |
| Capacity Measurement | 0~99999mAh, çözünürlük: 1mAh |
| Maximum Recording Time | 99h, 59min, 59s; çözünürlük: 1s |
| Type-C Current Range | 0.05~5ADC, çözünürlük: 0.01A |
| Type-C Input/Output | Available |
| Type-C Fast Charging Protocol | QC 4.0 hızlı şarj protokolü |
| USB Data Line Voltage | 0~3.3V |
| Data/Charging Protocol | USB 2.0 / 4.0 |
| Product Dimensions | 93 mm × 45 mm × 13 mm |
