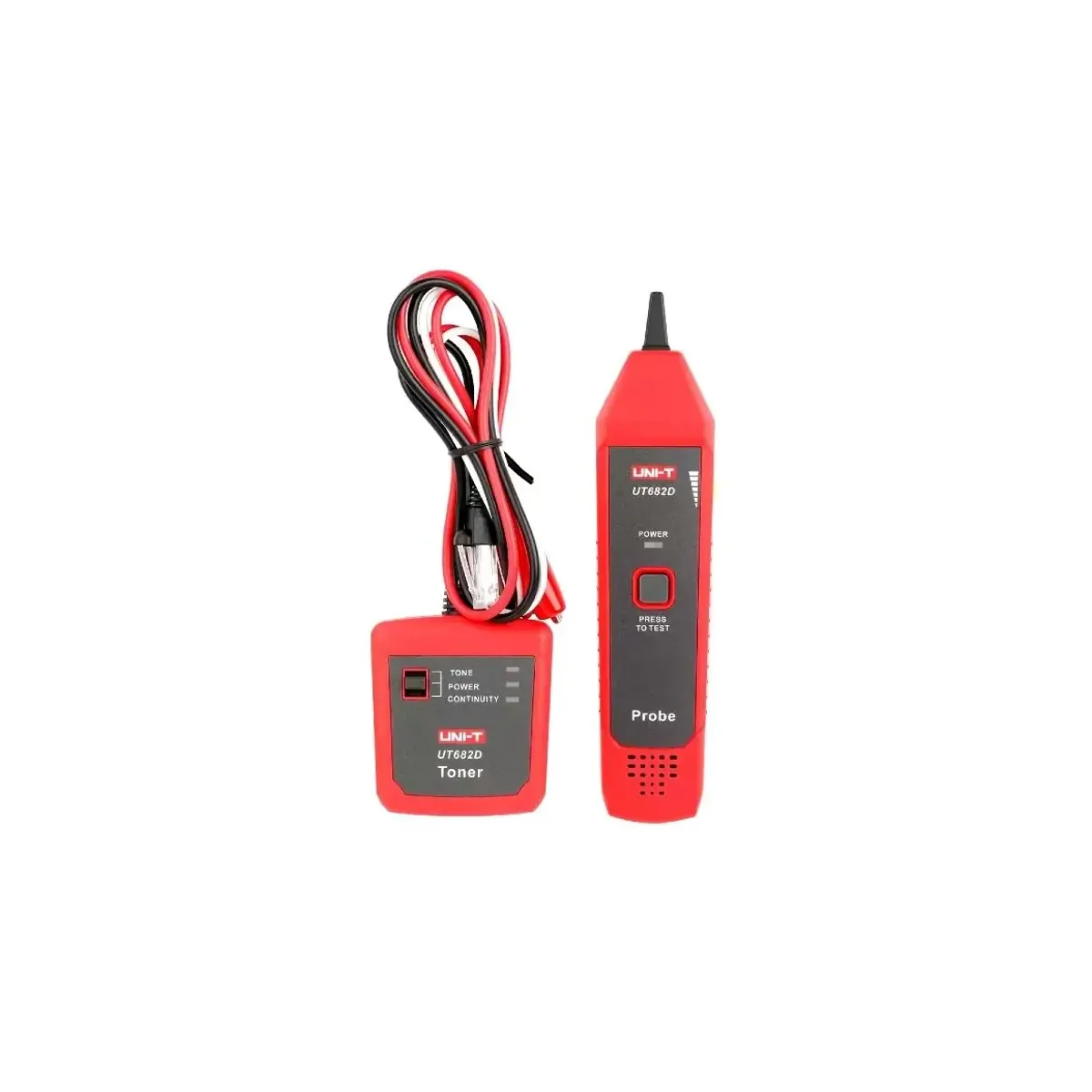

Unit UT682D Cable Tracer and Tester
- Brand: Unit
- SKU: UT682D
- MPN: UT682D
- Price: 1005.00 TRY + VAT · incl. VAT 1206.00 TRY
- Availability: In stock
- Cable Testers and Tracers
- Selection guide: Electrical and Electronic Testers Selection Guide: Technical Criteria and Engineering Practice
Unit UT682D Cable Tracer and Tester. Cable Types: Telephone line, twisted pair and electrical wire. Telephone Line Tracing Distance: ≥3000 m. Telephone Line Polarity Test: DC ±(5–52 V). Line Separation: Distinguishing telephone and LAN connections. Transmitter Output Voltage: 8 V DC (with new battery). Power Source: One 9 V battery each in the transmitter and receiver. Receiver Standby Current: Approximately 10 mA. Receiver Operating Current: <40 mA (AC RMS). Transmitter Input Protection: 60 V DC. Operating Environment: 0°C – 40°C; 20%–75 RH. Other features: Storage Environment: -10°C – 50°C; 10%–90 RH; Operating Altitude: ≤2000 m; Weight: Transmitter 150 g; receiver 130 g; Product Dimensions: Transmitter 74 × 68 × 28 mm; receiver 208 × 47 × 33 mm.
| Receiver Standby Current | Yaklaşık 10 mA |
|---|---|
| Receiver Operating Current | <40 mA (AC RMS) |
| Gram | Verici 150 g; alıcı 130 g |
| Storage Environment | -10°C – 50°C; %10–90 RH |
| Power Source | Verici ve alıcıda birer 9 V pil |
| Line Separation | Telefon ve LAN bağlantılarını ayırt etme |
| Cable Types | Telefon hattı, bükümlü çift ve elektrik teli |
| Telephone Line Polarity Test | DC ±(5–52 V) |
| Telephone Line Tracing Distance | ≥3000 m |
| Transmitter Input Protection | 60 V DC |
| Transmitter Output Voltage | 8 V DC (yeni pil ile) |
| Operating Environment | 0°C – 40°C; %20–75 RH |
| Operating Altitude | ≤2000 m |
| Product Dimensions | Verici 74 × 68 × 28 mm; alıcı 208 × 47 × 33 mm |
