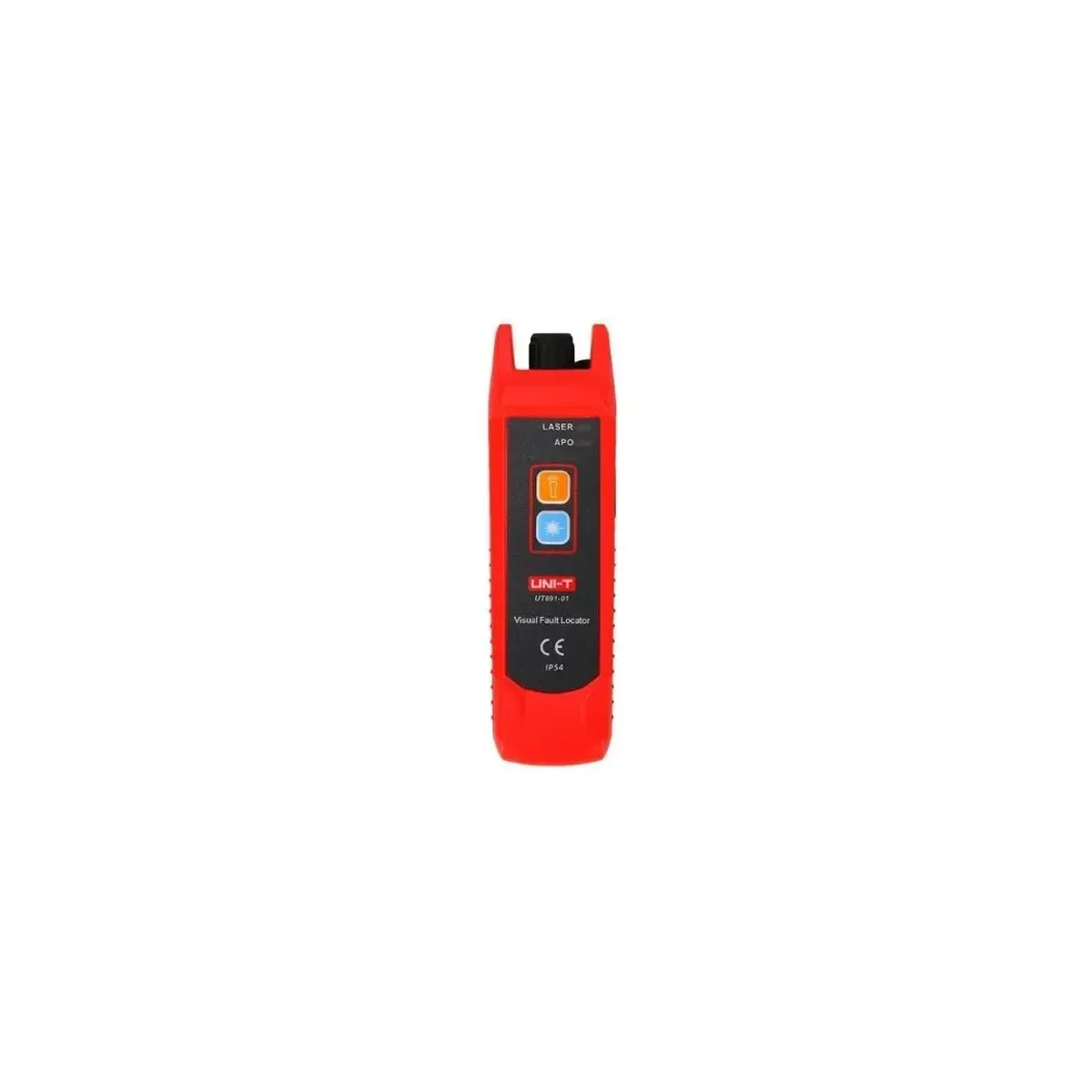

Unit UT691-01 Fiber Optic Visual Fault Locator
- Brand: Unit
- SKU: UT691-01
- MPN: UT691-01
- Price: 1050.68 TRY + VAT · incl. VAT 1260.82 TRY
- Availability: Made to order
- Fiber Optic Testers
- Selection guide: Electrical and Electronic Testers Selection Guide: Technical Criteria and Engineering Practice
Unit UT691-01 Fiber Optic Visual Fault Locator, a fiber optic test device model belonging to the UNI-T UT691 series. Fiber length range is 2–3 km. Laser output power ≥1 mW. Other features: warning symbol, warning. Power source: 1050 mAh rechargeable battery.
| Gram | 62 g |
|---|---|
| Drop Resistance | 1 m |
| Additional Functions | Uyarı simgesi, uyarı |
| Fiber Adapter | 2,5 mm FC genel konnektör |
| Fiber Length Range | 2–3 km |
| Power Source | 1050 mAh şarj edilebilir batarya |
| Red Light Wavelength | 650±10 nm |
| Laser Mode | sürekli / darbe modu |
| Laser Output Power | ≥1 mW |
| Fiber Optic Adapter | 2.5mm FC genel konnektör |
| Fiber Optic Distance Range | 2~3km |
| Auto Power Off | 15 min (manuel ayarlanabilir) |
| Battery Status Indicator | pil durumu 4 mavi LED ile gösterilir |
| Battery Life | >12 saat |
| Key Life | > 5000 basış |
| Green Indicator | otomatik kapanmada LED 3 kez beyaz yanıp söner |
| Product Dimensions | 130 mm × 38 mm × 27 mm |
| Charging Voltage and Current | DC 5 V, < 1 A |
