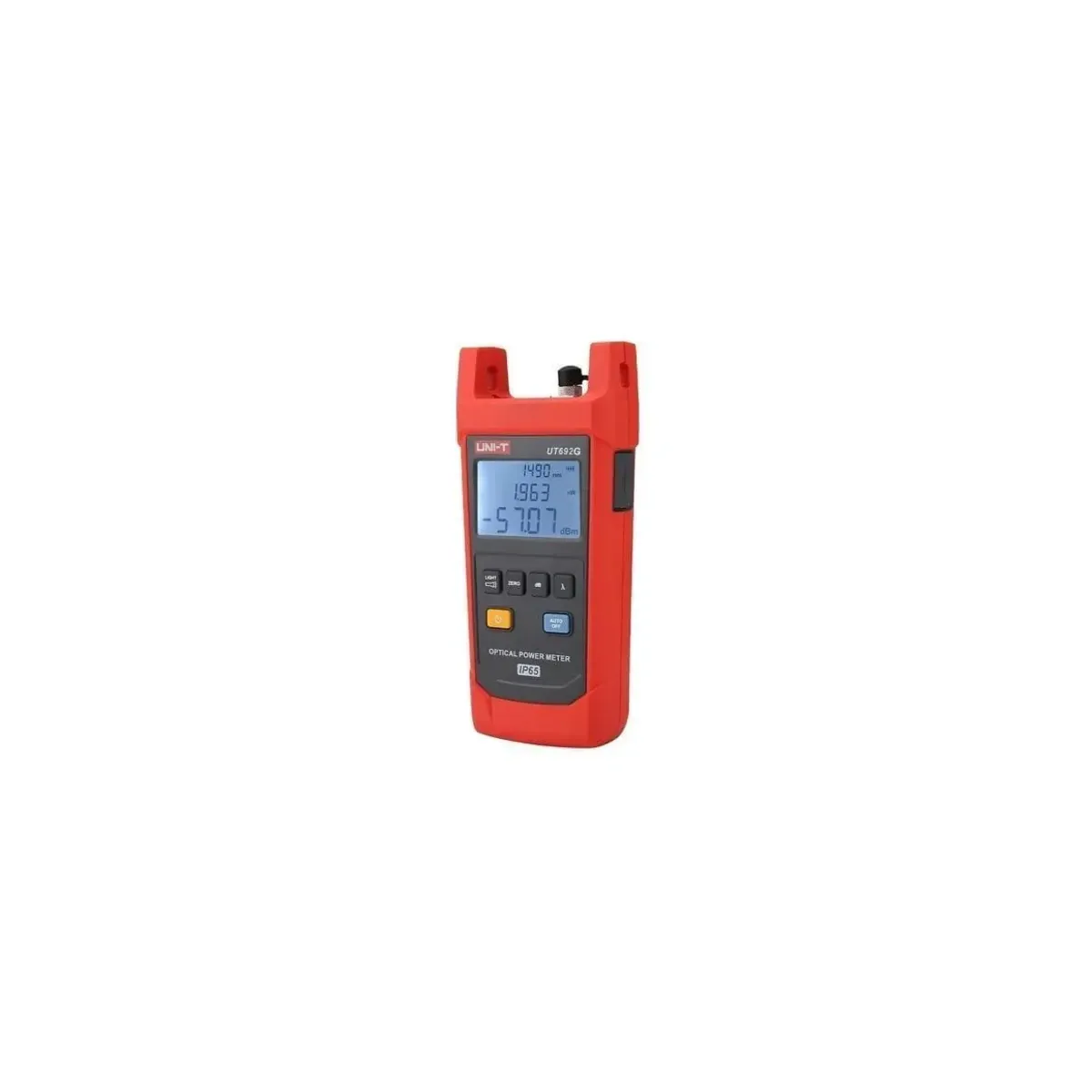

Unit UT692G Fiber Optic Power Meter
- Brand: Unit
- SKU: UT692G
- MPN: UT692G
- Price: 1964.31 TRY + VAT · incl. VAT 2357.17 TRY
- Availability: Made to order
- Fiber Optic Testers
- Selection guide: Electrical and Electronic Testers Selection Guide: Technical Criteria and Engineering Practice
Unit UT692G Fiber Optic Power Meter is a fiber optic test device model manufactured by UNI-T. Resolution linear: 0.1%, logarithmic: 0.01 dBm. Measuring range −50 – +26 dBm. Calibrated wavelengths: 850, 980, 1300, 1310, 1490, 1550, 1625, 1650 nm. Power source: 3 × 1.5 V battery. Box contents: 1.5 V batteries, English user manual, special case.
| Measurement Range (dBm) | −50 – +26 |
|---|---|
| Wavelength Range (nm) | 800–1700 |
| Calibrated Wavelengths (nm) | 850, 980, 1300, 1310, 1490, 1550, 1625, 1650 |
| Uncertainty | ±%5 |
| Resolution | doğrusal: %0,1, logaritmik: 0,01 dBm |
| Detector Type | InGaAs |
| Connector | üniversal FC / SC / ST konnektör (FC standart, SC ve ST adaptörü opsiyonel) |
| Low Battery Indication | yaklaşık 3,3 V'ta uyarı, yaklaşık 3 V'ta otomatik kapanma |
| Auto Power Off | 10 |
| Certifications | CE, IP65,RoHS |
| Drop Resistance | 2 |
| Operating Temperature | 0 °C – 40 °C |
| Storage Temperature | −10 °C – 50 °C |
| Power Source | 3 × 1,5 V pil |
| Battery Life | ≥60 |
| Product Dimensions | 189 mm × 87 mm × 45 mm |
| Gram | 286 |
| Standard Accessories | 1,5 V piller, İngilizce kullanım kılavuzu, özel kılıf |
