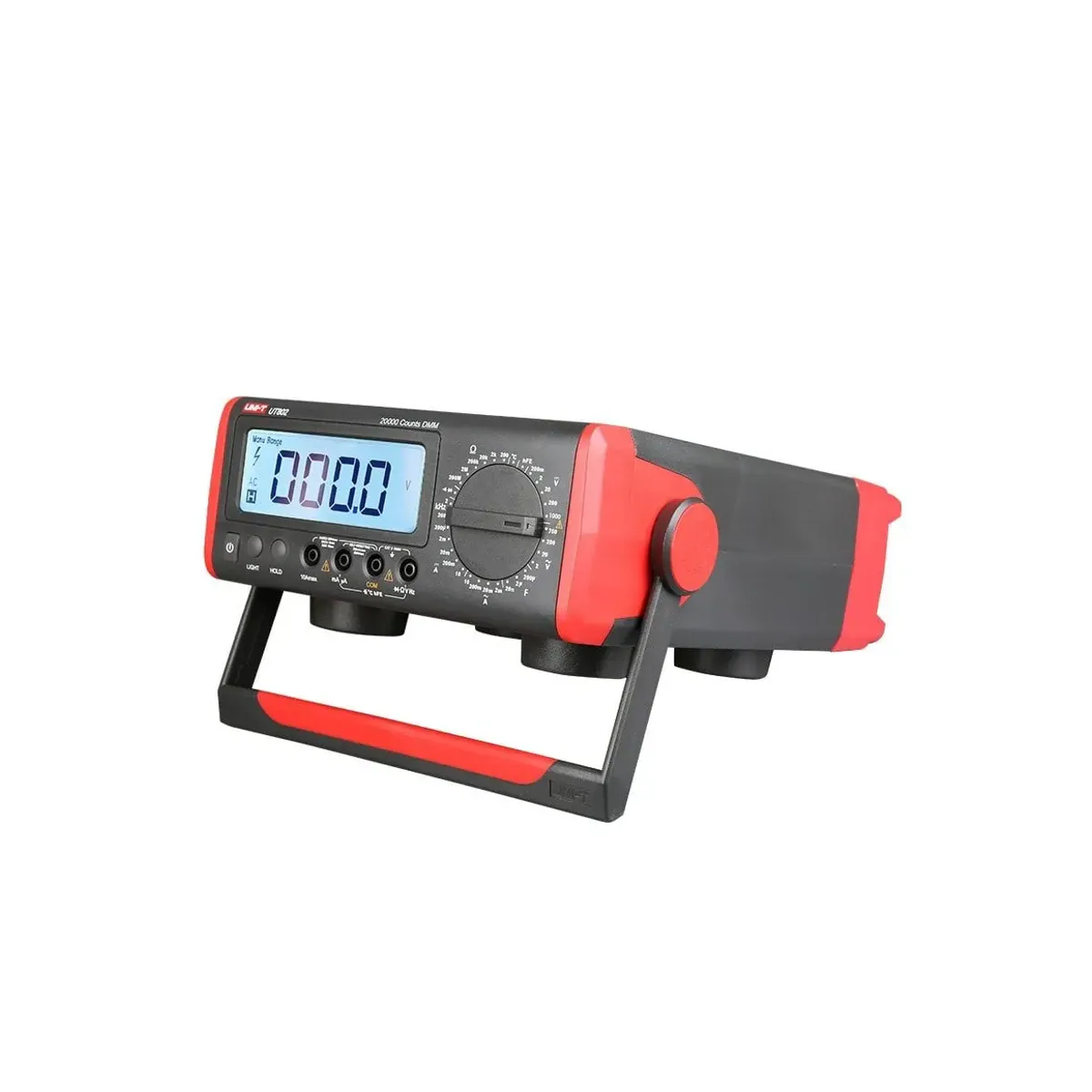

Unit UT802 Desktop Digital Multimeter
- Brand: Unit
- SKU: UT802
- MPN: UT802
- Price: 7765.89 TRY + VAT · incl. VAT 9319.07 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT802 is a benchtop digital multimeter with 19,999 counts (4½ digits) and manual ranging, manufactured by UNI-T. Measures 1000 V DC voltage, AC voltage, AC/DC current up to 10 A, resistance, capacitance, frequency and temperature with a K-type thermocouple; performs diode, continuity and transistor hFE tests. It has a large-character, backlit LCD display and a data hold function. Operates from an external AC adapter or 6 1.5 V R14 batteries; rated for IEC 61010 CAT II 1000 V safety class.
| Display Count | 19.999 (4½ hane) |
|---|---|
| True RMS | Var (AC gerilim) |
| Range Selection | Manuel |
| DC Voltage Measurement | 200 mV · ±(%0,1+5); 2 V / 20 V / 200 V · ±(%0,1+3); 1000 V · ±(%0,2+5) |
| AC Voltage Measurement | 2 V · ±(%0,5+20); 20 V / 200 V / 1000 V · ±(%0,8+40) (45–400 Hz; giriş empedansı yaklaşık 2 MΩ) |
| DC Current Measurement | 200 µA / 2 mA / 20 mA / 200 mA · ±(%0,5+20); 10 A · ±(%1,5+40) |
| AC Current Measurement | 2 mA / 20 mA / 200 mA · ±(%0,8+40); 10 A · ±(%2,0+40) (45–400 Hz) |
| Resistance Measurement | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ · ±(%0,5+10); 200 MΩ · ±(%5+40) (100 MΩ üzeri referans) |
| Capacitance Measurement | 20 nF / 2 µF · ±(%4+10); 200 µF · ±(%5+10) (40 µF üzeri referans) |
| Frequency Measurement | 2 kHz / 200 kHz · ±(%1,2+10) |
| Temperature Measurement | −40 °C – 1000 °C · ±(%1,2+25) (0–100 °C), ±(%2,5+20) (100–1000 °C) |
| Diode Test | Var (yaklaşık 3 V açık devre gerilimi) |
| Continuity Test | Sesli (≤ 10 Ω) |
| DCV Input Impedance | Yaklaşık 10 MΩ |
| Measurement Rate | Saniyede 2–3 okuma |
| Additional Functions | Transistör hFE ölçümü, veri tutma (HOLD), arka aydınlatma, aşırı load koruması |
| Safety Category | CAT II 1000 V |
| Operating Temperature | 0–40 °C |
| Power Source | AC adaptör (AC 220 V / DC 9 V, 200 mA) veya 6 × 1,5 V R14 pil |
| Product Dimensions | 300 × 245 × 105 mm |
| Gram | Yaklaşık 1,5 kg (aksesuarsız) |
| Standard Accessories | Test kabloları (1 çift), timsah klipsler (1 çift), K tipi sıcaklık probu, çok amaçlı soket, güç adaptörü, kullanım kılavuzu |
