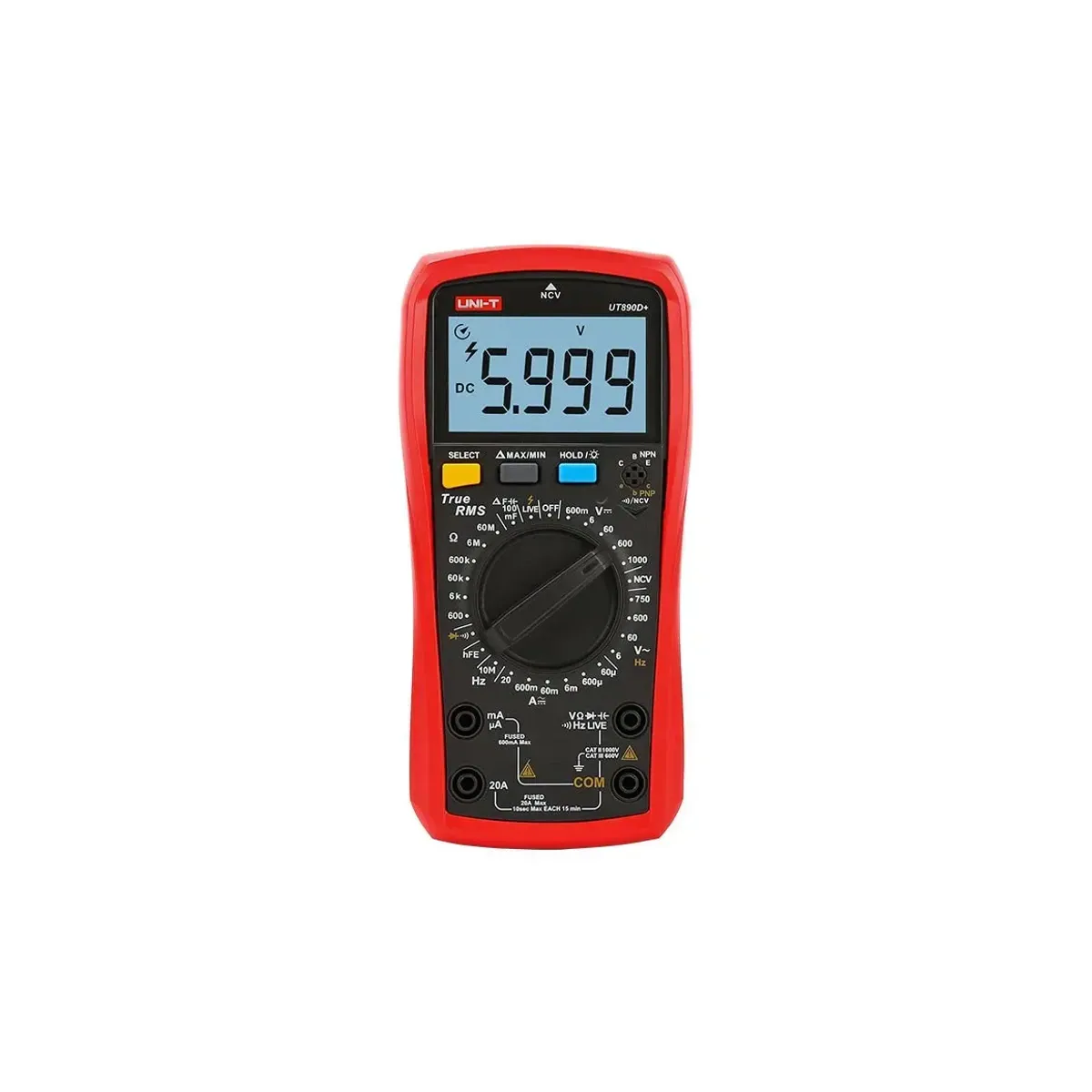

Unit UT890D+ True RMS Digital Multimeter
- Brand: Unit
- SKU: UT890D+
- MPN: UT890D+
- Price: 1142.04 TRY + VAT · incl. VAT 1370.45 TRY
- Availability: In stock
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT890D+ True RMS Digital Multimeter is a digital multimeter model from the UNI-T UT890 series. It has a 6000-count display and performs True RMS measurement. Measurement functions: DC voltage (1000 V), AC voltage (750 V), DC current (20 A), AC current (20 A), resistance (60 MΩ), capacitance (100.0 mF), frequency (9.999 Hz – 9.999 MHz), voltage frequency (10 Hz – 10 kHz). Other features: NCV non-contact voltage detection, transistor (hFE) test, diode test, audible continuity test, live/neutral wire test, blown fuse warning, audible-visual alert for NCV and continuity, high voltage warning (1000 Vrms), AC/DC current mode memory, overcurrent alarm (≥20 A), low battery indicator (≤2.5 V), data hold, relative (REL) measurement, MAX/MIN (V , A), auto power off (15 min), backlight (30 s). Safety category CAT II 1000 V / CAT III 600 V. Power source: 2 × 1.5 V battery.
| AC Current Measurement | 60 µA / 600 µA / 6 mA / 60 mA / 600 mA / 20 A · ±(%1+12) |
|---|---|
| AC Voltage Frequency Measurement | 10 Hz – 10 kHz · ±(%0,1+5) |
| AC Voltage Measurement | 6 V / 60 V / 600 V / 750 V · ±(%0,8+3) |
| Current Mode Memory | Available |
| Backlight | 30s |
| Gram | 346 g |
| Relative Measurement | Available |
| DC Current Measurement | 60 µA / 600 µA / 6 mA / 60 mA / 600 mA / 20 A · ±(%0,8+8) |
| DC Voltage Measurement | 600 mV / 6 V / 60 V / 600 V / 1000 V · ±(%0,5+2) |
| Resistance Measurement | 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ · ±(%0,8+3) |
| Diode Test | Available |
| Low Battery Indication | ≤2.5V |
| Additional Functions | NCV temassız gerilim algılama, transistör (hFE) testi, diyot testi, sesli süreklilik testi, faz/nötr hat testi, sigorta atma uyarısı, NCV ve süreklilikte sesli-ışıklı uyarı, yüksek gerilim uyarısı (1000 Vrms), AC/DC akım modu hafızası, aşırı akım alarmı (≥20 A), düşük pil göstergesi (≤2,5 V), veri tutma, bağıl (REL) ölçüm, MAX/MIN (V , A), otomatik kapanma (15 min), arka ışık (30 s) |
| Display Count | 6000 |
| Phase Detection | Available |
| Frequency Measurement | 9,999 Hz – 9,999 MHz · ±(%1,0+5) |
| Safety Category | CAT II 1000 V / CAT III 600 V |
| Power Source | 2 × 1,5 V pil |
| Range Selection | Manuel |
| Capacitance Measurement | 6,000 nF / 60,00 nF / 600,0 nF / 6,000 µF / 60,00 µF / 600,0 µF / 6,000 mF / 60,00 mF / 100,0 mF · ±(%3+10) |
| MIN/MAX | V 、A |
| NCV Non-Contact Voltage Detection | Available |
| NCV and Continuity Audible/Visual Indicator | Available |
| Auto Power Off | 15Min |
| Fuse Blown Alarm | Available |
| Continuity Test | Available |
| Transistor hFE Measurement | Available |
| True RMS | Available |
| Data Hold | Available |
| High Current Alarm | ≥20A |
| Operating Temperature | 0 °C – 40 °C |
| Product Dimensions | 183 mm × 88 mm × 56 mm |
