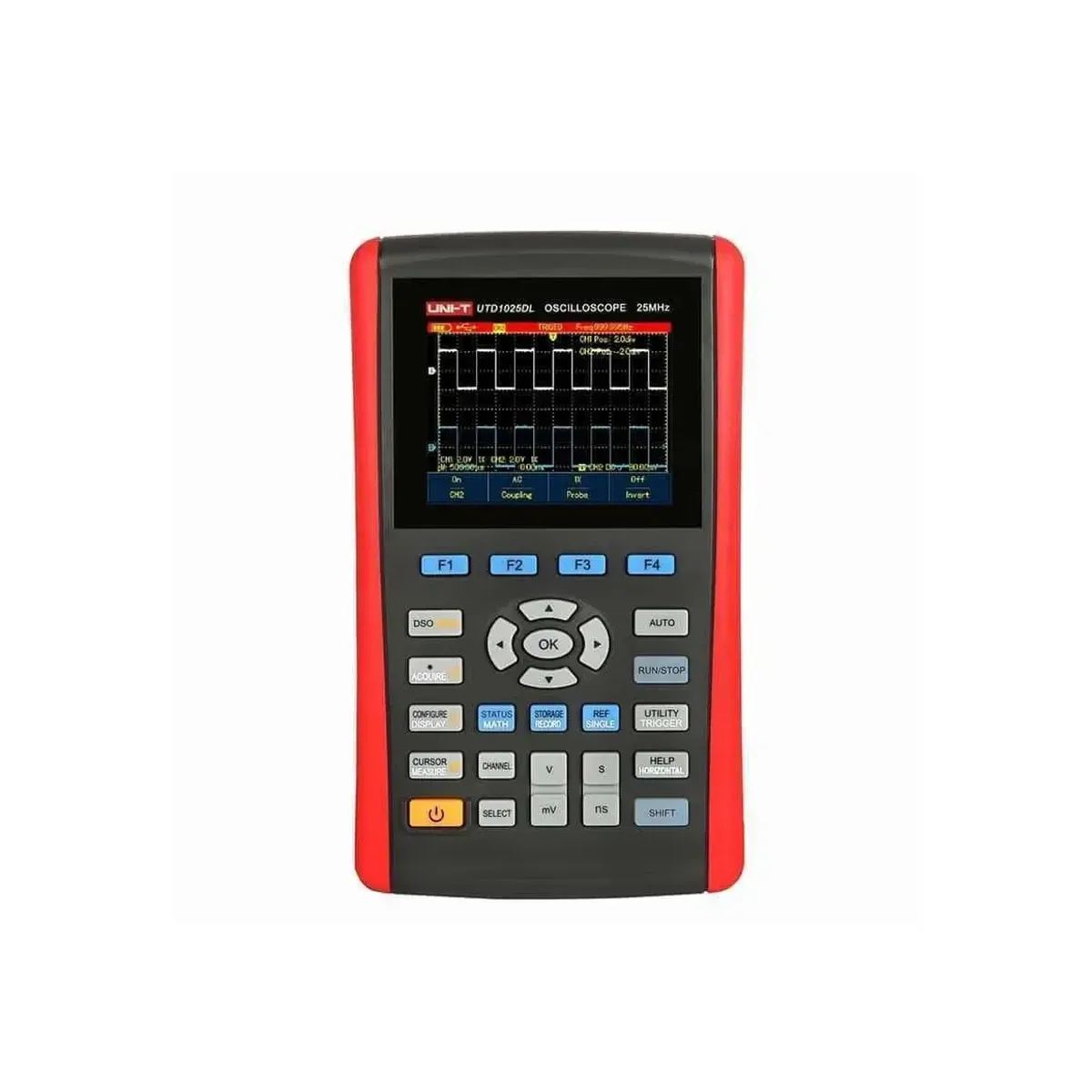

Unit UTD1025DL 25 MHz Handheld Digital Oscilloscope
- Brand: Unit
- SKU: UTD1025DL
- MPN: UTD1025DL
- Price: 27409.01 TRY + VAT · incl. VAT 32890.81 TRY
- Availability: Made to order
- Oscilloscopes
- Selection guide: Oscilloscopes Selection Guide: Technical Criteria & Application Standards
Unit UTD1025DL is a handheld digital oscilloscope from the UNI-T UTD1000L series that combines oscilloscope and multimeter functions in a single device. Offers 25 MHz bandwidth, 2 channels and 250 MS/s sampling rate; it has a 3.5 inch 320 × 240 TFT display. In multimeter mode, it measures AC/DC voltage up to 400 V, resistance, capacitance, diode and continuity; current is measured with the supplied current modules. Automatic adjustment is done with a single button, and 22 parameters are measured automatically. Runs about 6 hours on a 7.4 V rechargeable lithium battery.
| Bandwidth | 25 MHz |
|---|---|
| Analog Channels | 2 |
| Sampling Rate | 250 MS/s |
| Memory Depth | 12 K |
| Rise Time | ≤ 14 ns |
| Vertical Resolution | 8 bit |
| Vertical Scale | 5 mV/div – 20 V/div |
| Time Base | 10 ns/div – 50 s/div |
| Maximum Input Voltage | 300 V (DC + AC tepe, 1 MΩ) |
| DC Voltage Measurement | 400 mV – 400 V · ±(%1+5) |
| AC Voltage Measurement | 400 mV – 400 V (40–400 Hz) · ±(%1,2+5) |
| Current Measurement | en fazla 4 A AC/DC (UT-M10 mA ve UT-M04 4 A akım modülleriyle) |
| Resistance Measurement | 400 Ω – 40 MΩ · ±(%1,2+5) / ±(%1,5+5) |
| Capacitance Measurement | 51,2 nF – 51,2 µF · ±(%3+5) |
| Additional Functions | Diyot testi, sesli süreklilik testi, matematik ve FFT, 22 otomatik ölçüm |
| IP Rating | IP2X |
| Power Source | 7,4 V 3600 mAh şarj edilebilir lityum batarya; 9 V DC adaptör |
| Battery Life | 6 saat |
| Display Size | 3,5 inç TFT, 320 × 240 |
| Product Dimensions | 199 × 118 × 49 mm |
| Gram | 0.9 kg |
| Standard Accessories | USB kablosu, UT-M04 4 A akım bölücü modülü, UT-M10 mA akım modülü |
