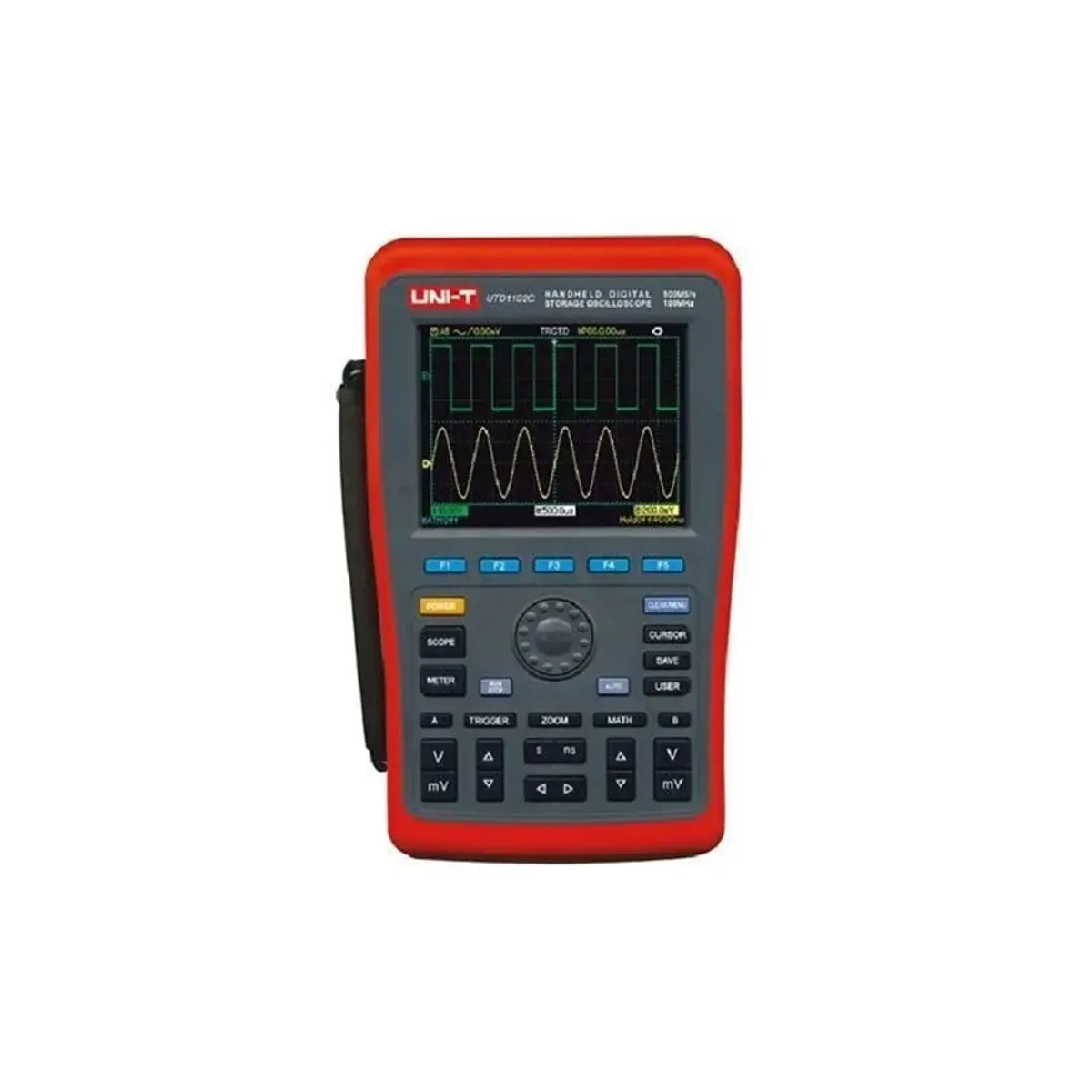

Unit UTD1202C 200 MHz Handheld Digital Oscilloscope
- Brand: Unit
- SKU: UTD1202C
- MPN: UTD1202C
- Price: 52533.93 TRY + VAT · incl. VAT 63040.72 TRY
- Availability: Made to order
- Oscilloscopes
- Selection guide: Oscilloscopes Selection Guide: Technical Criteria & Application Standards
Unit UTD1202C is a handheld digital oscilloscope from the UNI-T UTD1000C series that combines an oscilloscope and a multimeter in a single device. Offers 200 MHz bandwidth, 2 analog channels, 1 GS/s real-time sampling rate and 7.5 kpts memory depth. In multimeter mode, it measures 1000 V DC and 700 V AC voltage, AC/DC current up to 6 A, 60 MΩ resistance and capacitance. Automatically measures 27 waveform parameters; can record and replay the waveform, and can switch to a single-color display mode for outdoor readability. Features a 5.7-inch 320 × 240 TFT display; it runs on an internal 7.4 V lithium battery or a DC adapter.
| Bandwidth | 200 MHz |
|---|---|
| Analog Channels | 2 |
| Sampling Rate | 1 GS/s |
| Memory Depth | 7,5 kpts |
| Rise Time | ≤ 1,8 ns |
| Vertical Scale | 5 mV/div – 50 V/div |
| Time Base | 2 ns/div – 50 s/div |
| Range Selection | Otomatik |
| DC Voltage Measurement | 600 mV / 6 V / 60 V / 600 V / 1000 V · ±(%1+5) |
| AC Voltage Measurement | 600 mV / 6 V / 60 V / 600 V / 700 V (45–400 Hz) · ±(%1,2+5) (< 200 Hz), ±(%1,5+5) (≥ 200 Hz) |
| DC Current Measurement | 6 mA / 60 mA / 600 mA · ±(%1,2+5); 6 A · ±(%1,5+5) |
| AC Current Measurement | 6 mA / 60 mA / 600 mA · ±(%2+5); 6 A · ±(%2,5+5) (45–400 Hz) |
| Resistance Measurement | 6 kΩ / 60 kΩ / 600 kΩ · ±(%1,2+5); 600 Ω / 6 MΩ / 60 MΩ · ±(%1,5+5) |
| Capacitance Measurement | 60 nF – 600 µF · ±(%4+5); 6 nF ve 6 mF · ±(%5+10) |
| Additional Functions | 27 otomatik ölçüm, dalga formu kaydı ve tekrar oynatma, pencere genişletme, otomatik ölçekleme, tek renk ekran modu |
| Interfaces | USB Host, USB OTG (opsiyonel) |
| Power Source | 7,4 V 4400 mAh Li-ion batarya; DC adaptör (100–240 V giriş, 9 V/4 A çıkış) |
| Display Size | 5,7 inç TFT LCD, 320 × 240 |
| Product Dimensions | 268 × 168 × 60 mm |
| Gram | 1.8 kg |
| Standard Accessories | Güç kablosu, 2 × pasif prob (1×/10×), UT-M03 (4 mA–600 mA) ve UT-M04 (4 A/6 A) akım dönüştürücüleri, DC adaptör, multimetre test kabloları |
