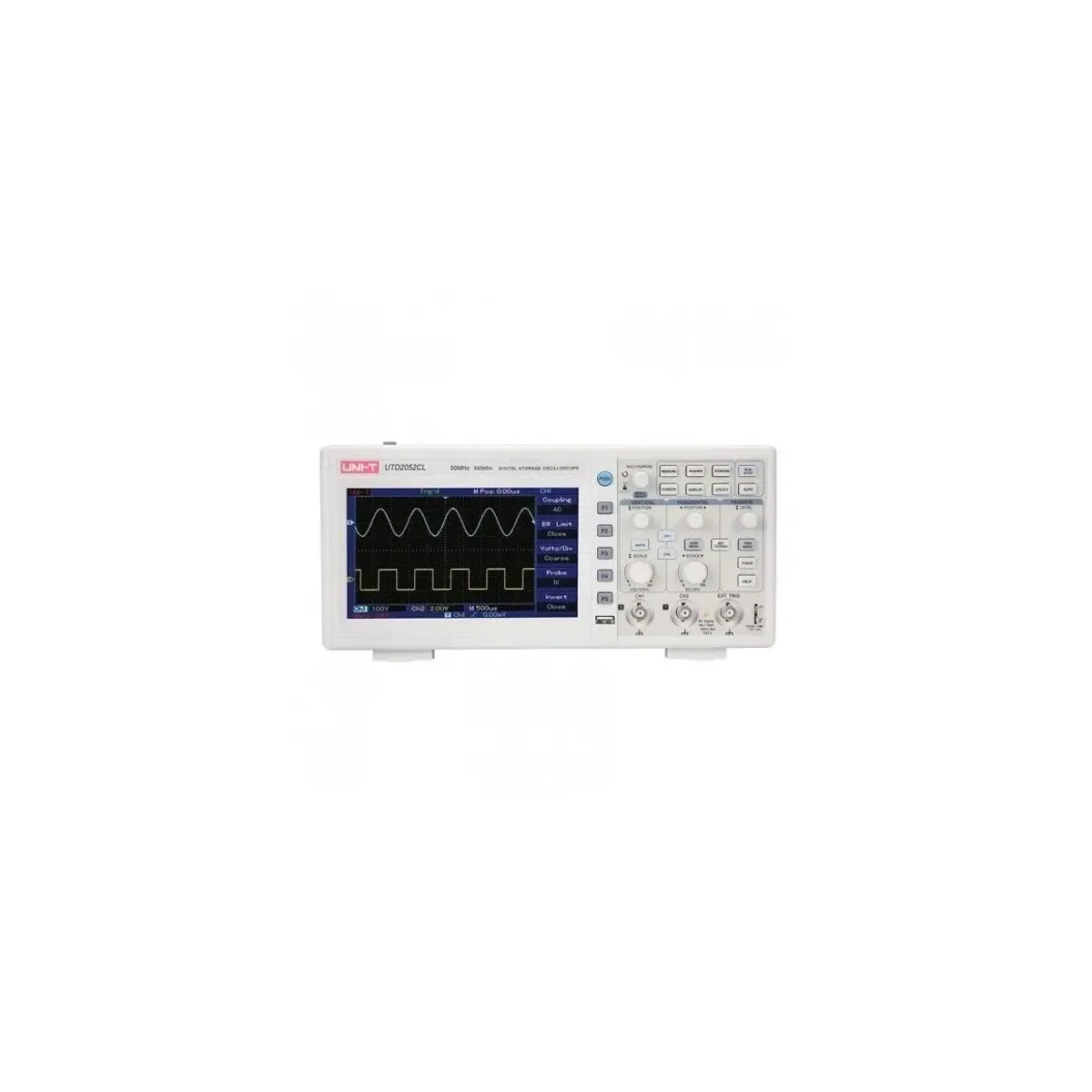

Unit UTD2052CL+ 50MHz Dual Channel Benchtop Oscilloscope
- Brand: Unit
- SKU: UTD2052CL+
- MPN: UTD2052CL+
- Price: 15988.59 TRY + VAT · incl. VAT 19186.31 TRY
- Availability: Made to order
- Oscilloscopes
- Selection guide: Oscilloscopes Selection Guide: Technical Criteria & Application Standards
Unit UTD2052CL+ is a 2-channel benchtop digital storage oscilloscope with 50 MHz bandwidth from the UNI-T UTD2000CL+ series. Offers 500 MS/s real-time sampling rate, 64 kpts memory depth and a waveform capture rate of 5,000 per second. Automatically measures 34 waveform parameters; edge, pulse width, slope, video and alternate triggering are available. Features a 7-inch 800 × 480 TFT display, USB Host/Device, external trigger and Pass/Fail interfaces; customizable automatic adjustment (Autoset) makes educational use easier. It is CE and cETLus certified.
| Bandwidth | 50 MHz |
|---|---|
| Analog Channels | 2 |
| Sampling Rate | 500 MS/s gerçek zamanlı, 25 GS/s eşdeğer |
| Memory Depth | 64 kpts (tek kanal), 32 kpts (çift kanal) |
| Rise Time | 7 ns (tipik) |
| Waveform Capture Rate | 5.000 wfms/s |
| Vertical Resolution | 8 bit |
| Vertical Scale | 1 mV/div – 20 V/div |
| Time Base | 2 ns/div – 50 s/div |
| Maximum Input Voltage | 400 Vpk, geçici 1000 Vpk |
| Trigger Types | kenar, darbe genişliği, eğim, video, alternatif |
| Additional Functions | 34 otomatik ölçüm, 6 haneli tetik frekans sayacı, pencere genişletme (ZOOM), özelleştirilebilir otomatik ayar (Autoset) |
| Interfaces | USB Host, USB Device, EXT Trig, Pass/Fail; opsiyonel LAN ve multimetre modülü (UT-M12) |
| Certifications | CE, cETLus |
| Supply Voltage | 100–240 V AC, 50/60 Hz, en fazla 100 VA |
| Display Size | 7 inç TFT, 800 × 480 |
| Product Dimensions | 306 × 138 × 124 mm |
| Gram | 2.5 kg |
| Standard Accessories | 2 × UT-P03 pasif prob (1×/10×, 60 MHz), güç kablosu, UT-D14 USB kablosu |
