Unit UPO2104E 100MHz Four-Channel Phosphor Display Benchtop Oscilloscope
- Brand: Unit
- SKU: UPO2104E
- MPN: UPO2104E
- Price: 34261.26 TRY + VAT · incl. VAT 41113.51 TRY
- Availability: Made to order
- Oscilloscopes
- Selection guide: Oscilloscopes Selection Guide: Technical Criteria & Application Standards

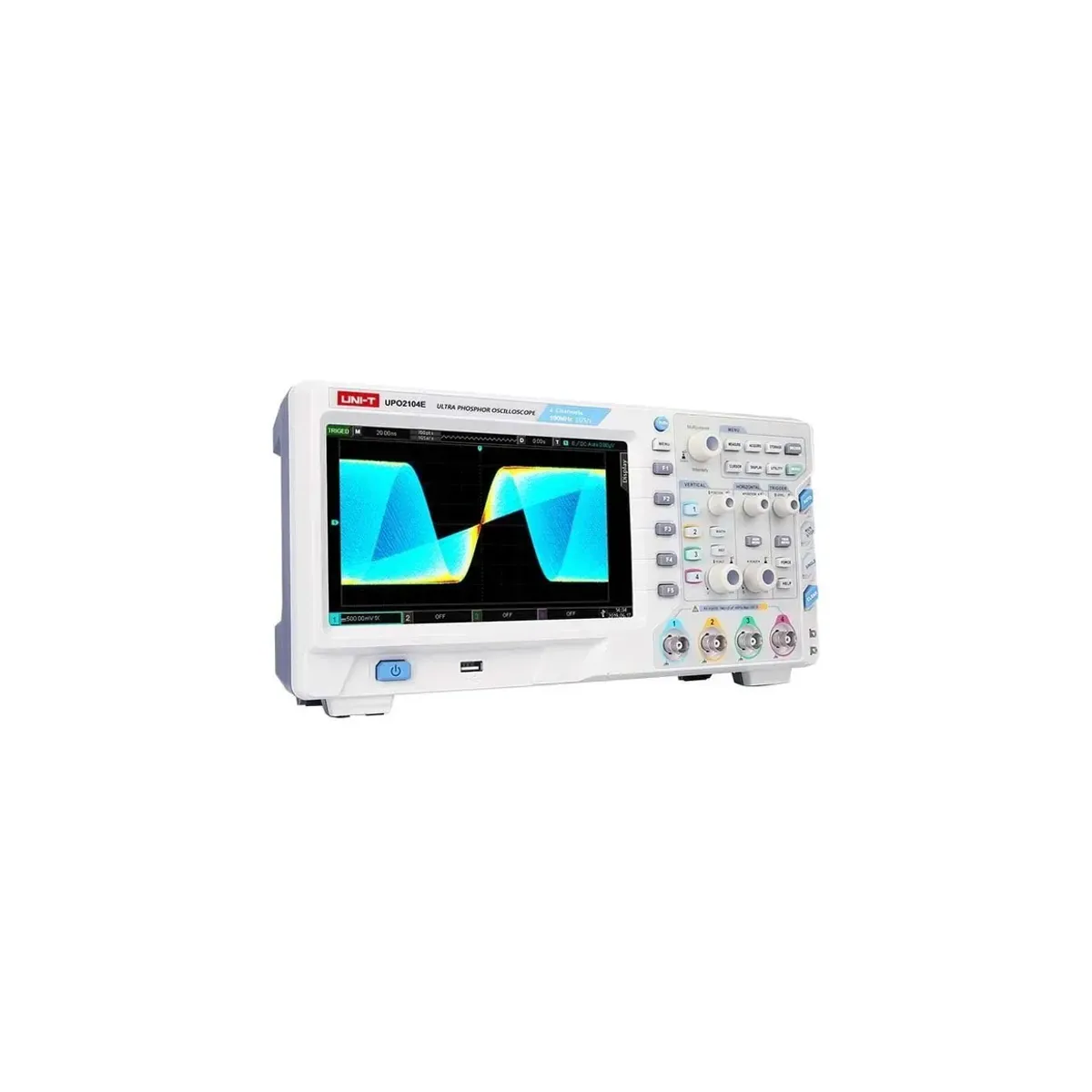

Unit UPO2104E is a 4-channel Ultra Phosphor digital oscilloscope with 100 MHz bandwidth from the UNI-T UPO2000E series. Offers a 1 GS/s sampling rate on a single channel, a memory depth of up to 56 Mpts and a waveform capture rate of 80,000 per second. 256 gray-level display, an independently adjustable time base for each channel and hardware-based recording of up to 65,000 waveforms are available. RS232 decodes I2C and SPI protocols; automatically measures 34 waveform parameters. Features a 8-inch 800 × 480 TFT display with USB Host, USB Device, LAN and AUX interfaces. The manufacturer specifies communication, semiconductor, industrial and automotive electronics, field maintenance, R&D and education as areas of use.
| Bandwidth | 100 MHz |
|---|---|
| Analog Channels | 4 |
| Sampling Rate | 1 GS/s (tek kanal), 500 MS/s (iki kanal), 250 MS/s (dört kanal) |
| Memory Depth | 56 Mpts'ye kadar (28 kpts / 280 kpts / 2,8 Mpts / 28 Mpts / 56 Mpts) |
| Rise Time | ≤ 3,5 ns (tipik) |
| Waveform Capture Rate | 80.000 wfms/s |
| Vertical Resolution | 8 bit |
| Vertical Scale | 1 mV/div – 20 V/div |
| Time Base | 5 ns/div – 50 s/div |
| Maximum Input Voltage | CAT I 300 Vrms, CAT II 100 Vrms, geçici 1000 Vpk |
| Serial Bus Trigger/Decode | RS232, I2C, SPI |
| Interfaces | USB Host, USB Device, LAN, EXT Trig, AUX Out |
| Supply Voltage | 100–240 V AC, 45–440 Hz |
| Display Size | 8 inç TFT, 800 × 480 |
| Product Dimensions | 336 × 164 × 108 mm |
| Gram | 3.5 kg |
