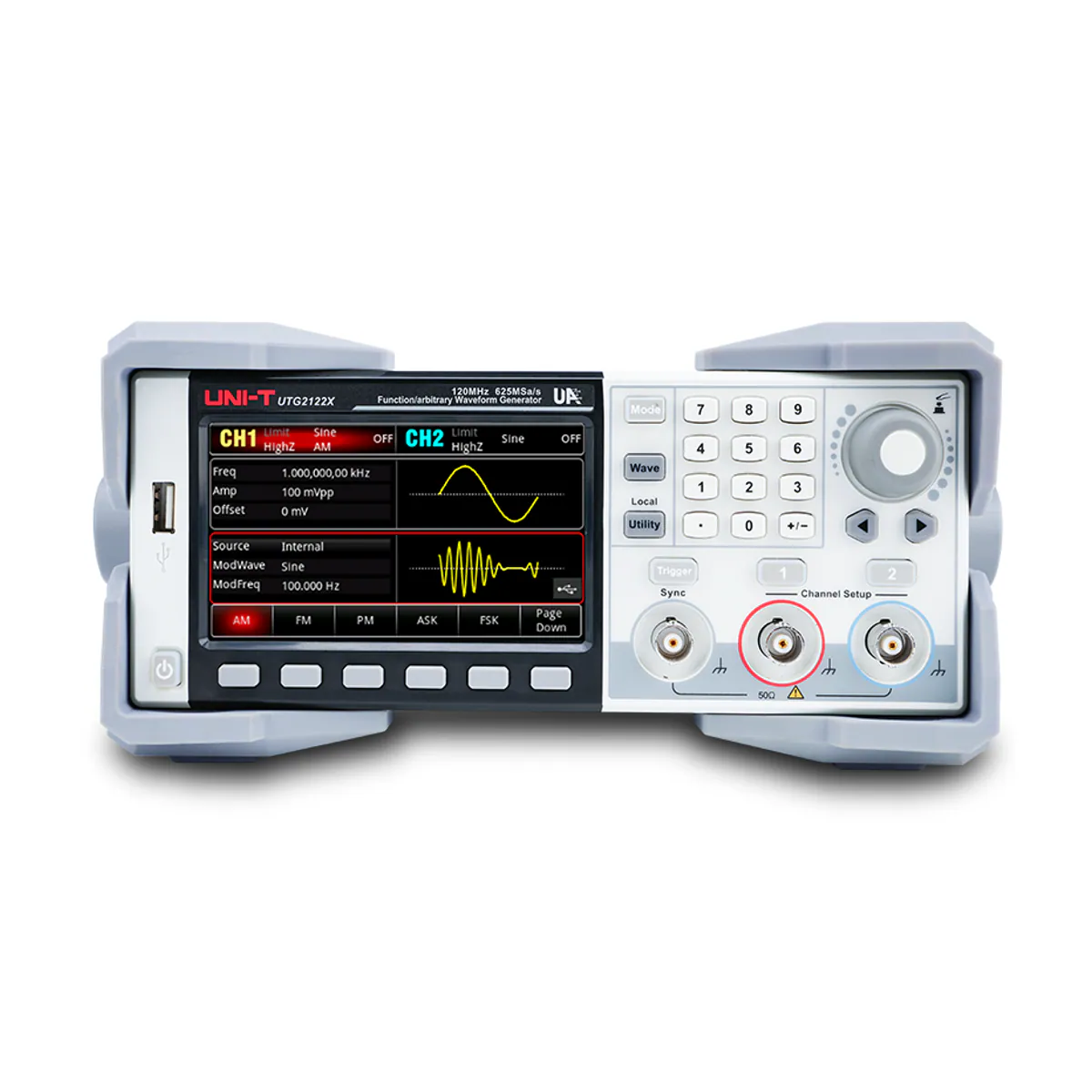

Unit UTG2062X 60MHz 2-Channel 16-Bit Touchscreen Function/Arbitrary Waveform Generator
- Brand: Unit
- SKU: UTG2062X
- MPN: UTG2062X
- Model: 60 MHz (sinüs)
- Price: 31977.18 TRY + VAT · incl. VAT 38372.62 TRY
- Availability: Made to order
- Function and Signal Generators
- Selection guide: Electronic Measuring Instruments Selection Guide
Unit UTG2062X is a UTG2000X series two-channel function/arbitrary waveform generator with a 625 MSa/s sample rate that outputs sine waves up to 60 MHz and square waves up to 30 MHz. Technical values: two channels; sine 1 µHz to 60 MHz, square and pulse 1 µHz to 30 MHz, ramp 1 µHz to 3 MHz; sample rate 625 MSa/s (1.25 GSa/s with 2× interpolation); vertical resolution 16-bit; arbitrary waveform length 8 pts to 32 Mpts (64 Mpts with single-channel output); square wave rise/fall time < 7 ns (typical); output amplitude 1 mVpp to 10 Vpp into 50 Ω (up to 20 MHz); display 4.3-inch capacitive touch (480 × 272); dimensions 215 × 103 × 316 mm, weight 2.5 kg. It offers 10 basic waveforms (sine, square, ramp, pulse, noise, DC, arbitrary, harmonic, PRBS and expression), 15 modulation types, linear, logarithmic and step sweep, burst, channel copy, tracking and summing functions and a 100 mHz to 200 MHz frequency counter, and supports SCPI commands. It is used as a signal source in teaching, test and development laboratories.
| Channel Count | 2 |
|---|---|
| Maximum Frequency | 60 MHz (sinüs) |
| Sampling Rate | 625 MSa/s (2 kat interpolasyonla 1.25 GSa/s) |
| Vertical Resolution | 16 bit |
| Waveforms | Sinüs, kare, rampa, darbe, gürültü, DC, keyfi dalga, harmonik, PRBS, ifade (expression) |
| Operating Modes | Sürekli, modülasyon, frekans tarama (sweep), burst (darbe katarı), sayaç |
| Modulation Types | AM, FM, PM, DSB-AM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, SUM, QAM, PWM |
| Sine Frequency Range | 1 µHz – 60 MHz |
| Square/Pulse Frequency Range | 1 µHz – 30 MHz |
| Ramp Frequency Range | 1 µHz – 3 MHz |
| Harmonic Frequency Range | 1 µHz – 30 MHz (harmonik mertebe 2 – 16; tek, çift, tümü, kullanıcı tanımlı) |
| Noise Bandwidth | 1 MHz – 60 MHz |
| Frequency Resolution | 1 µHz |
| Frequency Accuracy | Referans 10 MHz; başlangıç doğruluğu ±0.5 ppm (25 °C); sıcaklık kararlılığı ±0.5 ppm (0 – 40 °C); ilk yıl yaşlanma ±1 ppm |
| Arbitrary Waveform | 1 µHz – 30 MHz (DDS); 8 kpts (normal) veya 8 pts – 32 Mpts (tek kanal çıkışta 64 Mpts) dalga uzunluğu; 16 bit; 200 dalgalık kalıcı hafıza |
| Rise/Fall Time | Kare dalga < 7 ns (tipik, 1 Vpp, 50 Ω); darbe kenar süresi 7 ns – 10 s |
| Output Amplitude | 50 Ω: ≤ 20 MHz'de 1 mVpp – 10 Vpp, ≤ 60 MHz'de 1 mVpp – 5 Vpp, ≤ 120 MHz'de 1 mVpp – 2 Vpp; yüksek empedans: ≤ 20 MHz'de 2 mVpp – 20 Vpp, ≤ 60 MHz'de 2 mVpp – 10 Vpp, ≤ 120 MHz'de 2 mVpp – 4 Vpp |
| Output Impedance | 50 Ω (tipik) |
| DC Offset Range | ±5 V (50 Ω); ±10 V (yüksek empedans) |
| Frequency Counter | 100 mHz – 200 MHz; 7 haneli donanım frekans sayacı |
| Interfaces | USB Host, USB Device, LAN; 10 MHz harici referans girişi ve dahili referans çıkışı; senkron çıkışı; tetik girişi ve çıkışı; harici modülasyon girişi |
| Certifications | EMC: 2014/30/EU, IEC/EN 61326-1:2021, IEC/EN 61326-2-1:2021, CISPR 11 Sınıf B grup 1; güvenlik: EN 61010-1:2010+A1:2019, EN IEC 61010-2-030:2021+A11:2021, BS EN 61010-1:2010+A1:2019, BS EN IEC 61010-2-030:2021+A11:2021, UL 61010-1:2012 Ed.3, UL 61010-2-030:2018 Ed.2, CSA C22.2#61010-1:2012 Ed.3, CSA C22.2#61010-2-030:2018 Ed.2 |
| Operating Temperature | 10 – 40 °C (saklama: −20 – 60 °C) |
| Supply Voltage | 100 – 240 V AC (±%10), 50/60 Hz; 100 – 120 V AC (±%10), 400 Hz; 50 W'tan az |
| Display Size | 4.3 inç TFT LCD kapasitif dokunmatik, WVGA 480 × 272 |
| Product Dimensions | 215 × 103 × 316 mm (G × Y × U) |
| Gram | 2.5 kg |
| Standard Accessories | Güç kablosu, USB kablo (UT-D14), BNC-BNC kablo (UT-L45), BNC-kırmızı/siyah timsah klipsli kablo (UT-L02A) |
| Total Harmonic Distortion | < %0.07 (DC – 20 kHz, 1 Vpp) |
| Harmonic Distortion | Tipik (0 dBm): DC – 1 MHz −70 dBc, 1 – 10 MHz −65 dBc, 10 – 40 MHz −60 dBc, 40 – 80 MHz −55 dBc |
