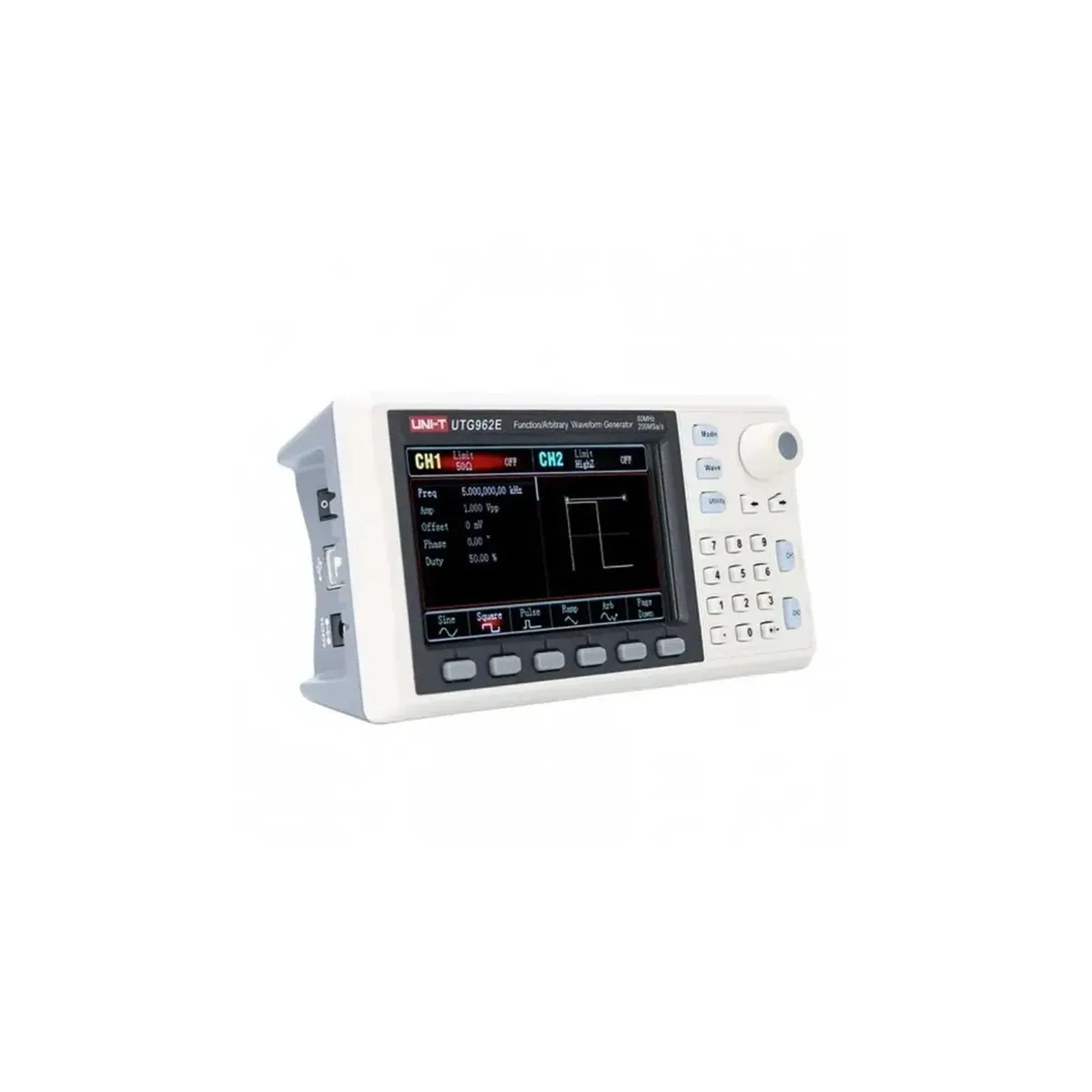

Unit UTG962E Function Waveform Signal Generator
- Brand: Unit
- SKU: UTG962E
- MPN: UTG962E
- Price: 11877.24 TRY + VAT · incl. VAT 14252.69 TRY
- Availability: Made to order
- Function and Signal Generators
- Selection guide: Electronic Measuring Instruments Selection Guide
Unit UTG962E is a 2-channel, 60 MHz compact function/arbitrary waveform generator from the UNI-T UTG900E series. With DDS technology, it generates sine, square, ramp, pulse, noise, DC and arbitrary waveforms at a 200 MSa/s sampling rate and 14-bit vertical resolution, with 1 µHz resolution. Square and pulse waves go up to 20 MHz; AM, FM, PM and FSK modulation and linear and logarithmic frequency sweeps are available. It has a 7-digit TTL-compatible frequency counter, a 4.3-inch color TFT display and a USB Device interface. The 0.33 kg housing is powered by a 5 V / 2 A adapter.
| Channel Count | 2 |
|---|---|
| Maximum Frequency | 60 MHz |
| Sampling Rate | 200 MSa/s |
| Vertical Resolution | 14 bit |
| Waveforms | Sinüs, kare, rampa, darbe, gürültü, DC, keyfi dalga |
| Operating Modes | Çıkış kapılama, sürekli, modülasyon, frekans tarama (doğrusal/logaritmik) |
| Modulation Types | AM, FM, PM, FSK |
| Square/Pulse Frequency Range | 1 µHz – 20 MHz |
| Ramp Frequency Range | 1 µHz – 400 kHz |
| Noise Bandwidth | 60 MHz (−3 dB, tipik) |
| Frequency Resolution | 1 µHz |
| Frequency Accuracy | ±50 ppm (90 gün), ±100 ppm (1 yıl), 18–28 °C |
| Arbitrary Waveform | 1 µHz – 10 MHz; 4 kpts dalga uzunluğu |
| Rise/Fall Time | Kare dalga < 16 ns (tipik, 1 kHz, 1 Vpp) |
| Output Amplitude | 1 mVpp – 10 Vpp (50 Ω, ≤ 10 MHz) |
| Output Impedance | 50 Ω (tipik) |
| DC Offset Range | ±5 V (50 Ω), ±10 V (yüksek empedans) |
| Frequency Counter | 100 mHz – 100 MHz, 7 haneli, ±51 ppm |
| Interfaces | USB Device |
| Operating Temperature | 10–40 °C |
| Supply Voltage | 5 V DC, 2 A adaptör (adaptör girişi 100–240 V, 50/60 Hz); 10 W'tan az |
| Display Size | 4,3 inç TFT LCD, 480 × 272 |
| Product Dimensions | 172 × 90 × 68 mm |
| Gram | 0.33 kg |
| Standard Accessories | Güç kablosu ve adaptör, BNC – timsah klipsli kablo, BNC kablo (1 m) |
