Unit UTG4162A Digital Function Waveform Generator
- Brand: Unit
- SKU: UTG4162A
- MPN: UTG4162A
- Price: 68522.52 TRY + VAT · incl. VAT 82227.02 TRY
- Availability: Made to order
- Function and Signal Generators
- Selection guide: Electronic Measuring Instruments Selection Guide

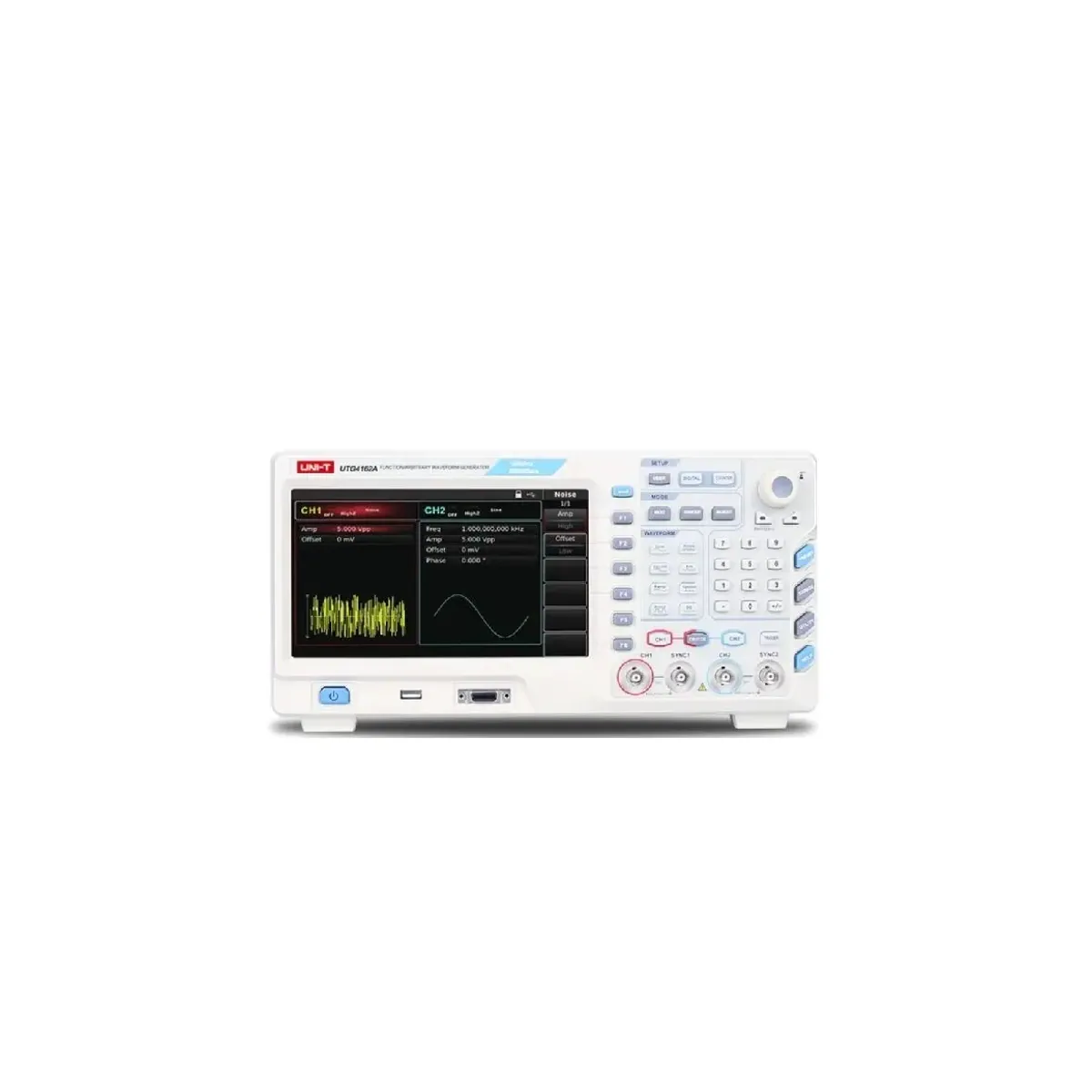

Unit UTG4162A is a 2-channel, 160 MHz function/arbitrary waveform generator from the UNI-T UTG4000A series. With DDS technology, it generates sine, square, ramp, harmonic, pulse, noise, DC and arbitrary waveforms at a 500 MSa/s sampling rate and 16-bit vertical resolution, with 1 µHz frequency resolution across the entire band. The 32 Mpts has arbitrary waveform memory depth and 7 GB of non-volatile waveform memory; on pulse waveforms it offers rise/fall time adjustable up to 50 MHz. It has AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM and QAM modulations, sweep and burst (pulse train) modes, and a frequency counter up to 800 MHz. Features a 8-inch 800 × 480 TFT display with USB Host, USB Device, LAN and 10 MHz reference input/output; CE, UKCA and cTUVus certified.
| Channel Count | 2 |
|---|---|
| Maximum Frequency | 160 MHz (sinüs) |
| Sampling Rate | 500 MSa/s |
| Vertical Resolution | 16 bit |
| Waveforms | Sinüs, kare, rampa, harmonik, darbe, gürültü, DC, keyfi dalga |
| Operating Modes | Sürekli, modülasyon, tarama (sweep), burst (darbe katarı) |
| Modulation Types | AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM |
| Sine Frequency Range | 1 µHz – 160 MHz |
| Square/Pulse Frequency Range | 1 µHz – 50 MHz |
| Ramp Frequency Range | 1 µHz – 4 MHz |
| Harmonic Frequency Range | 1 µHz – 80 MHz |
| Noise Bandwidth | 160 MHz (−3 dB) |
| Frequency Resolution | 1 µHz |
| Arbitrary Waveform | 1 µHz – 40 MHz; 8 nokta – 32 Mpts bellek derinliği; 7 GB kalıcı keyfi dalga hafızası |
| Rise/Fall Time | < 5 ns (tipik, 1 Vpp) |
| Frequency Counter | 100 mHz – 800 MHz |
| Interfaces | USB Host, USB Device, LAN, 10 MHz giriş ve çıkış, frekans sayacı girişi, FSK tetik, modülasyon girişi |
| Certifications | CE, UKCA, cTUVus |
| Supply Voltage | 100–240 V AC, 50/60 Hz |
| Display Size | 8 inç TFT LCD, 800 × 480 |
| Product Dimensions | 336 × 164 × 108 mm |
| Gram | 3.5 kg |
| Standard Accessories | Güç kablosu, UT-D14 USB kablosu, 1 çift BNC kablo (1 m) |
