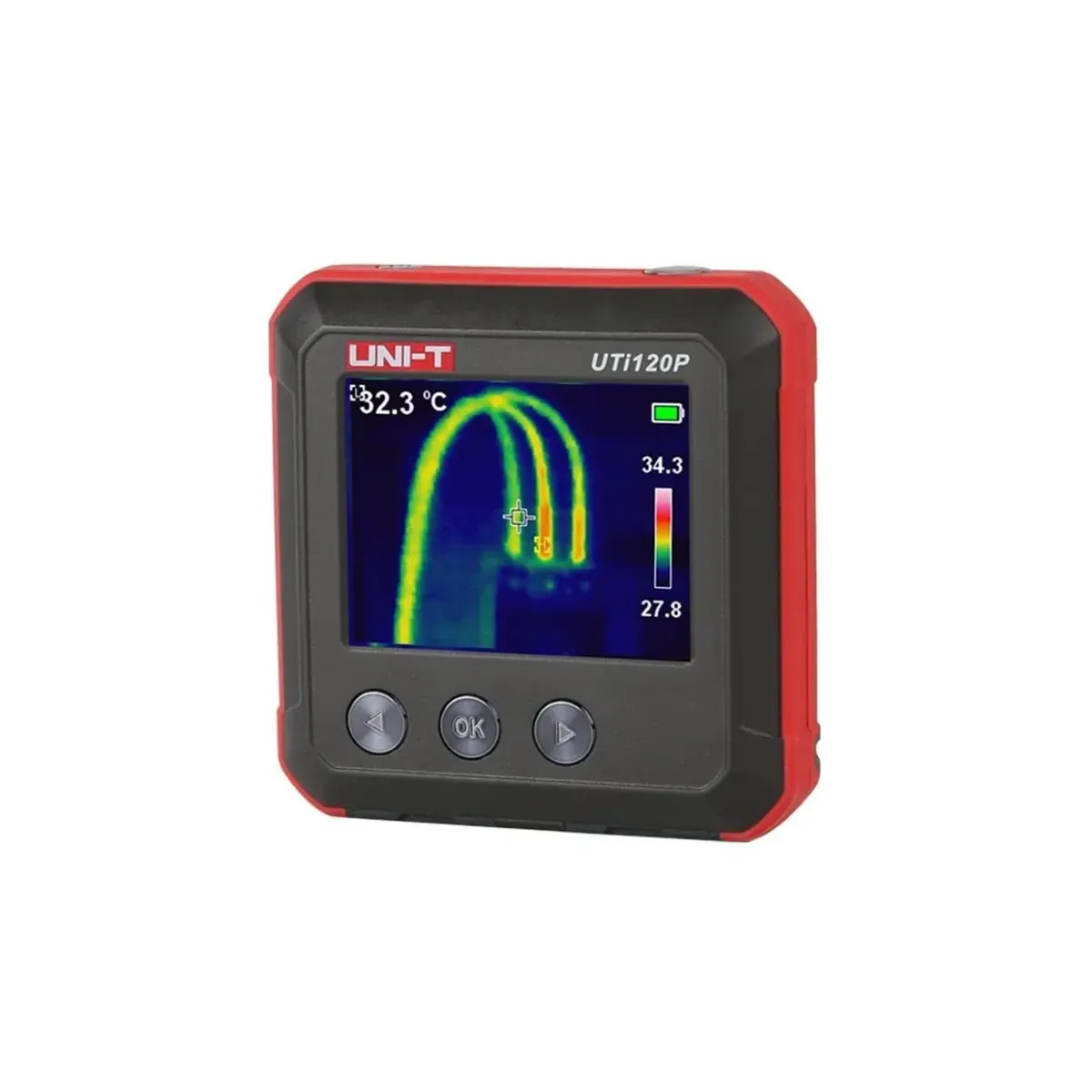

Unit UTi120P Pocket Thermal Camera
- Brand: Unit
- SKU: UTI120P
- MPN: UTI120P
- Price: 13704.50 TRY + VAT · incl. VAT 16445.40 TRY
- Availability: Made to order
- Thermal Cameras
- Selection guide: Thermal Cameras Selection Guide: Technical Criteria & Application Standards
Unit UTi120P Pocket Thermal Camera. Infrared Resolution: 120×90. Temperature Range: -20°C~400°C. Display Size: 2.4" TFT LCD (320×240). Field of View: 50°×38°. Thermal Sensitivity (NETD): ≤60mK. Spatial Resolution (IFOV): 7.3mrad. Frame Rate: ≤25Hz. Spectral Response: 8~14μm. Focus: Fixed focus. Accuracy: ±2°C or ±2%, whichever is greater. Other features: Emissivity: 0.01~1.00 adjustable (0.95 default); Power Source: Built-in Li-ion battery (3.7V 1350mAh); Battery Life: ≥3.5 hours; USB Interface: Micro USB; Drop Resistance: 1m; Storage Capacity: Up to 32GB Micro SD card; Image and Video File Format: BMP; Weight: 125g.
| Gram | 125 g |
|---|---|
| Storage Capacity | En fazla 32GB Micro SD kart |
| Accuracy | ±2°C veya ±2% hangisi büyükse |
| Drop Resistance | 1 m |
| Display Size | 2.4" TFT LCD (320×240) |
| Emissivity | 0.01~1.00 ayarlanabilir (0.95 varsayılan) |
| Image and Video File Format | BMP |
| Field of View | 50°×38° |
| Power Source | Dahili Li-ion pil (3.7V 1350mAh) |
| Frame Rate | ≤25Hz |
| Infrared Resolution | 120×90 |
| Focus | Sabit odak |
| Battery Life | ≥3.5 saat |
| Spectral Response | 8~14μm |
| Temperature Range | -20°C~400°C |
| Thermal Sensitivity (NETD) | ≤60mK |
| USB Interface | Micro USB |
| Spatial Resolution (IFOV) | 7.3mrad |
| Product Dimensions | 76mm×76mm×24mm |
