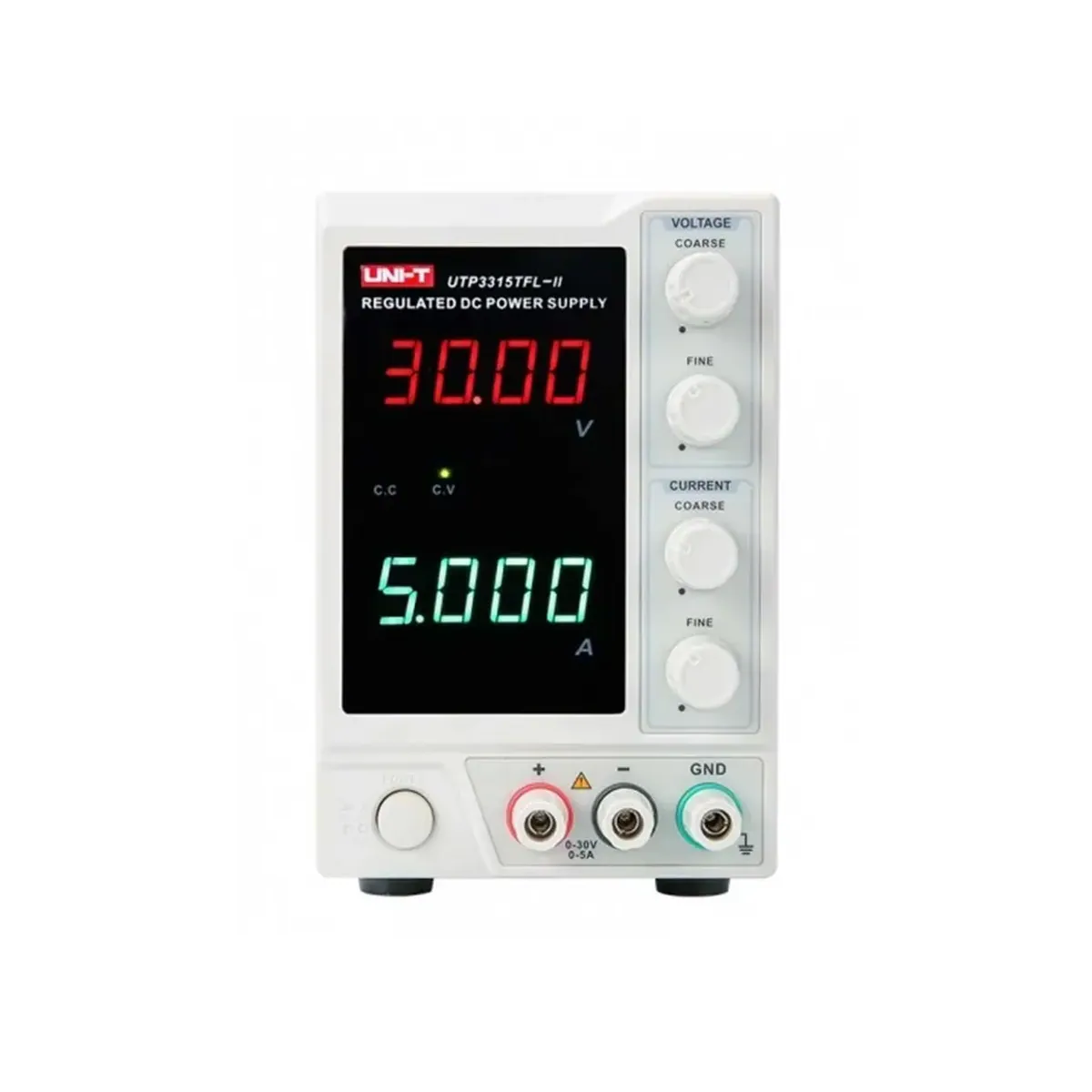

Unit Utp3315TFL-II 30V 5A Adjustable DC Power Supply
- Brand: Unit
- SKU: UTP3315TFL-II
- MPN: UTP3315TFL-II
- Price: 6852.25 TRY + VAT · incl. VAT 8222.70 TRY
- Availability: Made to order
- Laboratory Power Supplies
- Selection guide: Laboratory Power Supplies Selection Guide: Technical Criteria & Application Standards
Unit UTP3315TFL-II is a single-channel linear DC power supply from the UNI-T UTP3300TFL-II series. Delivers clean and stable output in the 0–30 V and 0–5 A range; on its 4-digit LED display, voltage and current are shown with 10 mV / 1 mA resolution. Has coarse and fine adjustment knobs for voltage and current, and constant voltage (CV) and constant current (CC) indicators. It has short-circuit, overload and reverse polarity protections. The manufacturer lists universities, technical schools, electronics production lines and household appliance repair workshops as areas of use.
| Number of Outputs | 1 |
|---|---|
| Output Voltage | 0–30 V |
| Output Current | 0–5 A |
| Load Regulation | Gerilim < %0,01 + 5 mV; akım < %0,1 + 10 mA |
| Line Regulation | Gerilim < %0,01 + 3 mV; akım < %0,1 + 3 mA |
| Output Ripple | Gerilim ≤ 2 mVrms; akım ≤ 3 mArms |
| Setting Resolution | 10 mV / 1 mA |
| Readback Resolution | 10 mV / 1 mA |
| Temperature Coefficient | Gerilim ≤ 300 ppm/°C; akım ≤ 300 ppm/°C |
| Protection Functions | Kısa devre, aşırı load ve ters polarite koruması; transformatörde kendini sıfırlayan termik sigorta |
| Additional Functions | Gerilim ve akım için kaba/ince ayar düğmeleri, sabit gerilim (CV) ve sabit akım (CC) göstergeleri, topraktan yalıtımlı çıkış |
| Operating Temperature | 0–40 °C, ≤ %85 bağıl nem |
| Supply Voltage | 110 V / 220 V AC (±%5), 50/60 Hz |
| Display | 4 haneli LED gerilim ve akım göstergesi |
| Product Dimensions | 105 × 155 × 210 mm |
| Gram | 4 kg |
| Standard Accessories | Güç kablosu, yedek sigorta, kullanım kılavuzu |
