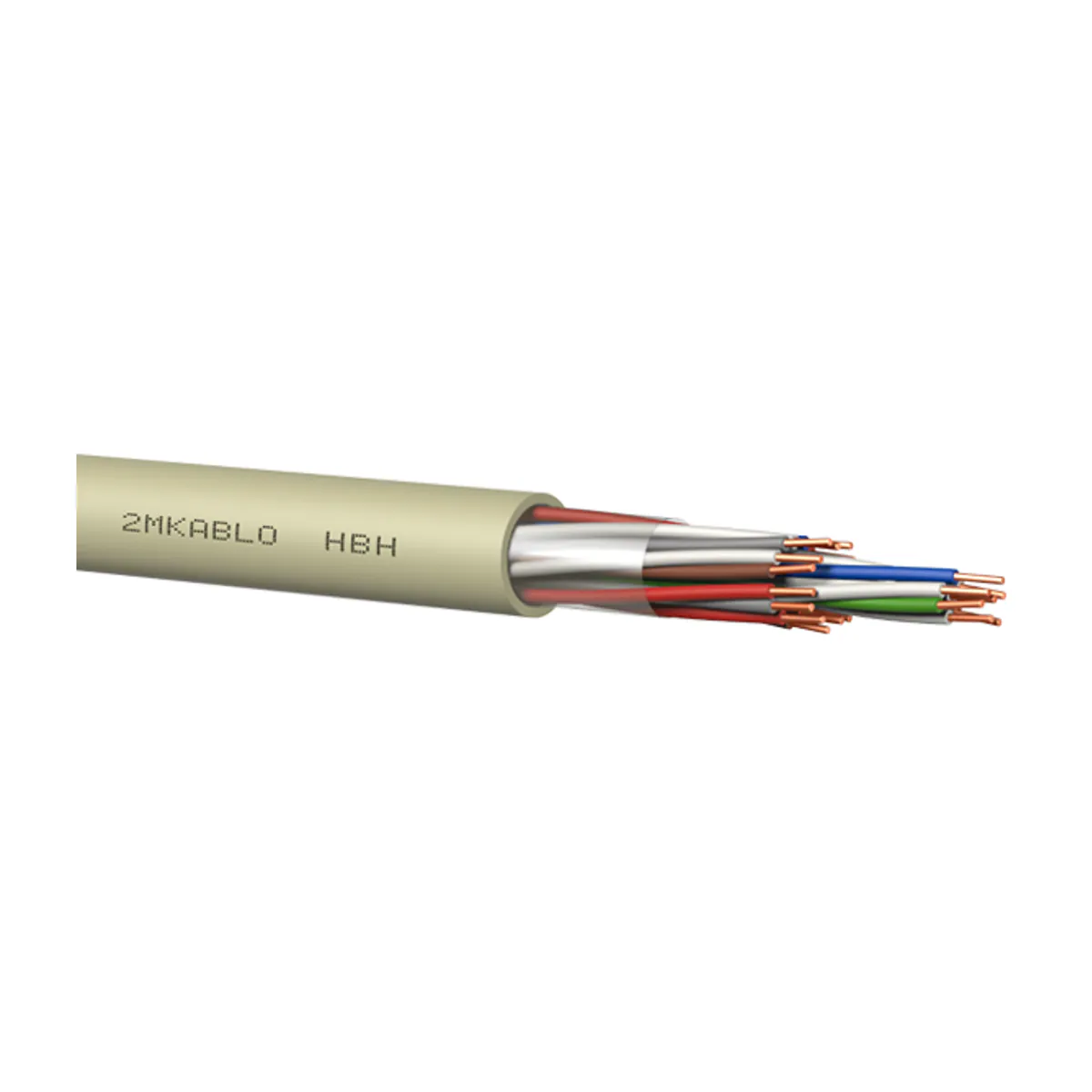

2M Kablo HBH Halogen Free HFFR 4x2x0.5 mm + 0.5 mm Gray
- Brand: 2M Kablo
- SKU: 3T00000514-1
- MPN: 3T00000514-1
- Price: 550.00 TRY + VAT · incl. VAT 660.00 TRY
- Availability: Made to order
- Telephone Cables
- Selection guide: Telephone Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
2M Kablo HBH Halogen Free HFFR 4x2x0.5 mm + 0.5 mm Gray is a product in the 2M Kablo brand's HBH halogen free indoor telephone cable product family. Key technical features: HFFR insulation and sheath; TSE K 116 / IEC 60189-2 product family; 250 V operating voltage.
| Conductor | Tavlı Mono Bakır (IEC/EN 60228) |
|---|---|
| Insulation Material | HFFR (EN 50290-2-26) |
| Core Colour Code | TSE K 116, IEC 60189-2 |
| Stranding | Çiftler ve 10'lu gruplar halinde bükülür, bağ şeridi sarılarak tanımlanır |
| Earth Core | Yalıtımlı Elektrolitik Tavlı Mono Bakır (White Üzerine Kırmızı Ring Kodlama) |
| Separator Tape | PES Bant |
| Outer Sheath Material | HFFR (EN 50290-2-27) |
| Outer Sheath Colour | RAL 7032 - Grey |
| Standards | TSE K 116, IEC 60189-2 |
| Operating Voltage | 250 V |
| Test Voltage | 1000 V |
| Conductor Resistance | ≤ 97.8 Ω/km |
| Insulation Resistance | >200 MΩ·km |
| Capacitance | Efektif Kapasite: <120 nF/km |
| Operating Temperature | -30 °C … +70 °C |
| Flame Retardance / Fire Performance | Alev Geciktirme: IEC/EN 60332-1; Duman Yoğunluğu: IEC/EN 61034-2; Halojen Asit Gaz Miktarı: IEC/EN 60754-1; Korozif Gaz Ölçümü: IEC/EN 60754-2 |
| Minimum Bending Radius | Fixed: 8 x Kablo Çapı |
| Outer Diameter | 4.8 mm (±5%) |
| Copper Weight | 17 kg/km |
