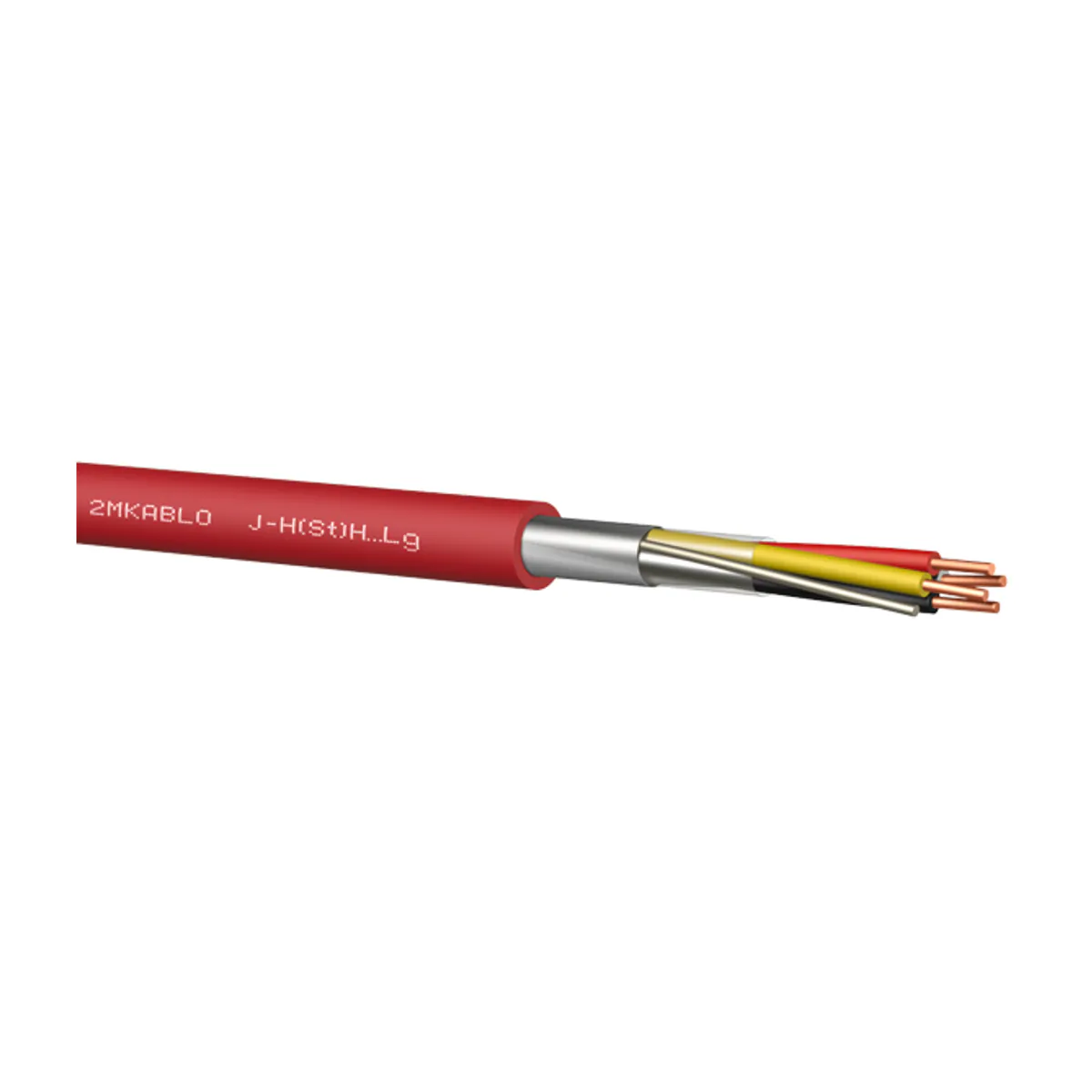

2M Kablo J-H(St)H...Lg Halogen-Free HFFR 1x2x1.5 mm2 + 0.8 mm Red
- Brand: 2M Kablo
- SKU: 3T11A050045-06A
- MPN: 3T11A050045-06A
- Price: 1045.00 TRY + VAT · incl. VAT 1254.00 TRY
- Availability: Made to order
- Fire Alarm Cables
- 2M Kablo Fire Alarm Cables
- Selection guide: Fire Alarm Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
2M Kablo J-H(St)H...Lg Halogen-Free HFFR 1x2x1.5 mm2 + 0.8 mm Red is a product in the 2M Kablo brand's J-H(St)H…Lg halogen-free fire alarm cable product family. Key technical features: HFFR insulation and sheath; Shielded fire alarm cable; 2M Kablo product family; Core cross-section: 1x2x1.5 mm2.
| Core Cross-Section | 1x2x1,5 mm² |
|---|---|
| Conductor | Tavlı Mono Bakır (IEC/EN 60228) |
| Insulation Material | HFFR (EN 50290-2-26) |
| Core Colour Code | TS 13767, VDE 0815 |
| Stranding | Damarlar çiftler halinde ve tüm çiftler bir arada bükülür (2 çift yıldız dörtlü düzeninde bükülür) |
| Separator Tape | PES Bant |
| Cable Shield | Al-PES Bant; Toprak Teli: Tek Tel Kalaylı Bakır |
| Outer Sheath Material | HFFR (EN 50290-2-27) |
| Outer Sheath Colour | RAL 3000 - Kırmızı |
| Standards | TS 13767, VDE 0815 |
| Operating Voltage | 300 V |
| Test Voltage | 800 V |
| Insulation Resistance | >100 MΩ·km |
| Capacitance | ≤ 120 nF/km (800Hz) (4 çifte kadar kapasite değerinde %20'lik bir artış olabilir) |
| Operating Temperature | -30 °C … +70 °C |
| Flame Retardance / Fire Performance | CPR Sınıfı: B2ca s1a d1 a1; Alev Geciktirme: IEC/EN 60332-1; Duman Yoğunluğu: IEC/EN 61034-2; Halojen Asit Gaz Miktarı: IEC/EN 60754-1; Korozif Gaz Ölçümü: IEC/EN 60754-2 |
| Minimum Bending Radius | Fixed: 8 x Kablo Çapı |
| Outer Diameter | 6.9 mm (±5%) |
| Copper Weight | 32 kg/km |
