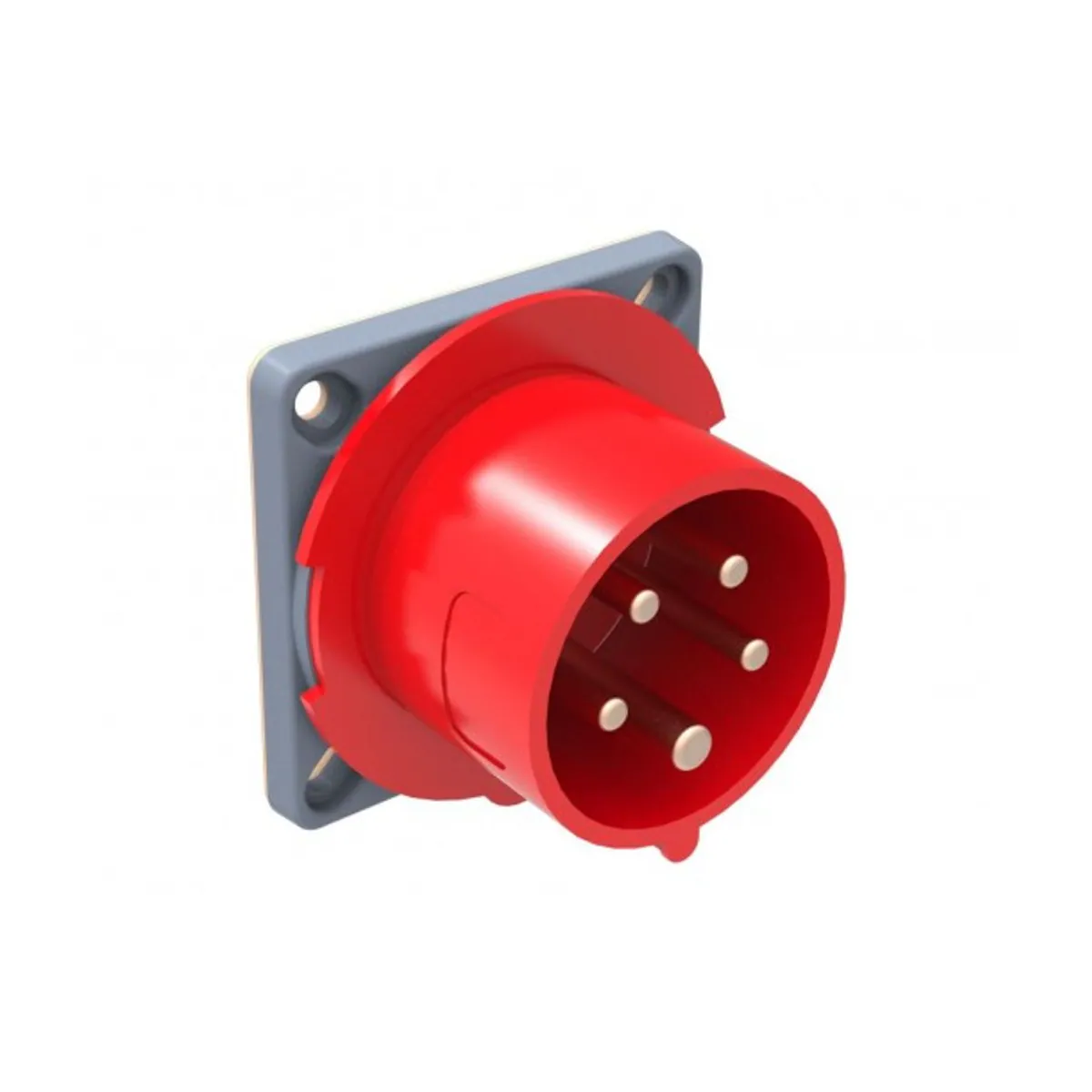

Bemis BC1-1505-7070 CEE Phase-Reversing Machine Plug 16 A 3P+E+N IP67
- Brand: Bemis
- SKU: BC1-1505-7070
- MPN: BC1-1505-7070
- Price: 558.83 TRY + VAT · incl. VAT 670.60 TRY
- Availability: In stock
- CEE Panel Plugs
- Bemis CEE Panel Plugs
- Selection guide: CEE Panel and Appliance Inlet Plugs Selection Guide
Bemis BC1-1505-7070 is a CEE Phase-Reversing Machine Plug model. Rated Current: 16 A. Pole Arrangement: 3P+E+N. Voltage: 380V. AC. IP Rating: IP67. Housing Material: Polyamide 6.
| Clock Position | 6h |
|---|---|
| Series | 5 Kontaklı CEE Norm Seri |
| IP Rating | IP67 |
| Rated Current | 16 A |
| Number of Contacts | 5 |
| Pole Arrangement | 3P+N+E |
| Voltage | 380V. AC |
| Frequency | 50/60 Hz |
| Housing Material | Polyamid 6 |
| Warranty Period | 5 years |
| Series Electrical Designation | 5/16A. (3P+E+N) 380V. AC 50/60 Hz. 6h (Polyamid 6) |
| Product Configuration | 5/16A. Enversör Makine Fişi |
| Contact Material | MS 58 |
| Voltage range | 380–450 V |
| Phase sequence reversal | Tornavidayla faz sırası değiştirilebilir |
| Technical Drawing Dimension Notes | a: 63; b: 14; cØ: 55; d: 58; e: 75 (mm) |
| Mounting Hole Diameter | 55 mm |
