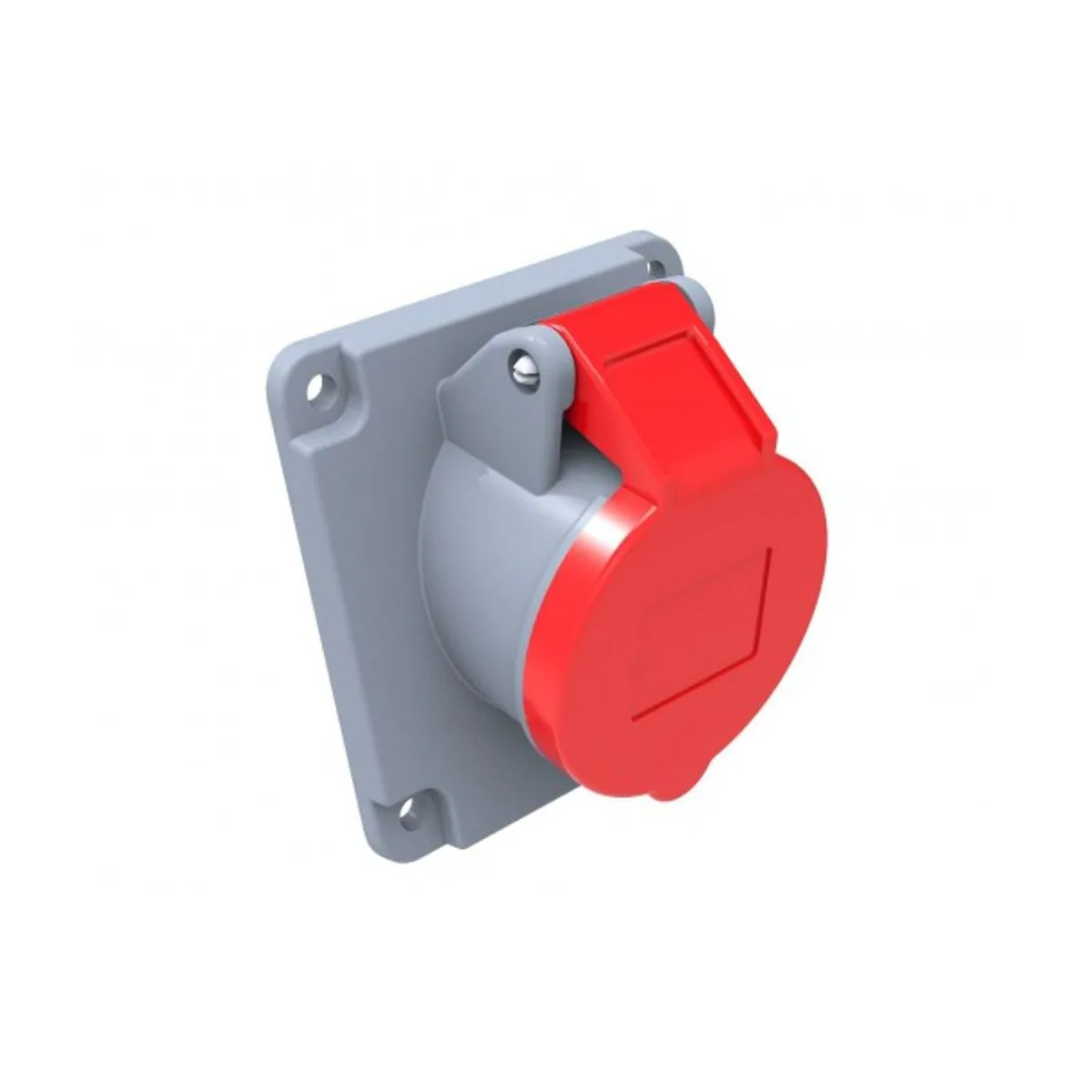

Bemis BC1-3504-2420 CEE 45° Angled Machine Socket 32 A 3P+E IP44
- Brand: Bemis
- SKU: BC1-3504-2420
- MPN: BC1-3504-2420
- Price: 263.67 TRY + VAT · incl. VAT 316.40 TRY
- Availability: In stock
- CEE Angled Panel Sockets
- Bemis CEE Angled Panel Sockets
- Selection guide: CEE Angled Panel Sockets Selection Guide: Technical Criteria and Engineering Practice
Bemis BC1-3504-2420 is a CEE 45° Angled Machine Socket model. Rated Current: 32 A. Pole arrangement: 3P+E. Voltage: 380V. AC. IP Rating: IP44. Housing Material: Polyamide 6.
| Series | 4 Kontaklı CEE Norm Seri |
|---|---|
| IP Rating | IP44 |
| Rated Current | 32 A |
| Number of Contacts | 4 |
| Pole Arrangement | 3P+E |
| Voltage | 380V. AC |
| Frequency | 50/60 Hz |
| Clock Position | 6h |
| Housing Material | Polyamid 6 |
| Warranty Period | 5 years |
| Inclination Angle | 45° |
| Series Electrical Designation | 4/32A. (3P+E) 380V. AC 50/60 Hz. 6h (Polyamid 6) |
| Product Configuration | 4/32A. 45° Eğik Makine Priz |
| Contact Material | MS 58 |
| Voltage range | 380–450 V |
| Technical Drawing Dimension Notes | a: 102; b: 42; c: 80; d: 77; e: 91; f: 82; g: 100 (mm) |
| Mounting Hole Diameter | 80 mm |
