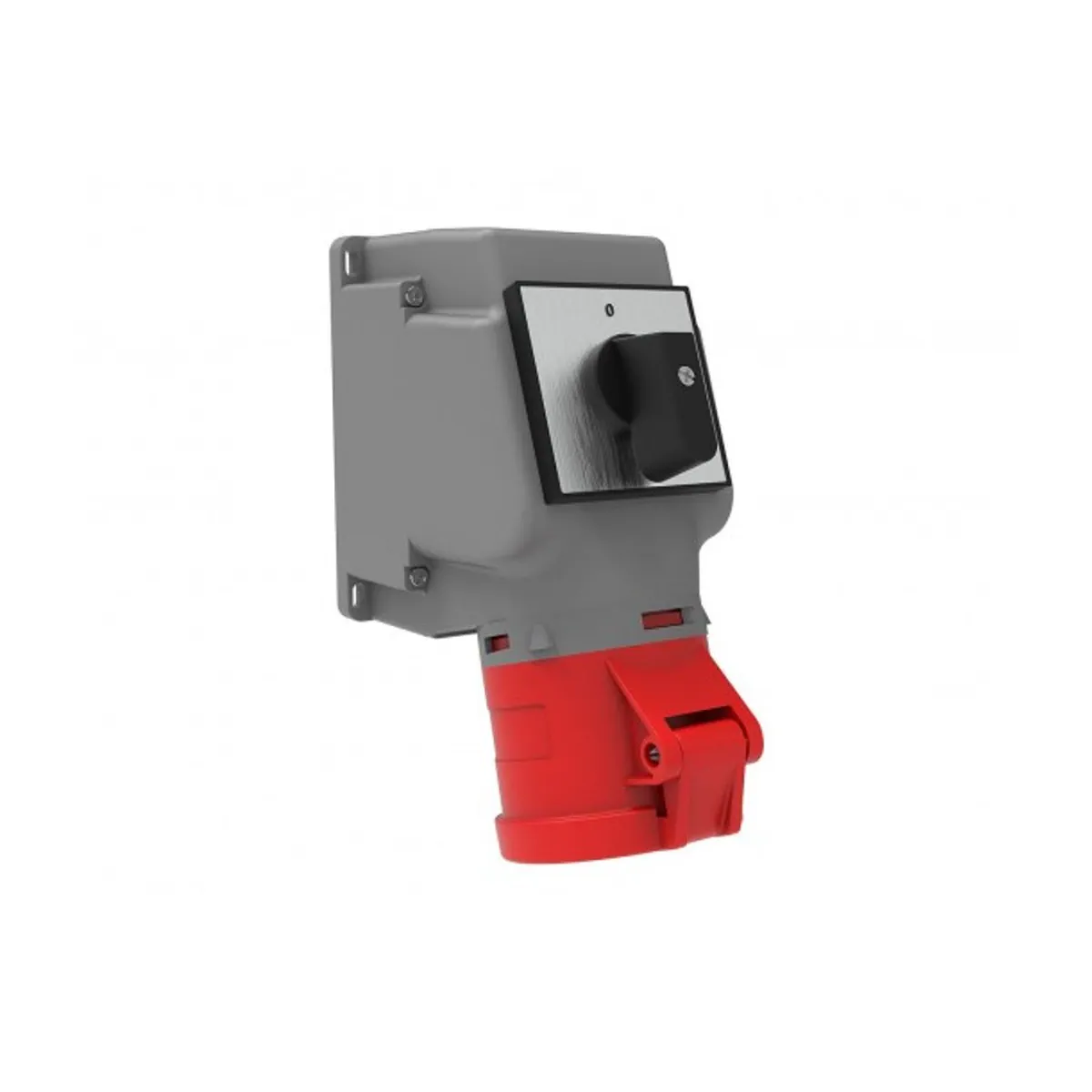

Bemis BC1-3505-2550 CEE 90° Angled Wall Socket with Cam Switch 32 A 3P+E+N IP44
- Brand: Bemis
- SKU: BC1-3505-2550
- MPN: BC1-3505-2550
- Price: 2075.99 TRY + VAT · incl. VAT 2491.19 TRY
- Availability: In stock
- Switched and Interlocked CEE Sockets
- Bemis Switched and Interlocked CEE Sockets
- Selection guide: Switched and Interlocked CEE Sockets Selection Guide: Technical Criteria and Engineering Practice
Bemis BC1-3505-2550 is a CEE Cam Switch 90° Angled Wall Socket model. Rated Current: 32 A. Pole arrangement: 3P+E+N. Voltage: 380V. AC. IP Rating: IP44. Housing Material: Polyamide 6.
| Series | 5 Kontaklı CEE Norm Seri |
|---|---|
| IP Rating | IP44 |
| Rated Current | 32 A |
| Number of Contacts | 5 |
| Pole Arrangement | 3P+N+E |
| Voltage | 380V. AC |
| Frequency | 50/60 Hz |
| Clock Position | 6h |
| Housing Material | Polyamid 6 |
| Warranty Period | 5 years |
| Inclination Angle | 90° |
| Switch | Available |
| Switch Type | Pako |
| Series Electrical Designation | 5/32A. (3P+E+N) 380V. AC 50/60 Hz. 6h (Polyamid 6) |
| Product Configuration | 5/32A. Pako Şalterli 90° Eğik Duvar Priz |
| Contact Material | MS 58 |
| Voltage range | 380–450 V |
