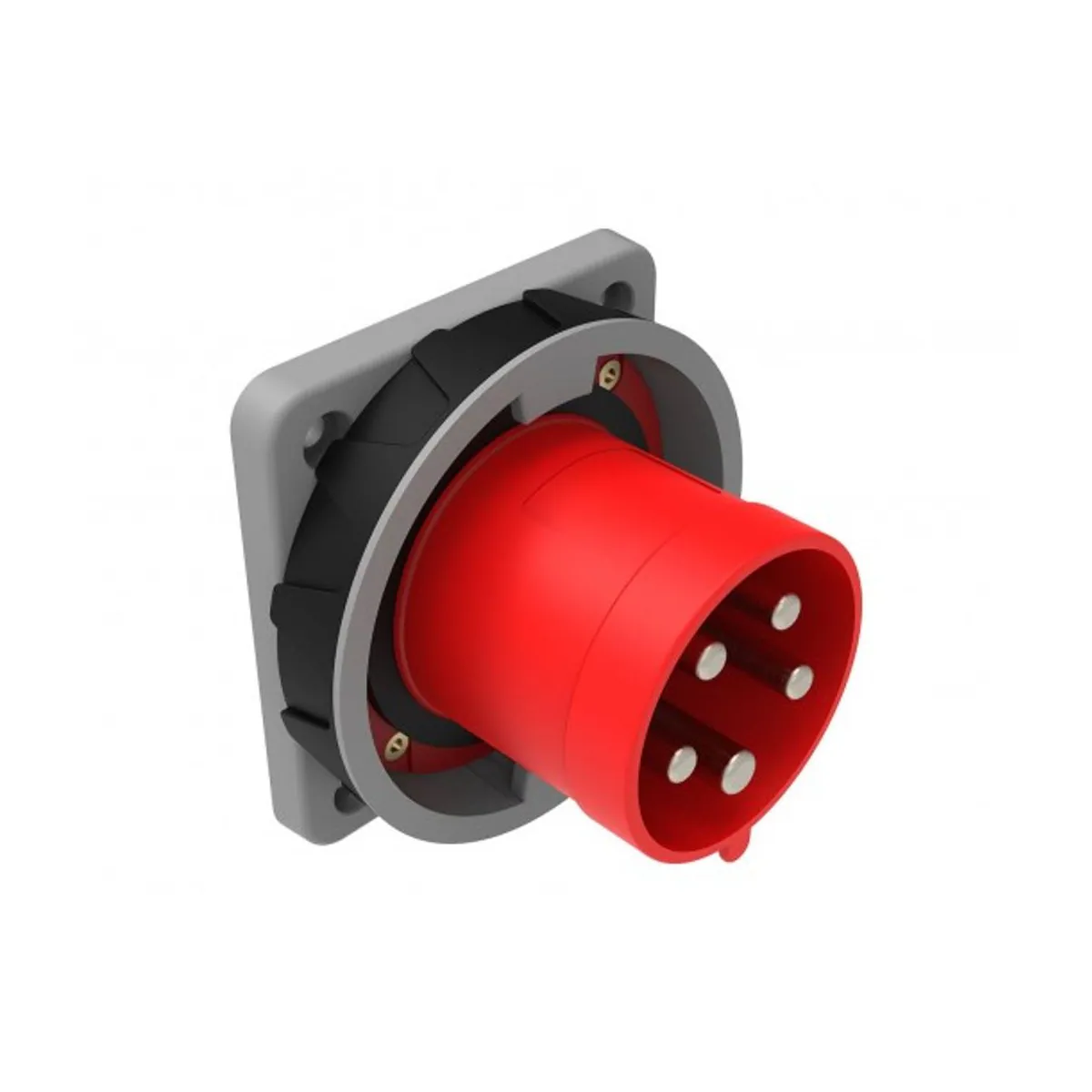

Bemis BC3-4505-7114 CEE Machine Plug 63 A 3P+E+N IP67
- Brand: Bemis
- SKU: BC3-4505-7114
- MPN: BC3-4505-7114
- Price: 1268.06 TRY + VAT · incl. VAT 1521.67 TRY
- Availability: In stock
- CEE Panel Plugs
- Bemis CEE Panel Plugs
- Selection guide: CEE Panel and Appliance Inlet Plugs Selection Guide
This Bemis BC3-4505-7114 is a CEE Machine Plug model. Rated Current: 63 A. Pole arrangement: 3P+E+N. Voltage: 380V. AC. IP Rating: IP67. Housing Material: Polyamide 6.
| Series | 5 Kontaklı CEE Norm Seri |
|---|---|
| Subseries | RS |
| IP Rating | IP67 |
| Rated Current | 63 A |
| Number of Contacts | 5 |
| Pole Arrangement | 3P+N+E |
| Voltage | 380V. AC |
| Frequency | 50/60 Hz |
| Clock Position | 6h |
| Pilot Contact | Available |
| Housing Material | Polyamid 6 |
| Warranty Period | 5 years |
| Series Electrical Designation | 5/63A. (3P+E+N) 380V. AC 50/60 Hz. 6h (Polyamid 6) PİLOTLU |
| Product Configuration | 5/63A. Makine Fişi |
| Grip surface | Darbe emici kauçuk kaplama |
| Seal construction | Sızdırmazlık contaları |
| Contact clamping | Çelik sekman |
| Terminal construction | Asansör klemens |
| Screw system | Yüksek torka dayanıklı alyan başlı vidalar |
| Cable retention | Sızdırmaz kablo sabitleme rakoru |
| Contact Material | MS58 pirinç |
| IK Impact Protection | IK10+ |
| Gram | 585.9 g |
| Voltage range | 380–450 V |
| Heat-resistant material | Red fosfor (üretici tanımı) |
