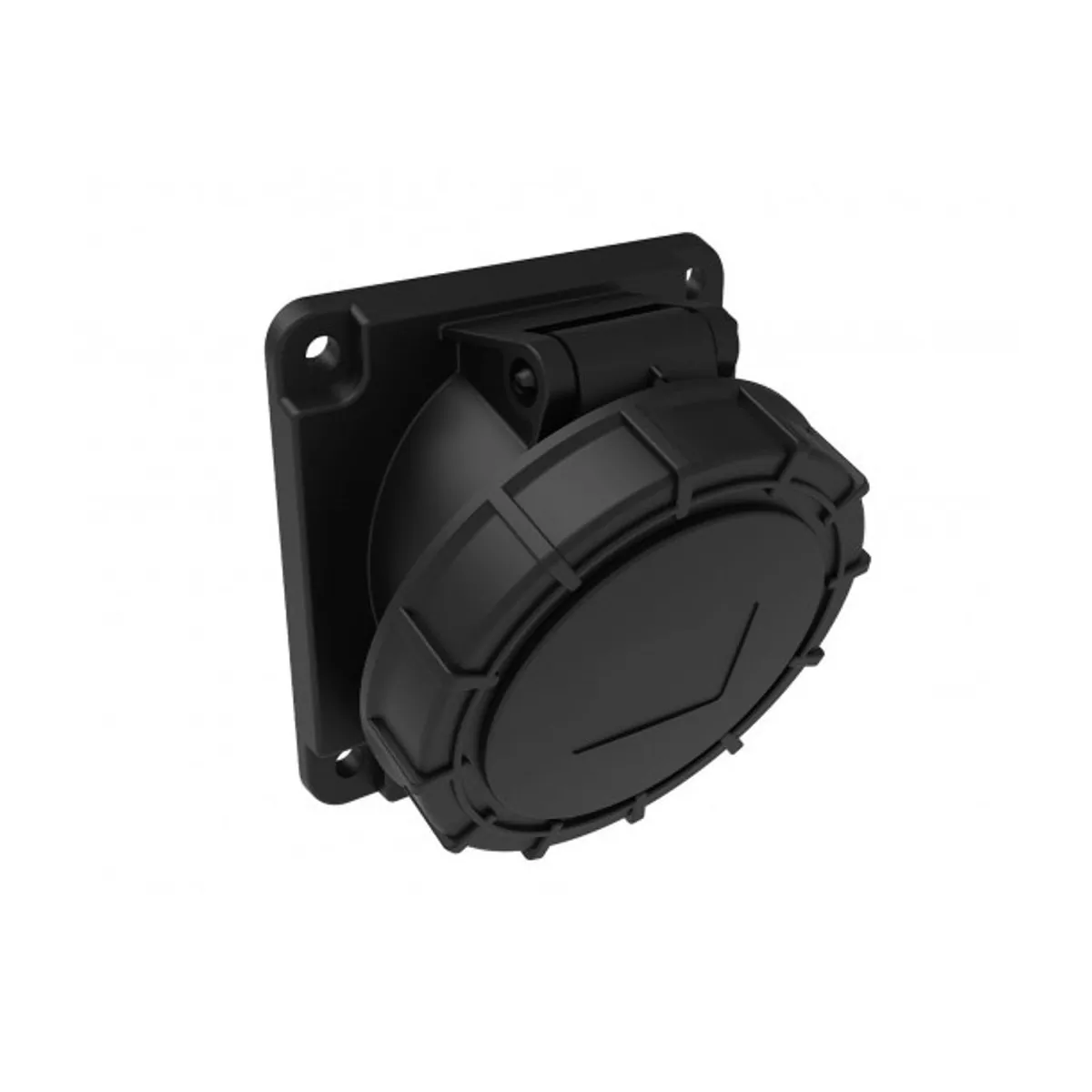

Bemis BCS-1504-7420 CEE 45° Angled Machine Socket 16 A 3P+E IP67 Black
- Brand: Bemis
- SKU: BCS-1504-7420
- MPN: BCS-1504-7420
- Price: 344.04 TRY + VAT · incl. VAT 412.85 TRY
- Availability: In stock
- CEE Angled Panel Sockets
- Bemis CEE Angled Panel Sockets
- Selection guide: CEE Angled Panel Sockets Selection Guide: Technical Criteria and Engineering Practice
This Bemis BCS-1504-7420 is the CEE 45° Angled Machine Socket model. Rated Current: 16 A. Pole arrangement: 3P+E. Voltage: 380V. AC. IP Rating: IP67. Housing Material: Polyamide 6. Color: Black.
| Series | Işık ve Ses Sistemleri Black Seri CEE Norm |
|---|---|
| IP Rating | IP67 |
| Rated Current | 16 A |
| Number of Contacts | 4 |
| Pole Arrangement | 3P+E |
| Voltage | 380V. AC |
| Frequency | 50/60 Hz |
| Clock Position | 6h |
| Housing Material | Polyamid 6 |
| Color | Black |
| Warranty Period | 5 years |
| Inclination Angle | 45° |
| Series Electrical Designation | 4/16A. (3P+E) 380V. AC 50/60 Hz. 6h (Polyamid 6) |
| Product Configuration | 4/16A. 45° Eğik Makine Priz |
| Contact Material | MS 58 |
| Gram | 175.1 g |
| Voltage range | 380–450 V |
| Technical Drawing Dimension Notes | a: 86; b: 30; cØ: 70; d: 70x70; e: 85x85 (mm) |
| Mounting Hole Diameter | 70 mm |
