Birtaş 2YY(St)CY 2X2X22/1 AWG PROFINET TYPE A
- Brand: Birtaş Kablo
- SKU: 1936 03 902 133
- Price: 16410.70 TRY + VAT · incl. VAT 19692.84 TRY
- Availability: Made to order
- Profinet Cables
- Selection guide: Industrial and Fieldbus Communication Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop

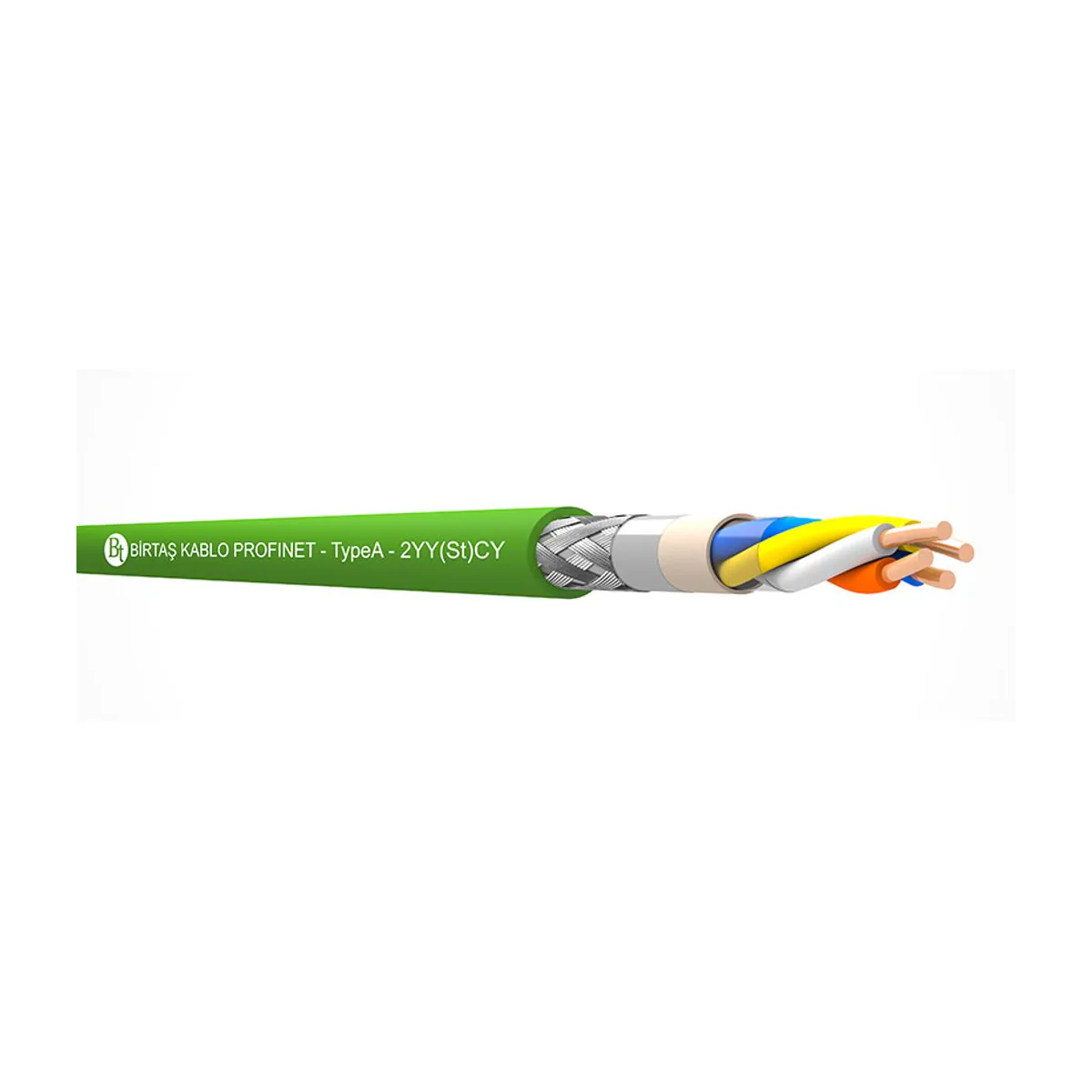

Birtaş 2YY(St)CY 2X2X22/1 AWG PROFINET TYPE A is a product in the PROFINET communication cable product family of the Birtaş Kablo brand. Key technical features: Cable type: PROFINET.
| Cable Type | PROFINET |
|---|---|
| Conductor | Çıplak bakır tek tel, (AWG 22/1 : Ø0,64 mm) |
| Insulation Material | PE compound, EN 50290-2-23 |
| Core Colour Code | IEC 60708-1acc. to: White, sarı, mavi, turuncu; 1. Çift: White-Mavi, 2. Çift: Sarı-Turuncu |
| Stranding | Damarlar yıldız dörtlü olarak uygun adımda bükülür |
| Separator Tape | Polyester tape |
| Outer Sheath Material | PVC compound, EN 50290-2-22/TM51 |
| Outer Sheath Colour | ~RAL 6018, Yeşil |
| Operating Voltage | Max. 125 V |
| Test Voltage | Damar/damar: 1000 V; Damar/ekran: 1000 V (AC 50 Hz) |
| Operating Temperature | Fixed: -30 °C … +70 °C |
| Minimum Bending Radius | 7,5 x D |
| Conductor Resistance (20 °C) | Max. 62 Ω/km (Ø 0,64 mm) |
| Insulation Resistance | Min. 5000 MΩ·km |
| Standards | ISO 11801, IEC 61156-5/-6, TS 13767 & EN 50288-2-1acc. to |
| Flame Retardance / Fire Performance | EN 60332-1-2 & IEC 60332-1-2 |
| Outer Diameter | 6,60 mm (±%7) |
| Copper Weight | 30 kg/km |
| Impedance | 100±15 Ω @1~100 MHz |
| Capacitance | Nom. 50±3 nF/km (mutual capacitance) |
| Attenuation (20 °C, max.) | 1 MHz: 2,1 dB/100 m; 4 MHz: 4,0 dB/100 m; 10 MHz: 6,3 dB/100 m; 16 MHz: 8,0 dB/100 m; 20 MHz: 9,0 dB/100 m; 31,25 MHz: 11,4 dB/100 m; 62,5 MHz: 16,5 dB/100 m; 100 MHz: 21,3 dB/100 m |
| Inner Sheath Material | PVC compound, Naturel |
| Transfer Impedance | ≤ 50 mΩ/m @10 MHz |
| Propagation Delay | ≤ 510 ns/100 m |
