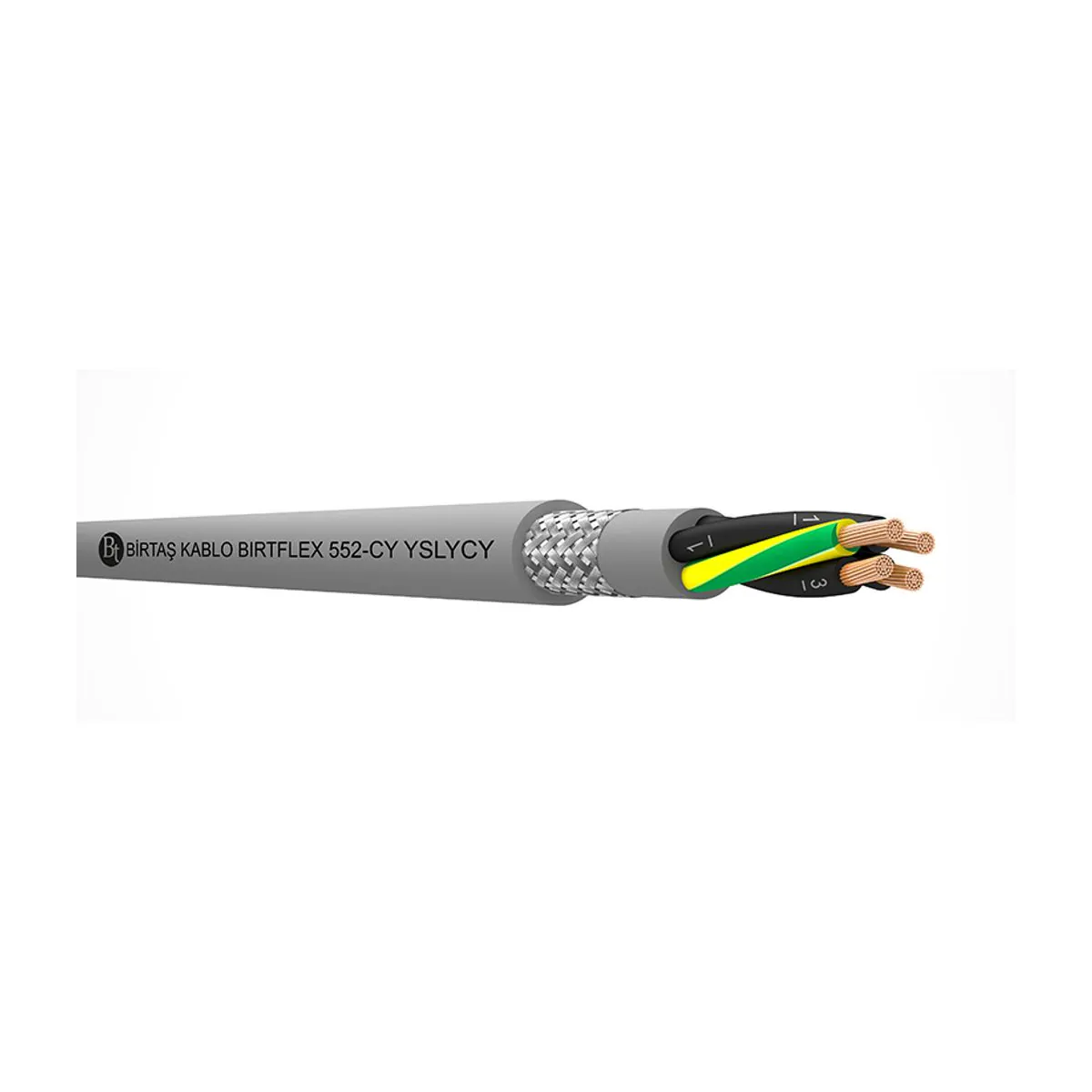

Birtaş BIRTFLEX 552-CY-YSLYCY-JZ 25x0.75 mm2
- Brand: Birtaş Kablo
- SKU: 1002 06 025 009
- Price: 90264.90 TRY + VAT · incl. VAT 108317.88 TRY
- Availability: Made to order
- YSLYCY Control Cables
- Selection guide: YSLYCY Control Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Birtaş BIRTFLEX 552-CY-YSLYCY-JZ 25x0.75 mm2 is a Birtaş Kablo product in the BIRTFLEX 552-CY YSLYCY control cable product family. Key technical features: Cable type: BIRTFLEX 552; Core cross-section: 25x0.75 mm2.
| Core Cross-Section | 25x0,75 mm² |
|---|---|
| Cable Type | BIRTFLEX 552 |
| Conductor | Flexible bare copper conductors, EN 60228 Class 5 |
| Insulation Material | Special PVC compound, exceeding EN 50363-3 / TI2 |
| Core Colour Code | Black cores with white numbers acc. to EN 50334 and one yellow-green core (G) |
| Stranding | Cores stranded in layers with suitable lay length |
| Cable Shield | Tinned copper wire braid |
| Outer Sheath Material | PVC compound, EN 50363-4-1 / TM2 |
| Outer Sheath Colour | ~RAL 7001, Grey veya Şeffaf |
| Rated Voltage | Uo/U: 300/500 V |
| Test Voltage | 4000 V (AC 50 Hz) |
| Operating Temperature | Fixed: -40 °C … +80 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 6 x D; Flexible: 15 x D |
| Conductor Resistance (20 °C) | EN 60228 acc. to Class 5 |
| Insulation Resistance | Min. 20 MΩ·km |
| Standards | EN 50525-1 & EN 50525-2-51 & TSE K 373 (design reference) |
| Flame Retardance / Fire Performance | EN 60332-1-2 & IEC 60332-1-2 |
| Outer Diameter | 16,70 mm (±%7) |
| Copper Weight | 206 kg/km |
| Inner Sheath Material | PVC compound, EN 50363-4-1 / TM2 |
