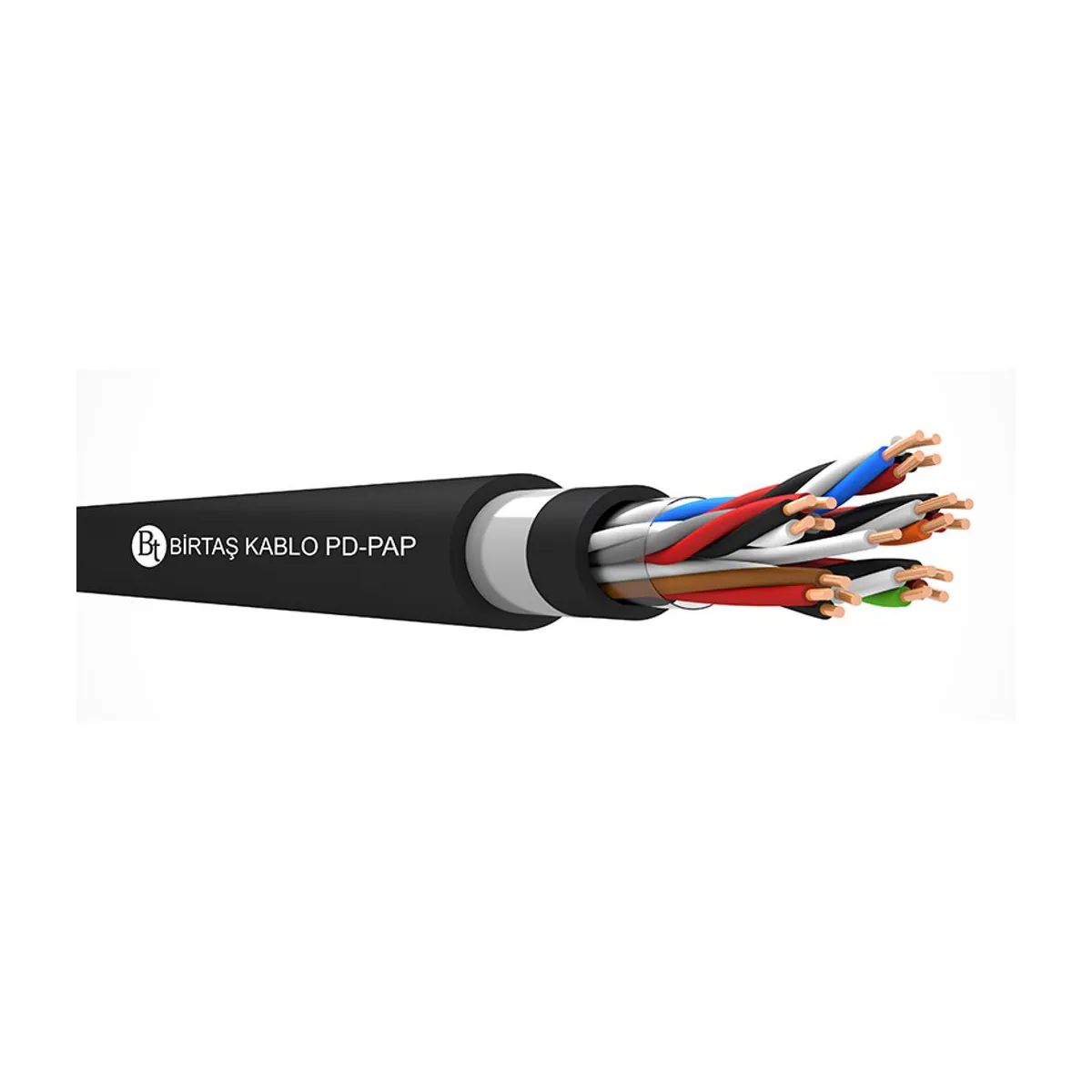

Birtaş PD-PAP 10x2x0.50 mm
- Brand: Birtaş Kablo
- SKU: 1409 02 010 004
- Price: 18096.20 TRY + VAT · incl. VAT 21715.44 TRY
- Availability: Made to order
- Telephone Cables
- Birtaş Kablo Telephone Cables
- Selection guide: Telephone Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Birtaş PD-PAP 10x2x0.50 mm is a Birtaş Kablo product in the PD-PAP communication cable product family. Key technical features: Telephone and communication applications; Shielded construction; Birtaş PD-PAP product family.
| Conductor | Çıplak bakır tek tel, katı |
|---|---|
| Insulation Material | PE compound; IEC 60708 |
| Core Colour Code | IEC 60708acc. to; renkli damarlar |
| Stranding | Dört damar bir yıldız dörtlü olarak bükülür; yıldız dörtlü bükümler beraber bükülür |
| Cable Shield | Aluminyum polyester folyo, kılıfla bitişik |
| Outer Sheath Material | PE compound; IEC 60708, UV dayanımlı |
| Outer Sheath Colour | ~RAL 9005, Black |
| Operating Voltage | 225 V |
| Test Voltage | Damar-Damar: 1000 V dc / 700 V ac, 1 min.; 2000 V dc / 1,4 kV ac, 3 sn.; Damar-Ekran: 3000 V dc / 2,1 kV ac, 1 min.; 6000 V dc / 4,2 kV ac, 3 sn. |
| Operating Temperature | Fixed: -40 °C … +70 °C; Döşemede: -5 °C … +50 °C |
| Minimum Bending Radius | Fixed: 7,5 x D; Döşemede: 15 x D |
| Conductor Resistance (20 °C) | Bireysel (Max.): 96,0 Ω/km; Ortalama (Max.): 92,1 Ω/km |
| Insulation Resistance | Min. 5000 MΩ·km |
| Standards | IEC 60708 & EN 60708 |
| Outer Diameter | Yaklaşık 10,90 mm |
| Copper Weight | 39 kg/km |
| Capacitance | Max. 55 nF/km (mutual capacitance) |
| Velocity of Propagation | Min. %60 @ 1 MHz |
| Capacitance Unbalance | @ 500 m (Max.): 150 pF (ç-ç: dörtlü karşılıklı çiftler arası); 500 pF (k-k: dörtlü kenarlar arası) |
| Inner Sheath Material | PE compound, Black |
| Resistance Unbalance | Max. % 2,0 |
