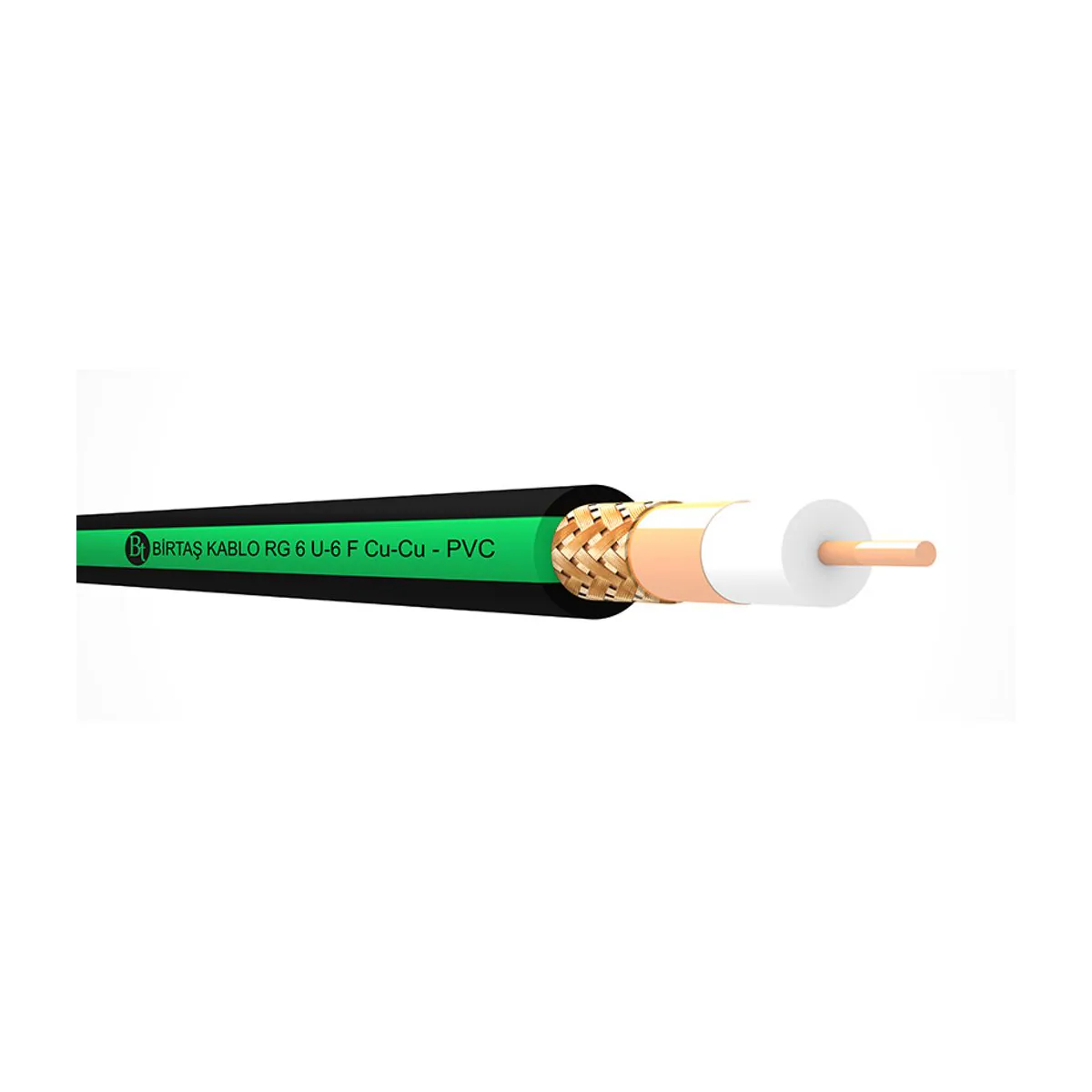

Birtaş Rx11/U-6 F HF (Cu/Cu) Class B (Euro Class:Eca)
- Brand: Birtaş Kablo
- SKU: 1305 06 011 701
- Price: 14939.20 TRY + VAT · incl. VAT 17927.04 TRY
- Availability: Made to order
- Satellite-TV Broadcast Cables
- Birtaş Kablo Satellite-TV Broadcast Cables
- Selection guide: Satellite-TV Broadcast Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Birtaş Rx11/U-6 F HF (Cu/Cu) Class B (Euro Class:Eca) is a product in the coaxial cable product family of the Birtaş Kablo brand.
| Conductor | Çıplak bakır tek tel, katı; ~Ø 1,63 mm |
|---|---|
| Insulation Material | Fiziksel köpük PE compound; ~Ø 7,15 mm |
| Cable Shield | Bakır polyester bant (Cu-PET), %100 kapamalı; çıplak bakır tel örgü |
| Outer Sheath Material | HFFR compound, EN 50290-2-27 |
| Test Voltage | 1500 Vac veya 2000 Vdc; 1 dak. |
| Operating Temperature | Fixed: -40 °C … +70 °C; Döşemede: -5 °C … +50 °C |
| Minimum Bending Radius | 10 x D |
| Insulation Resistance | Min. 2000 MΩ·km |
| Standards | EN 50117-9-2 |
| Flame Retardance / Fire Performance | Alev geciktirici testi: EN 60332-1-2 & IEC 60332-1-2; Euro sınıfı (CPR, EN 50575): Eca; Duman yoğunluğu testi: EN 61034-2 & IEC 61034-2; Halojensizlik özelliği testi: EN 60754-1/-2 & IEC 60754-1/-2 |
| Outer Diameter | 9,80 mm (yaklaşık) |
| Impedance | 75 ± 3 Ω |
| Capacitance | 52 ± 2 nF/km (mutual capacitance) |
| Velocity of Propagation | ~%82 |
| Attenuation (20 °C, max.) | 5 MHz: 1,80 dB/100 m; 200 MHz: 6,70 dB/100 m; 400 MHz: 9,50 dB/100 m; 800 MHz: 13,50 dB/100 m; 1000 MHz: 15,30 dB/100 m; 2150 MHz: 23,00 dB/100 m; 2400 MHz: 25,60 dB/100 m; 3000 MHz: 29,90 dB/100 m |
| Return Loss | 5-470 MHz: ≥ 23 dB; 470-1000 MHz: ≥ 20 dB; 1000-2000 MHz: ≥ 18 dB; 2000-3000 MHz: ≥ 16 dB |
| Screening Class | Sınıf B |
| Screening Attenuation | 30-1000 MHz: ≥ 75 dB; 1000-2000MHz: ≥ 65 dB; 2000-3000 MHz: ≥ 55 dB |
| Transfer Impedance | 5-30 MHz: Max. 15 mΩ/m |
