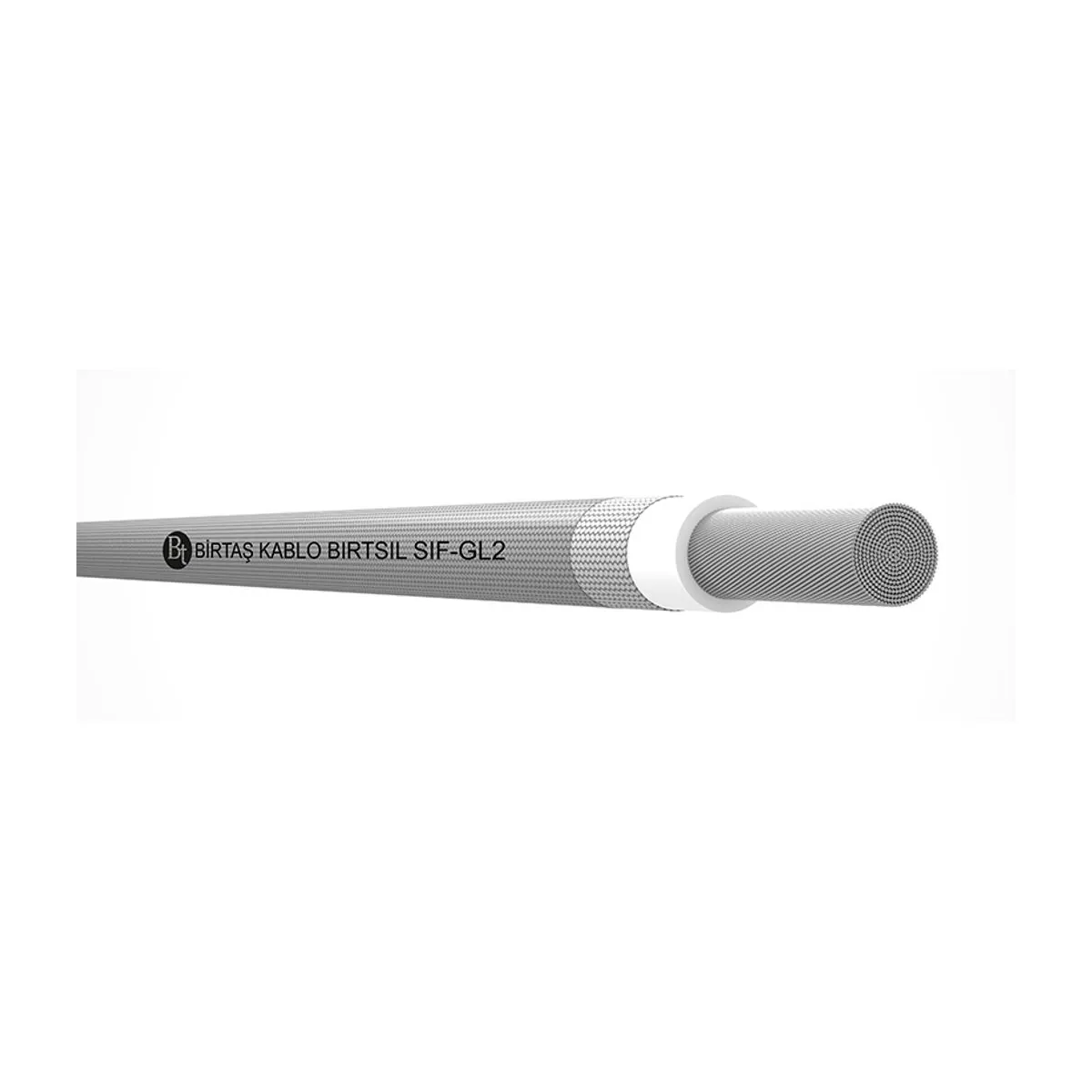

Birtaş SIF-GL-2 H05SJS-K 1x4 mm2 (tinned copper)
- Brand: Birtaş Kablo
- SKU: 1706 10 201 001
- Price: 19510.00 TRY + VAT · incl. VAT 23412.00 TRY
- Availability: Made to order
- SIAF Silicone Cables
- Birtaş Kablo SIAF Silicone Cables
- Selection guide: SIAF Silicone Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Birtaş SIF-GL-2 H05SJS-K 1x4 mm2 (tinned copper) is a Birtaş Kablo product in the BIRTSIL SIF-GL2 glass-fiber braided silicone cable product family. Key technical features: Silicone insulation; Glass fiber braid; High-temperature applications; Core cross-section: 1x4 mm2.
| Core Cross-Section | 1x4 mm² |
|---|---|
| Conductor | Bükülgen kalaylı bakır teller, EN / IEC 60228 Class 5 |
| Insulation Material | Silikon compound, EN 50363-1 / EI2 |
| Core Colour Code | Mavi, Kahve, Black, Grey, Kırmızı, Sarı/yeşil (G) & farklı renklerde |
| Outer Sheath Material | Silikon (şeffaf), örgüye emdirilmiş olarak |
| Rated Voltage | Uo/U: 300/500 V |
| Test Voltage | 2000 V & 3500 V (AC 50 Hz) |
| Operating Temperature | Fixed: -60 °C … +180 °C; Flexible: -25 °C … +180 °C |
| Short-Circuit Temperature | +350 °C (5 saniye) |
| Minimum Bending Radius | Fixed: 6 x D; Flexible: 15 x D |
| Conductor Resistance (20 °C) | EN 60228 acc. to Class 5 |
| Insulation Resistance | Min. 20 MΩ·km |
| Standards | EN 50525-2-41 & TSE K 332 (design reference) |
| Flame Retardance / Fire Performance | Alev geciktirici testi: EN 60332-1-2 & IEC 60332-1-2; Halojensizlik özelliği testi: EN 60754-1/-2 & IEC 60754-1/-2 |
| Outer Diameter | Yaklaşık 5,00 mm (± %7) |
| Copper Weight | 34 kg/km |
| Oil Resistance | EN 60811-404 & IEC 60811-404acc. to; EN 50363-2-1; 24 saat @ 100 °C |
| Conductor Operating Temperature | +180 °C |
| Braid | Cam elyaf iplik örgü |
