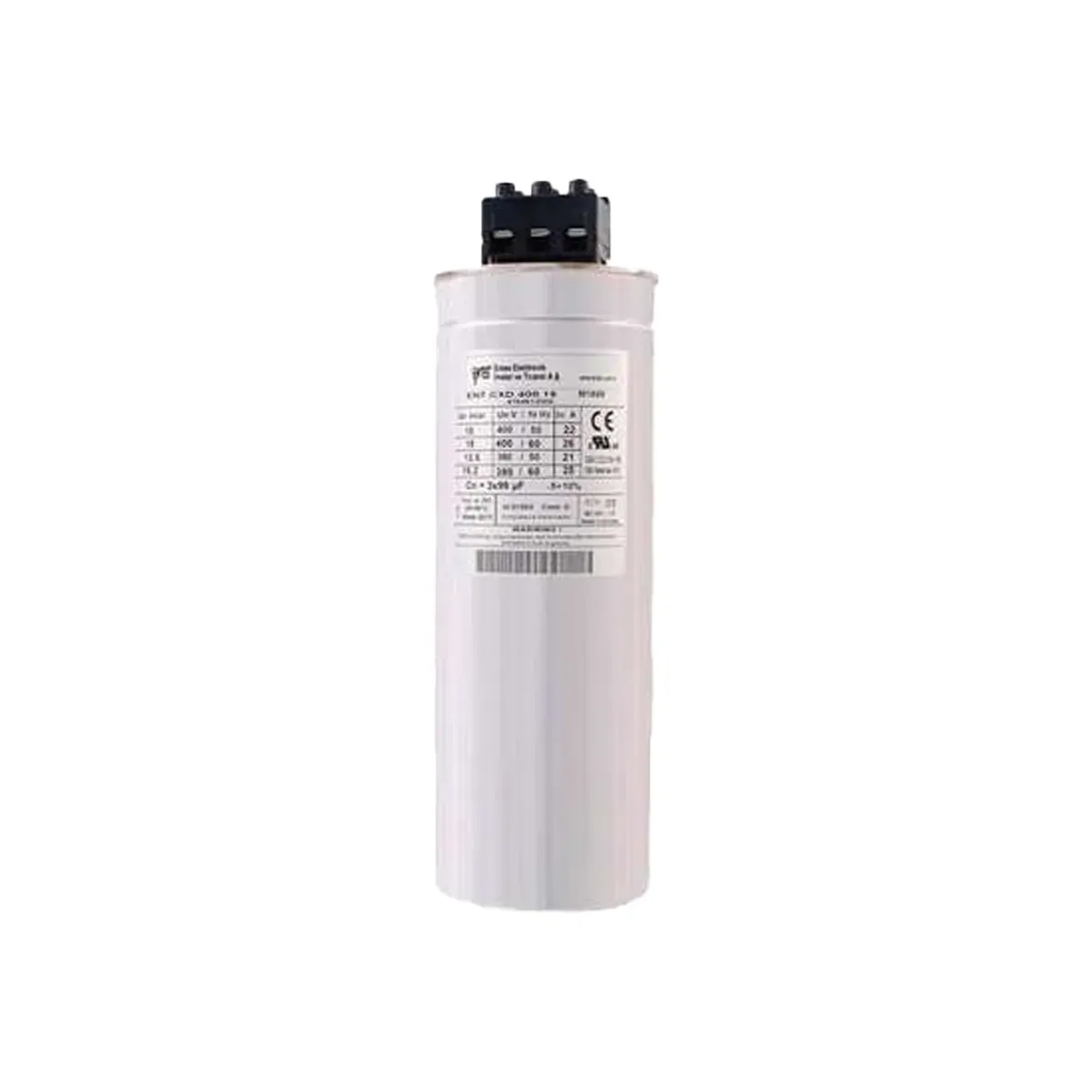

Entes ENT.CXD-525-12.5 Three-Phase Low Voltage Power Capacitor, 12.5kVAr, 525VAC
- Brand: Entes
- SKU: M2904
- MPN: M2904
- Price: 3059.10 TRY + VAT · incl. VAT 3670.92 TRY
- Availability: Made to order
- Three-Phase Power Capacitors
- Entes Three-Phase Power Capacitors
- Selection guide: Three-Phase Power Factor Correction Capacitors Selection Guide
Entes ENT.CXD-525-12.5 Three-Phase Low Voltage Power Capacitor, 12.5kVAr, 525VAC. Three-Phase Power Capacitors are used in staged or fixed reactive power correction in power factor correction panels. Technical values: Size Type 85x255mm, Voltage 525VAC. Stock code: M2904.
| Size Type | 85x255mm |
|---|---|
| Voltage | 525 V AC |
| Operating Frequency | 50/60 Hz |
| Capacitance Tolerance | %-5+%10 |
| Dielectric Losses | ≤0,2 W/kVAr |
| Operating Altitude | ≤2000 m |
| Test Voltage (Terminal-Terminal) | 2,15 x Un, AC 2 s |
| Test Voltage (Terminal-Case) | 3 kV, AC 10 s |
| Maximum Permissible Voltage | 1,1xUn |
| Maximum Permissible Current | 4 x In |
| Maximum Inrush Current | 200 In |
| IP Rating | IP20 |
| Discharge Resistors | Harici, 60 sn. sonra 50V |
| Standards | IEC 60831-1/2 |
| Operating Temperature | -25+55°C |
| Capacitance | 3x48 µF |
| Rated Current (In) | 15 A |
| Max. dV/dt | 100 V / µs |
| Terminal Connection Type | Vidalama Terminali |
