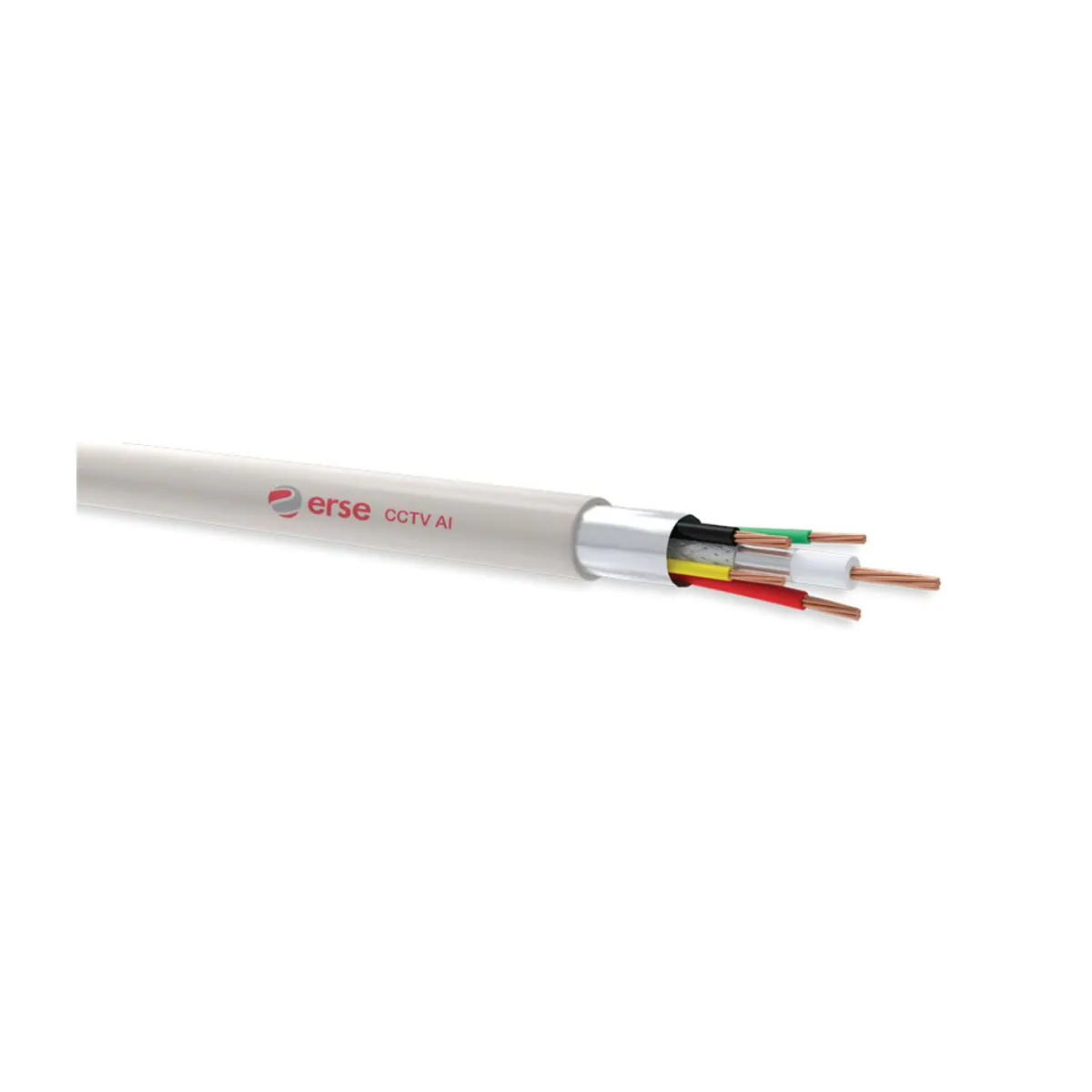

Erse CCTV-AL 1 COAX+4x0.22 mm2 HFFR Cable
- Brand: Erse Kablo
- SKU: FDER019900500022G
- MPN: FDER019900500022G
- Price: 4634.00 TRY + VAT · incl. VAT 5560.80 TRY
- Availability: Made to order
- CCTV Camera Cables
- Selection guide: CCTV Camera Cables Selection Guide: Technical Criteria & Application Standards
- Calculate cable current-carrying capacity
- Calculate voltage drop
Erse CCTV-AL 1 COAX+4x0.22 mm2 HFFR Cable is a product in the Erse Kablo brand's CCTV camera cable product family. Key technical features: Core cross-section: 4x0.22 mm2.
| Core Cross-Section | 4x0,22 mm² |
|---|---|
| Conductor | Koaksiyel: 7x0,20mm Ø Bükülü Elektrolitik Bakır; Sinyal Damarları: 0,22 mm² Bükülü Elektrolitik Bakır |
| Insulation Material | Koaksiyel: 2,50mm Ø Solid PE; Sinyal Damarları: Solid PE ya da HFFR Kompaund |
| Cable Shield | Koaksiyel Ekran: Al-Pes Bant + Alüminyum Örgü; Genel Ekran: Al-Pes Bant (100% Kapama) |
| Outer Sheath Material | HFFR Kompaund |
| Outer Sheath Colour | RAL 7001 Grey |
| Capacitance | 67 pF/m |
| Impedance | 75 ± 3 Ω |
| Operating Voltage | 250 V |
| Test Voltage | 1200 V |
| Minimum Bending Radius | 10x Kablo Ø |
| Operating Temperature | -30 °C … +70 °C |
| Flame Retardance / Fire Performance | Alev geciktiricilik: IEC 60332-1-2; Korozif gaz: IEC 60754-2; Halojensizlik: IEC 60754-1; Duman yoğunluğu: IEC 61034-2 |
| Conductor Resistance | 0.22mm²= 79 Ω/km |
