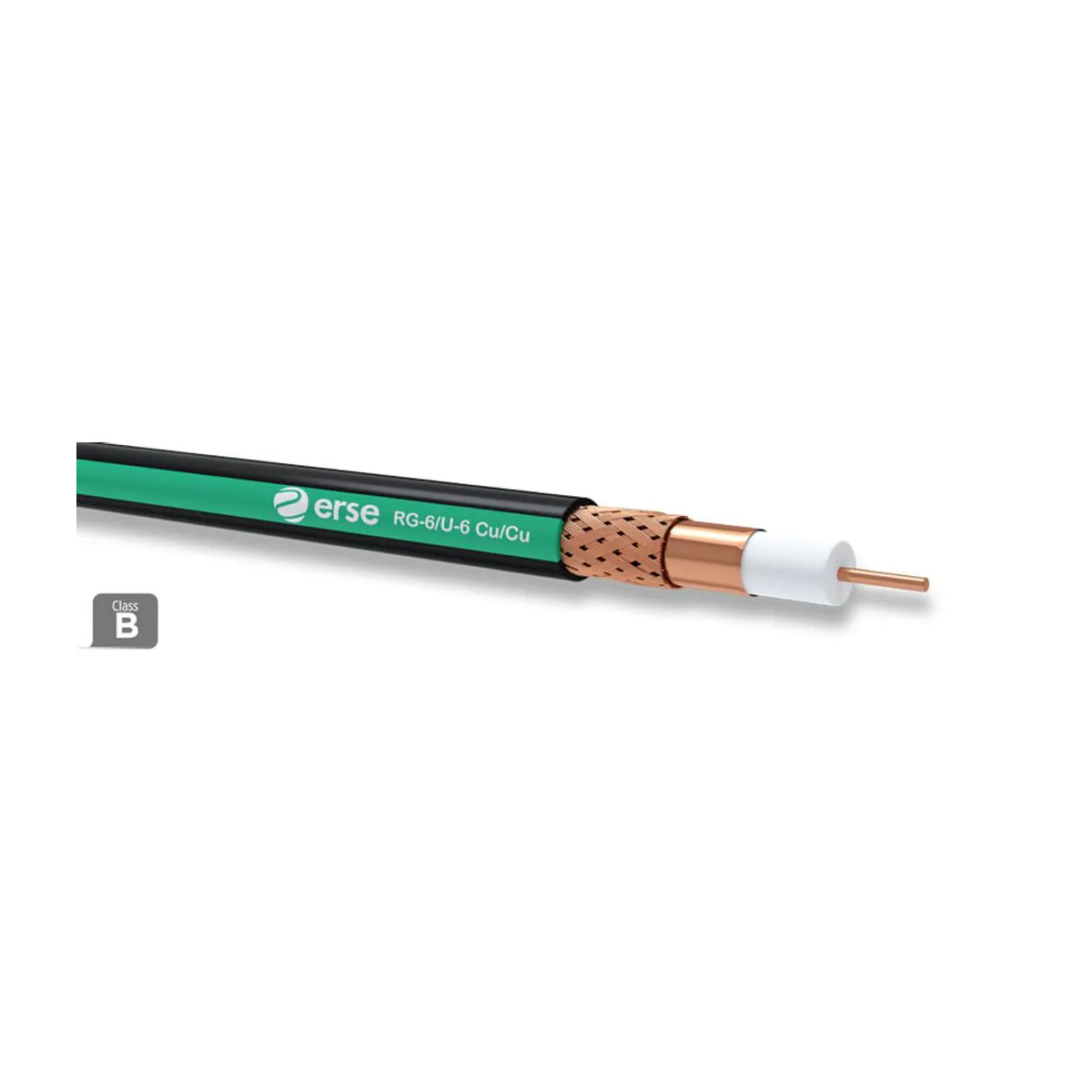

Erse COAXIAL RG 6/U-6 Cu/Cu Class B HFFR Cable
- Brand: Erse Kablo
- SKU: FDER017800100102G
- MPN: FDER017800100102G
- Price: 5207.00 TRY + VAT · incl. VAT 6248.40 TRY
- Availability: Made to order
- Satellite-TV Broadcast Cables
- Erse Kablo Satellite-TV Broadcast Cables
- Selection guide: Satellite-TV Broadcast Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Erse COAXIAL RG 6/U-6 Cu/Cu Class B HFFR Cable is a product in the Erse Kablo brand's coaxial cable product family.
| Conductor | 1,02 mm Ø Elektrolitik Bakır |
|---|---|
| Insulation Material | 4,60 mm Ø Fiziksel Köpük PE |
| Cable Shield | 1. Ekran: Cu-Pes Bant (100% Kapama); 2. Ekran: Elektrolitik Bakır Örgü |
| Outer Sheath Material | HFFR Kompaund |
| Outer Sheath Colour | Black ya da Grey |
| Outer Diameter | 6.8 mm |
| Insulation Resistance | >2000 MΩ·km |
| Capacitance | 53±2 pF/m |
| Velocity of Propagation | 82% |
| Operating Voltage | 1.3 kV |
| Test Voltage | 3 kV |
| Minimum Bending Radius | 20x Kablo Ø |
| Operating Temperature | -40 °C … +70 °C |
| Impedance | 75 ± 3 Ω |
| Flame Retardance / Fire Performance | Alev geciktiricilik: IEC 60332-1-2; Duman yoğunluğu: IEC 61034-2; Korozif gaz: IEC 60754-2; Halojensizlik: IEC 60754-1; Alev yayılımı: IEC 60332-3-25 |
| Attenuation (20 °C) | 5 MHz: 2,8 dB/100m; 200 MHz: 9,3 dB/100m; 400 MHz: 13,7 dB/100m; 800 MHz: 19,1 dB/100m; 1000 MHz: 22 dB/100m; 2150 MHz: 32,5 dB/100m; 2400 MHz: 35,1 dB/100m; 3000 MHz: 39,3 dB/100m |
