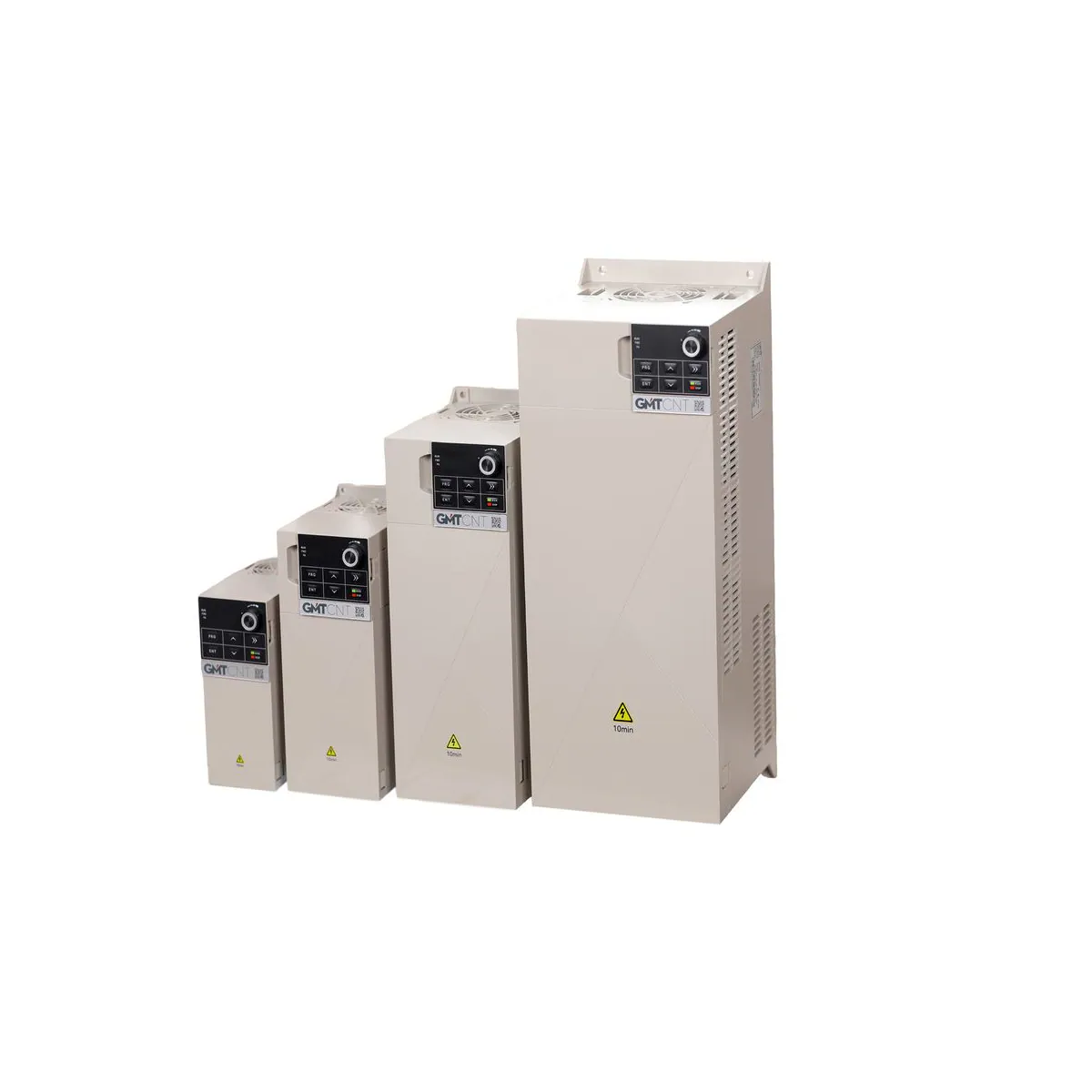

GMT SPIN2-01850H Solar Pump Drive, 18.5 kW
- Brand: GMT
- SKU: SPIN2-01850H
- MPN: SPIN2-01850H
- Model: 18.5 kW
- Price: 28507.35 TRY + VAT · incl. VAT 34208.82 TRY
- Availability: In stock
- Solar Pump Drives
- Selection guide: Solar Pump Drives Selection Guide: Technical Criteria & Application Standards
This GMT SPIN2-01850H solar pump drive provides 18.5 kW power and 37 A current with 350-850 VDC input and 3 × 380 VAC output.
| Power | 18.5 kW |
|---|---|
| Input Voltage | 350–850 V DC |
| Output Voltage | 3 × 380 VAC |
| Output Current | 37 A |
| Number of Analog Inputs | 2 |
| Number of Analog Outputs | 1 |
| Overvoltage Protection | Available |
| Number of Digital Inputs | 4 |
| Undervoltage Protection | Available |
| Housing Dimensions (W×H×D) | 145 × 388 × 195.1 mm |
| Communication Protocols | Modbus RTU (RS485) |
| Control Mode | V/F veya vektör kontrol |
| Dry Run Protection | Available |
| Short-Circuit Protection | Available |
| MPPT Function | Dahili |
| Number of Relay Outputs | 1 |
| High Temperature Protection | Available |
| Mains Input Voltage | 380–480 VAC, 50/60 Hz |
| Open Circuit Protection | Available |
| Maximum Input Voltage (Voc) | 900 V DC |
| Start-up Voltage | 350 V DC |
| Optimum Input Voltage | 560 V DC |
| Recommended MPP Voltage Range | 500–750 V DC |
| Recommended PV Array Power | 22.2–29.6 kW |
| Alternative AC Generator Input Voltage | 3 faz 380–480 V |
| Alternative AC Generator Maximum Current (RMS) | 38.5 A |
| Alternative AC Generator Power | 24 kVA |
| Output Frequency | 0–50/60 Hz |
| Mounting Hole Spacing (W1 × H1) | 116 × 374 mm |
| Mounting Hole Diameter | 6 mm |
| Operating Temperature | -20–60 °C (45 °C üzerinde performans kaybı olabilir) |
| Operating Humidity | ≤%95 RH |
| Cooling Type | Fan |
| Certification | IEC/EN 61800-5-1, IEC/EN 61800-2:2004, IEC/EN 61800-3:2004, CE |
| Motor Cooling Protection | Dahili |
| High Voltage Protection | Dahili |
| Hybrid Operation | Güneş enerjisi ve şebeke beslemesi arasında kesintisiz geçiş |
