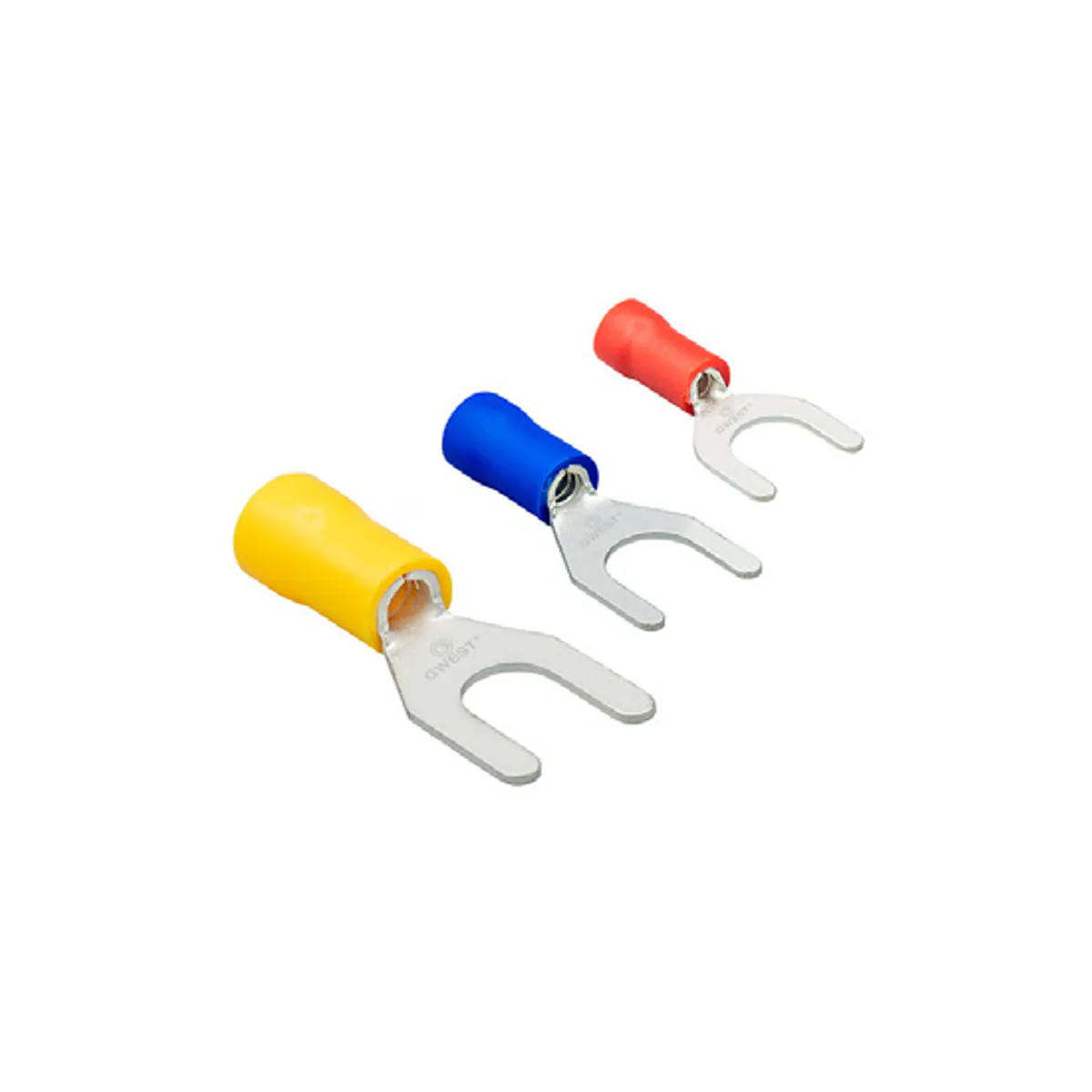

Gwest GÇU - 8006 Fork Type Insulated Cable Terminals — Yellow
- Brand: Gwest
- SKU: 3112
- MPN: GÇU - 8006
- Price: 470.40 TRY + VAT · incl. VAT 564.48 TRY
- Availability: In stock
- Fork Type Insulated Cable Terminals
- Gwest Fork Type Insulated Cable Terminals
- Selection guide: Fork Type Insulated Cable Terminals Selection Guide: Technical Criteria and Engineering Practice
Gwest GÇU - 8006 Fork Type Insulated Cable Terminals. Key technical features - Cable Cross-Section: 4.00 - 6.00 mm² - Color: Yellow - Material: Copper, Tin-Plated - Insulation: PVC - Operating Temperature: Maximum 105 °C - Voltage: 600 V - Standard: DIN 46237 - Terminal Dimension d2: 8.4 mm - Bolt Size: M8 - Terminal Dimension d1: 3.6 mm - Terminal Dimension d3: 14.0 mm - Terminal Dimension a: 13.0 mm - Terminal Dimension d4: 6.3 mm - Terminal Dimension I: 26.0 mm
| Bolt Size | M8 |
|---|---|
| Voltage | 600 V |
| Cable Cross-Section | 4–6 mm² |
| Material | Bakır, Kalay Kaplı |
| Color | Yellow |
| Standard | DIN 46237 |
| Terminal Dimension I | 26 mm |
| Terminal Dimension a | 13 mm |
| Terminal Dimension d1 | 3.6 mm |
| Terminal Dimension d2 | 8.4 mm |
| Terminal Dimension d3 | 14 mm |
| Terminal Dimension d4 | 6.3 mm |
| Operating Temperature | Maksimum 105 °C |
| Manufacturer Order Code | 3112 |
| Manufacturer Product Code | GÇU - 8006 |
| Product Type | Çatal Tip İzoleli Kablo Uçları |
| Isolation | PVC |
