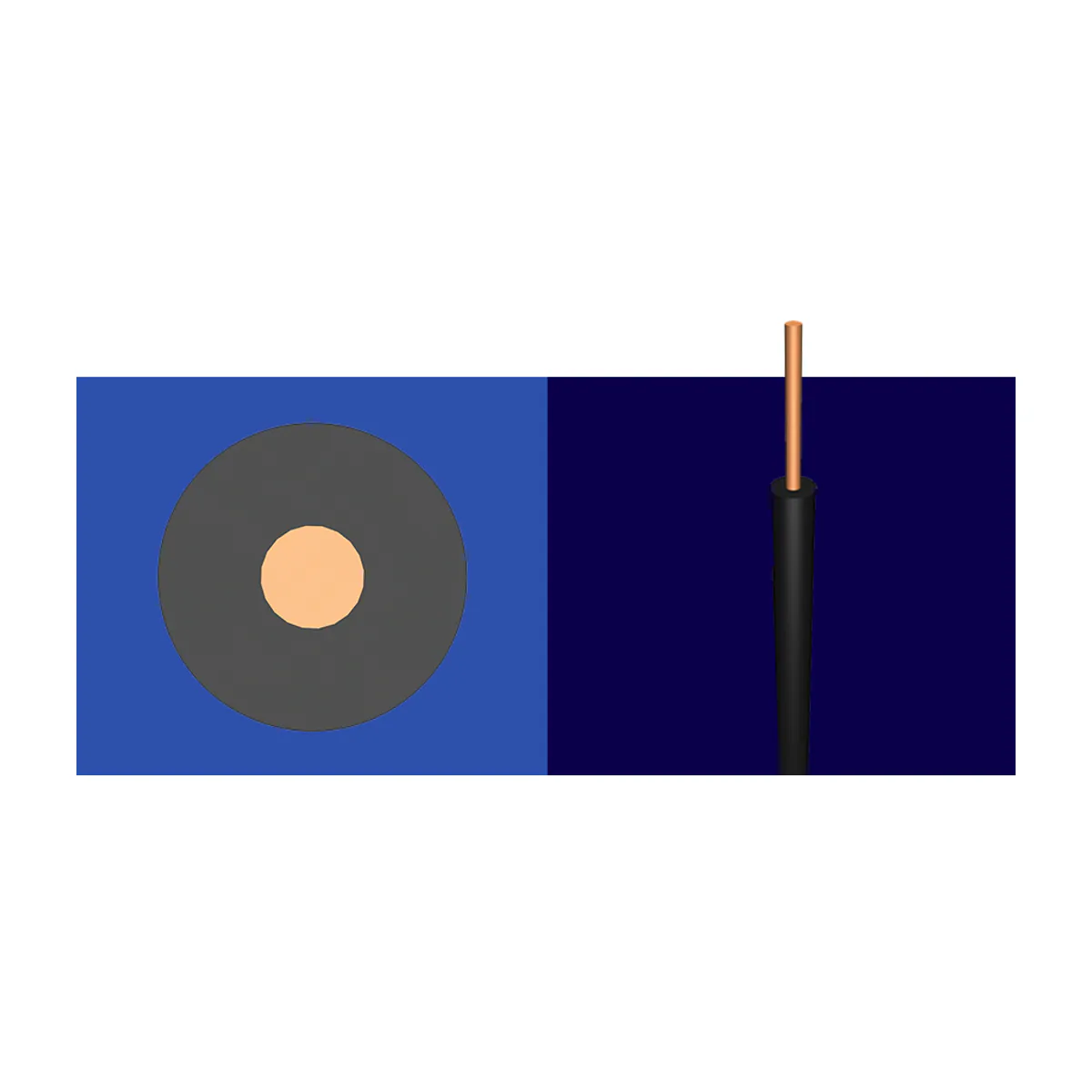

Hes NYAF 1x2.5 mm2 H07V-K Blue Cable
- Brand: HES Kablo
- SKU: HESWB0123
- Price: 2124.20 TRY + VAT · incl. VAT 2549.04 TRY
- Availability: In stock
- NYAF Cables
- HES Kablo NYAF Cables
- Selection guide: NYAF Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Hes NYAF 1x2.5 mm2 H07V-K Blue Cable. Key technical features: PVC insulation; Copper conductor; 70 °C maximum operating temperature; Core cross-section: 1x2.5 mm2.
| Core Cross-Section | 1x2,5 mm² |
|---|---|
| Color | Blue |
| Conductor | Bükülgen bakır iletken (K: ince çok telli bükülgen iletken) |
| Insulation Material | PVC |
| Conductor Operating Temperature | Max. 70 °C |
| Short-Circuit Temperature | 160 °C (max. 5 sn.) |
| Standards | TS EN 50525-2-31, TS IEC 60227 |
| Outer Diameter | 3,6 mm (yaklaşık) |
| Conductor Resistance (20 °C) | Max. 7,98 Ω/km (DC) |
| Current Carrying Capacity | Toprakta 20 °C: 20 A; Havada 30 °C: 32 A |
| Rated Voltage | 450/750 V |
