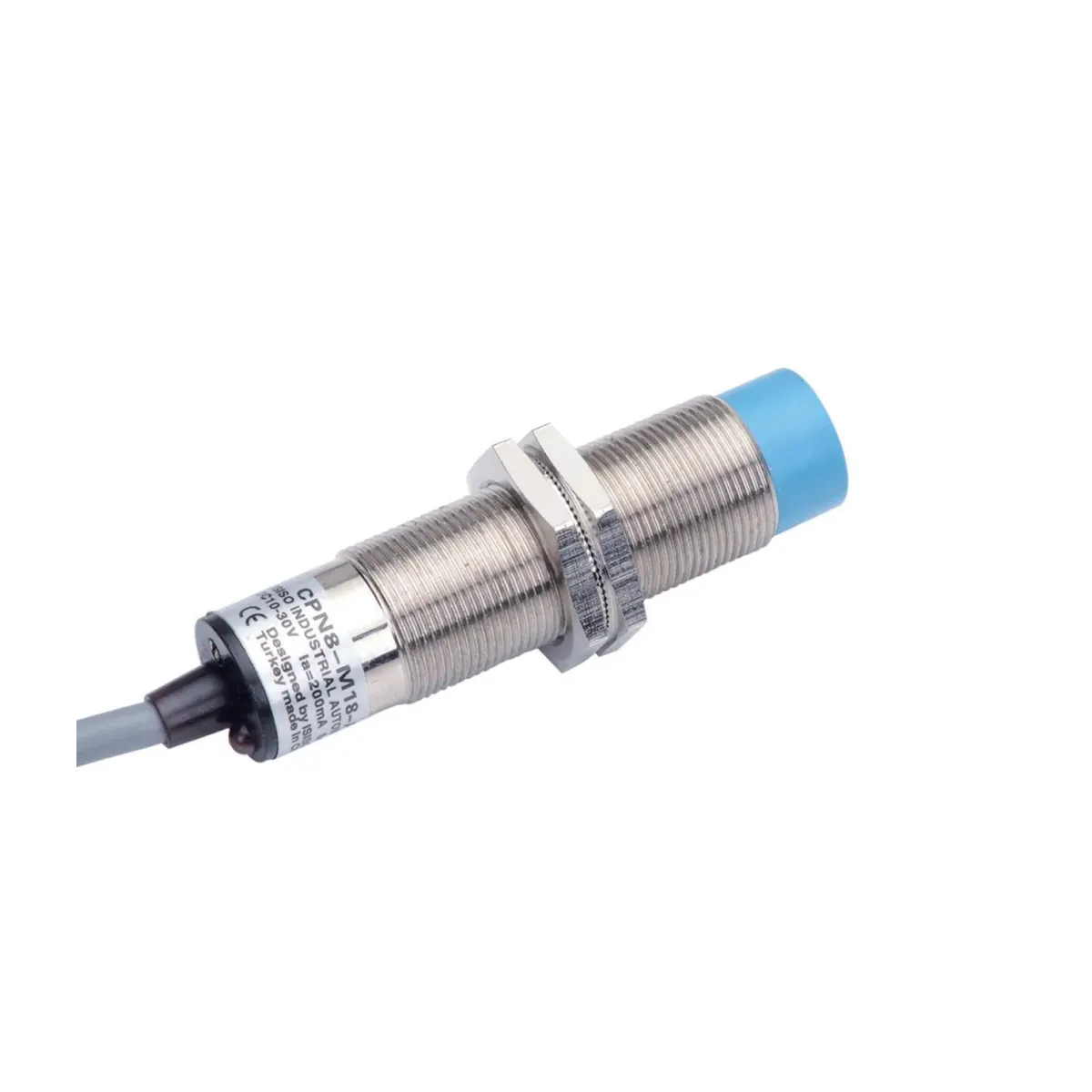

Isıso ICPN8-M18-WS Capacitive Sensor, M18, NC, 8 mm, 20-250 V AC
- Brand: Isıso
- SKU: ICPN8-M18-WS
- MPN: ICPN8-M18-WS
- Price: 1072.53 TRY + VAT · incl. VAT 1287.04 TRY
- Availability: In stock
- Capacitive Sensors
- Selection guide: Capacitive Sensors Selection Guide: Technical Criteria & Application Standards
Isıso ICPN8-M18-WS, capacitive sensor (M18, NC, 8 mm, 20-250 V AC). Technical specifications: Housing Type: M18; Output Type: NC; Sensing Distance: 8 mm; Supply Voltage: 20-250 V AC; Connection Type: Cabled; Sensor Head Type: Non-flush; Protection Rating: IP67; Operating Temperature: -25...+70 °C; Protection Features: Short-circuit, overload and reverse polarity protection; Load Current: 100 mA; Housing Material: Brass, nickel-plated. Stock code: ICPN8-M18-WS.
| Supply Voltage | 20-250 V AC |
|---|---|
| Body Type | M18 |
| Output Type | NC |
| Sensing Distance | 8 mm |
| Connection Type | Wired |
| Sensor Head Type | Çıkık (non-flush) |
| Load Current | 100 mA |
| Housing Material | Pirinç, nikel kaplama |
| Protection Rating | IP67 |
| Protection Features | Kısa devre, aşırı load ve ters polarite koruması |
| Operating Temperature | -25...+70 °C |
