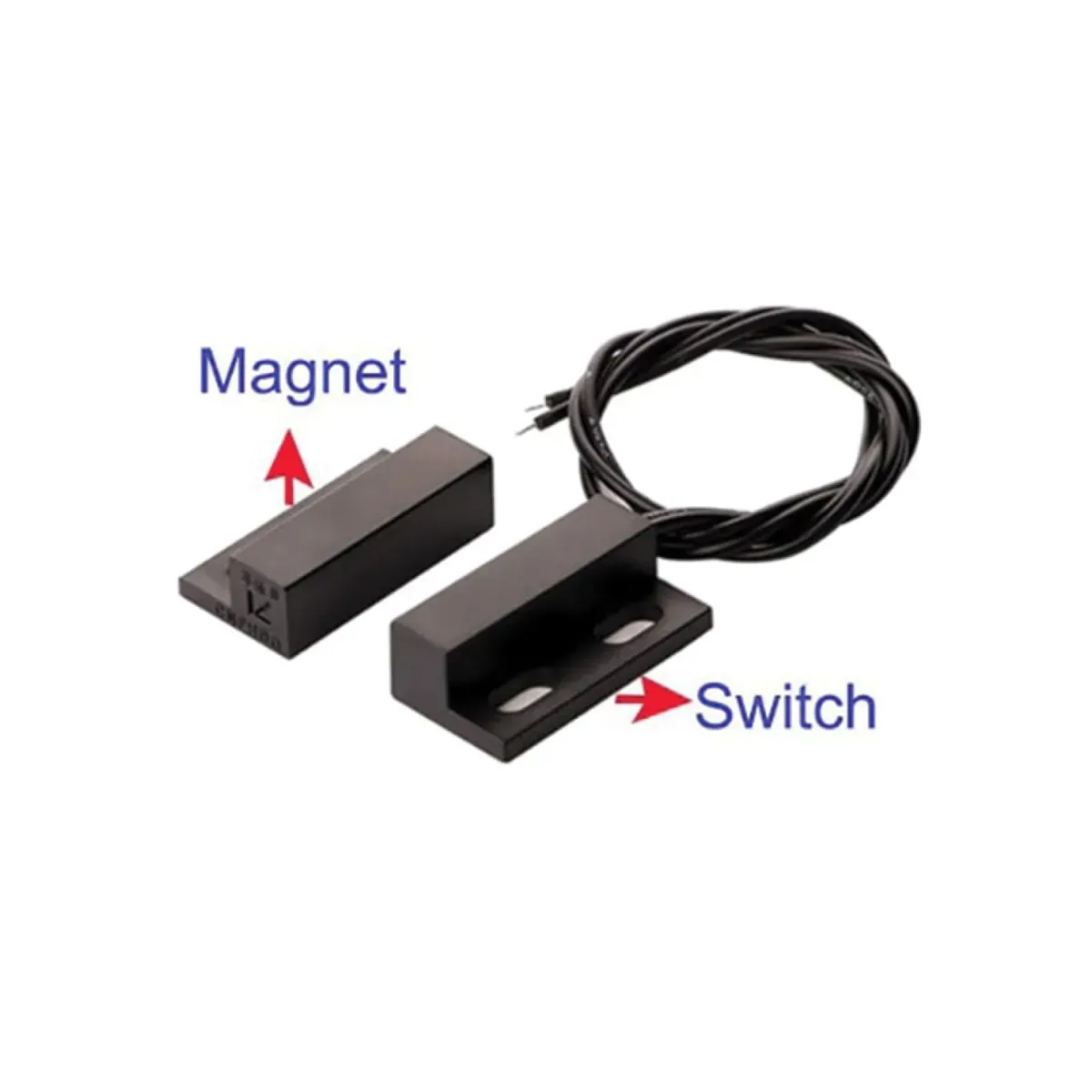

Isıso IKT-3015 Magnetic Sensor, NO+NC COM, 5-15 mm, 5-240 V AC/DC
- Brand: Isıso
- SKU: IKT-3015
- MPN: IKT-3015
- Price: 402.20 TRY + VAT · incl. VAT 482.64 TRY
- Availability: In stock
- Magnetic and Piston Sensors
- Selection guide: Magnetic and Piston Sensors Selection Guide: Technical Criteria & Application Standards
Isıso IKT-3015, magnetic sensor (NO+NC COM, 5-15 mm, 5-240 V AC/DC). Technical specifications: Connection Type: Cabled; Supply Voltage: 5-240 V AC/DC; Number of Wires: 3; Protection Rating: IP67; Operating Temperature: -25...+70 °C; Protection Features: Short-circuit, overload and reverse polarity protection; Load Current: 100 mA; Housing Material: Brass, nickel-plated; Product Dimensions: 23 x 3.2 mm; Output Type: NO+NC COM; Detection Distance: 5-15 mm; Switching Power: 10 W. Stock code: IKT-3015.
| Supply Voltage | 5-240 V AC/DC |
|---|---|
| Output Type | NO+NC COM |
| Sensing Distance | 5–15 mm |
| Connection Type | Wired |
| Load Current | 100 mA |
| Housing Material | Pirinç, nikel kaplama |
| Protection Rating | IP67 |
| Protection Features | Kısa devre, aşırı load ve ters polarite koruması |
| Operating Temperature | -25...+70 °C |
| Number of Wires | 3 |
| Product Dimensions | 23 x 3,2 mm |
| Switching Power | 10 W |
