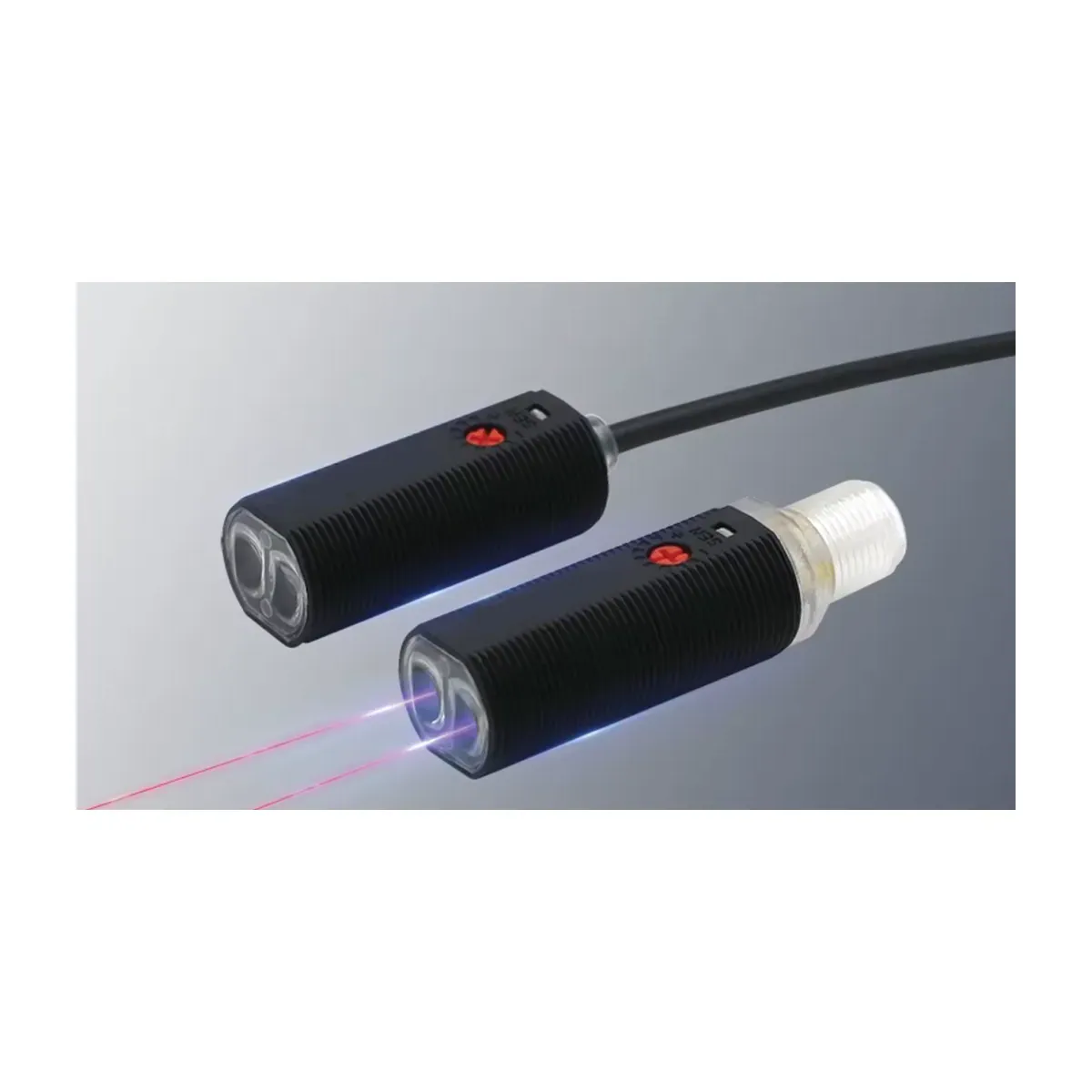

Isıso OPD100-M12-A0 Diffuse Reflective Photoelectric Sensor, M12, NPN NO+NC, 100 mm
- Brand: Isıso
- SKU: OPD100-M12-A0
- MPN: OPD100-M12-A0
- Price: 1206.59 TRY + VAT · incl. VAT 1447.91 TRY
- Availability: In stock
- Diffuse Reflective Cylindrical Photoelectric Sensors
- Isıso Diffuse Reflective Cylindrical Photoelectric Sensors
- Selection guide: Diffuse Reflective Cylindrical Photoelectric Sensors Selection Guide: Technical Criteria and Engineering Practice
Isıso OPD100-M12-A0, diffuse reflective photoelectric sensor (M12, NPN NO+NC, 100 mm). Technical specifications: Housing Type: M12; Output Type: NPN NO+NC; Sensing Distance: 100 mm; Connection Type: Cabled; Number of Wires: 4; Supply Voltage: 10-30 V DC; Protection Rating: IP67; Operating Temperature: -25...+70 °C; Protection Features: Short-circuit, overload and reverse polarity protection; Load Current: 200 mA. Stock code: OPD100-M12-A0.
| Supply Voltage | 10-30 V DC |
|---|---|
| Body Type | M12 |
| Output Type | NPN NO+NC |
| Sensing Distance | 100 mm |
| Connection Type | Wired |
| Load Current | 200 mA |
| Protection Rating | IP67 |
| Protection Features | Kısa devre, aşırı load ve ters polarite koruması |
| Operating Temperature | -25...+70 °C |
| Number of Wires | 4 |
