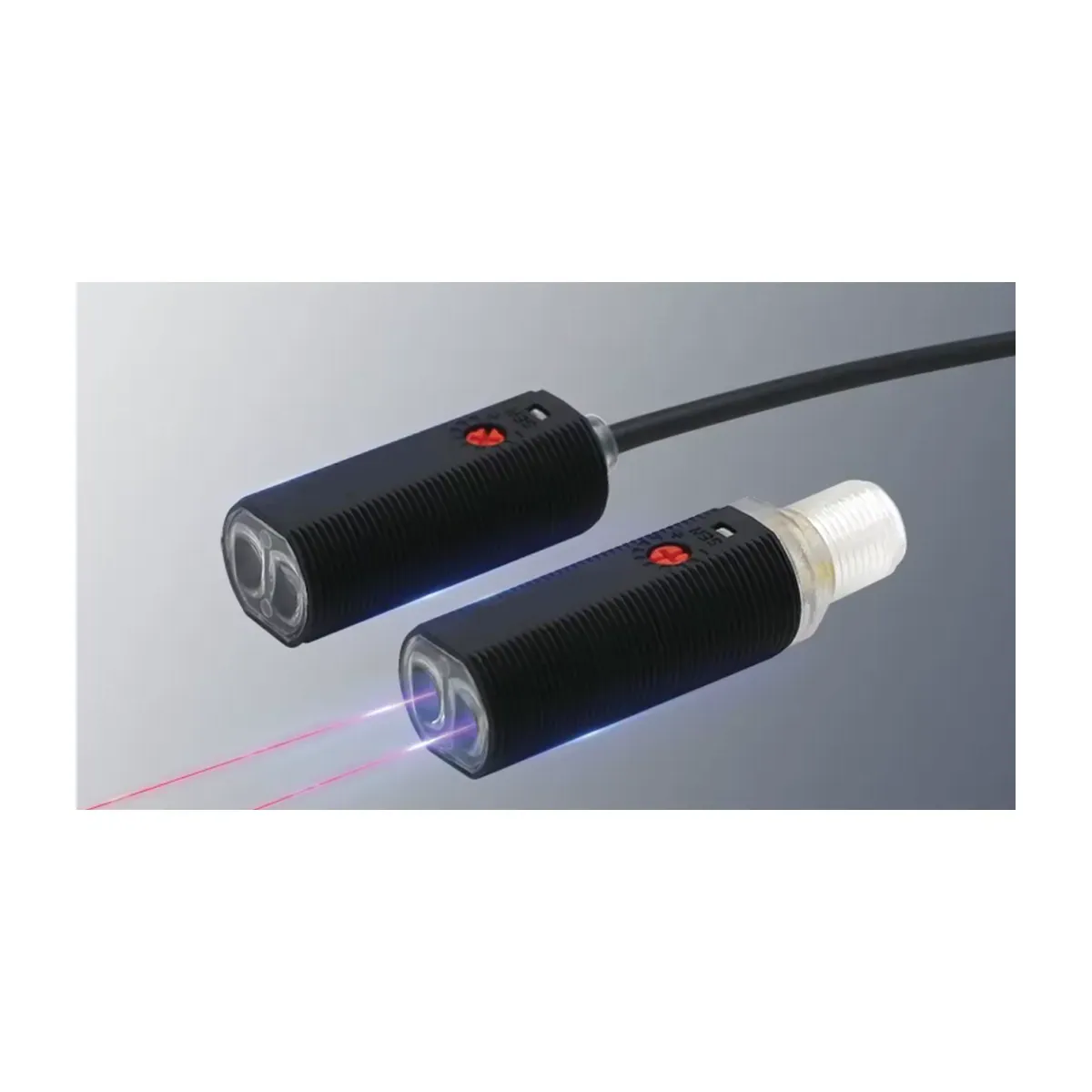

Isıso OPD400-M18-E1C Diffuse Reflective Photoelectric Sensor, M18, NPN NC, 400 mm, with M12 Connector
- Brand: Isıso
- SKU: OPD400-M18-E1C
- MPN: OPD400-M18-E1C
- Price: 804.40 TRY + VAT · incl. VAT 965.28 TRY
- Availability: In stock
- Diffuse Reflective Cylindrical Photoelectric Sensors
- Isıso Diffuse Reflective Cylindrical Photoelectric Sensors
- Selection guide: Diffuse Reflective Cylindrical Photoelectric Sensors Selection Guide: Technical Criteria and Engineering Practice
Isıso OPD400-M18-E1C, diffuse reflective photoelectric sensor (M18, NPN NC, 400 mm, with M12 connector). Technical specifications: Housing Type: M18; Output Type: NPN NC; Sensing Distance: 400 mm; Connection Type: M12 connector; Number of Wires: 3; Supply Voltage: 10-30 V DC; Protection Rating: IP67; Operating Temperature: -25...+70 °C; Protection Features: Short-circuit, overload and reverse polarity protection; Load Current: 200 mA. Stock code: OPD400-M18-E1C.
| Supply Voltage | 10-30 V DC |
|---|---|
| Body Type | M18 |
| Output Type | NPN NC |
| Sensing Distance | 400 mm |
| Connection Type | M12 konnektörlü |
| Load Current | 200 mA |
| Protection Rating | IP67 |
| Protection Features | Kısa devre, aşırı load ve ters polarite koruması |
| Operating Temperature | -25...+70 °C |
| Number of Wires | 3 |
