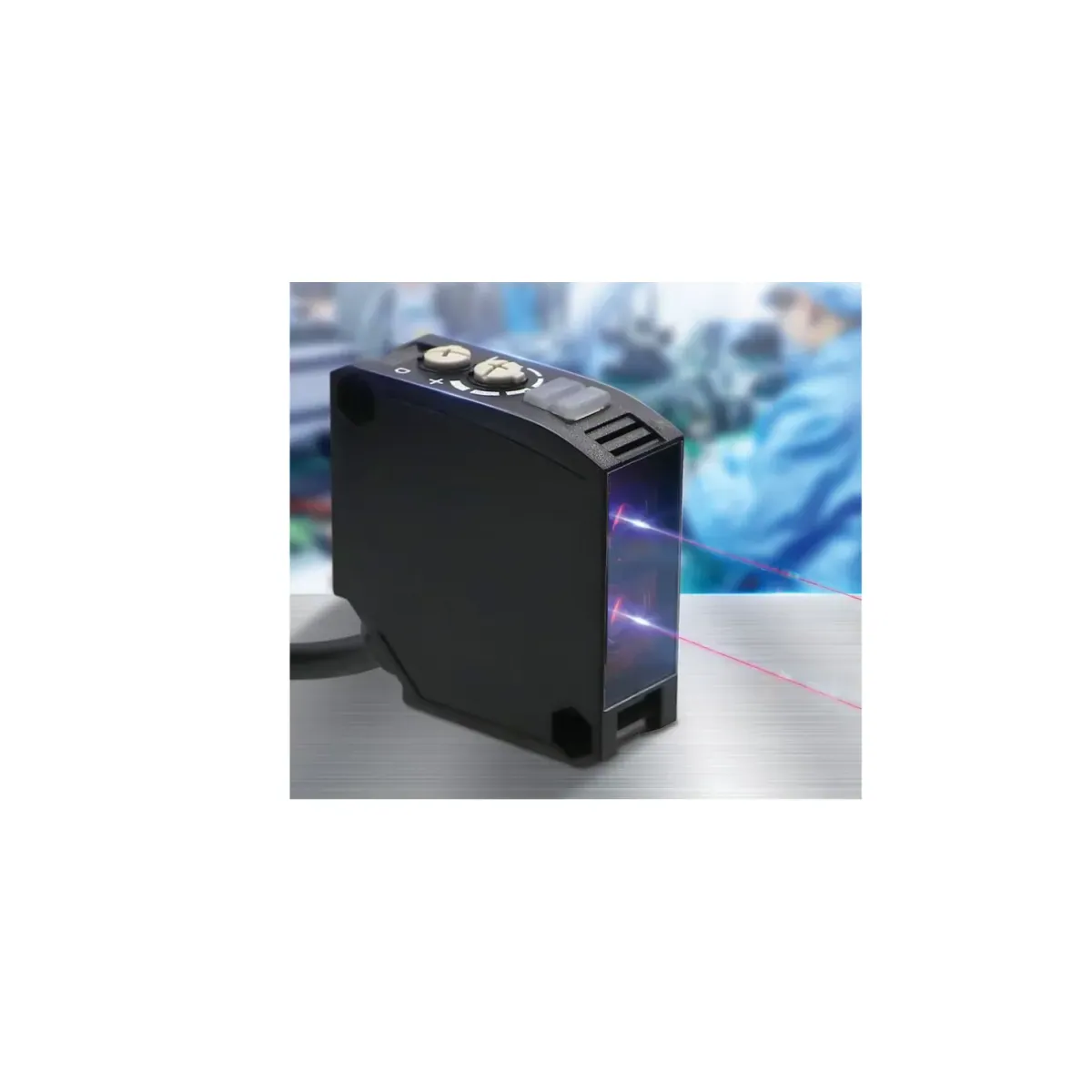

Isıso OPD500-B50-A2 Diffuse Reflective Photoelectric Sensor, Cubic, PNP NO+NC, 50 cm
- Brand: Isıso
- SKU: OPD500-B50-A2
- MPN: OPD500-B50-A2
- Price: 1099.34 TRY + VAT · incl. VAT 1319.21 TRY
- Availability: In stock
- Diffuse Reflective Rectangular Photoelectric Sensors
- Isıso Diffuse Reflective Rectangular Photoelectric Sensors
- Selection guide: Diffuse Reflective Rectangular Photoelectric Sensors Selection Guide: Technical Criteria and Engineering Practice
Isıso OPD500-B50-A2, diffuse reflective photoelectric sensor (Cubic, PNP NO+NC, 50 cm). Technical specifications: Housing Type: Cubic; Output Type: PNP NO+NC; Sensing Distance: 50 cm; Connection Type: Cabled; Number of Wires: 4; Supply Voltage: 10-30 V DC; Protection Rating: IP67; Operating Temperature: -25...+70 °C; Protection Features: Short-circuit, overload and reverse polarity protection; Load Current: 200 mA. Stock code: OPD500-B50-A2.
| Supply Voltage | 10-30 V DC |
|---|---|
| Body Type | Kübik |
| Output Type | PNP NO+NC |
| Sensing Distance | 50 cm |
| Connection Type | Wired |
| Load Current | 200 mA |
| Protection Rating | IP67 |
| Protection Features | Kısa devre, aşırı load ve ters polarite koruması |
| Operating Temperature | -25...+70 °C |
| Number of Wires | 4 |
