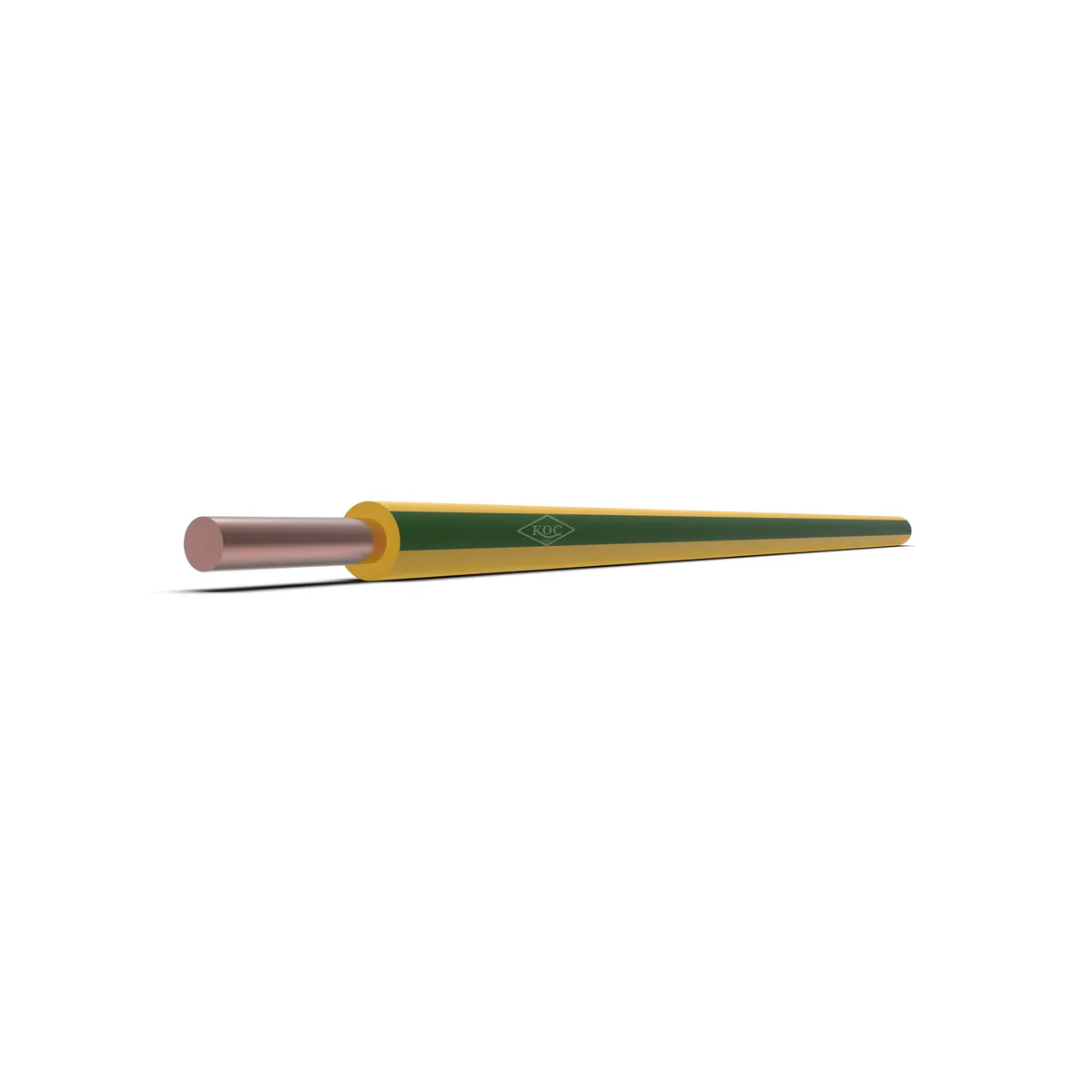

Koç NYAF 1x25 mm2 H07V-K Yellow-Green Grounding Cable
- Brand: Koç Kablo
- SKU: KOCWB0140
- Price: 18075.70 TRY + VAT · incl. VAT 21690.84 TRY
- Availability: Made to order
- NYAF Cables
- Koç Kablo NYAF Cables
- Selection guide: NYAF Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Koç NYAF 1x25 mm2 H07V-K Yellow-Green Grounding Cable. Key technical features: PVC insulation; 70 °C maximum operating temperature; Core cross-section: 1x25 mm2.
| Core Cross-Section | 1x25 mm² |
|---|---|
| Color | Yellow/Green |
| Conductor | Fine-stranded copper conductor |
| Insulation Material | PVC |
| Standards | TS EN 50525-2-31, IEC 60227-3 |
| Operating Temperature | Max. 70 °C |
| Minimum Bending Radius | 6 x D |
| Short-Circuit Temperature | Max. 160 °C |
| Rated Voltage | 450/750 V |
| Flame Retardance / Fire Performance | Yangın tepki sınıfı: Eca (TS EN 50575/A1:2016) |
| Outer Diameter | 9,5 mm (yaklaşık) |
| Conductor Resistance (20 °C) | 0,78 Ω/km (DC) |
| Current Carrying Capacity | Toprakta: 83 A; Havada: 129 A |
