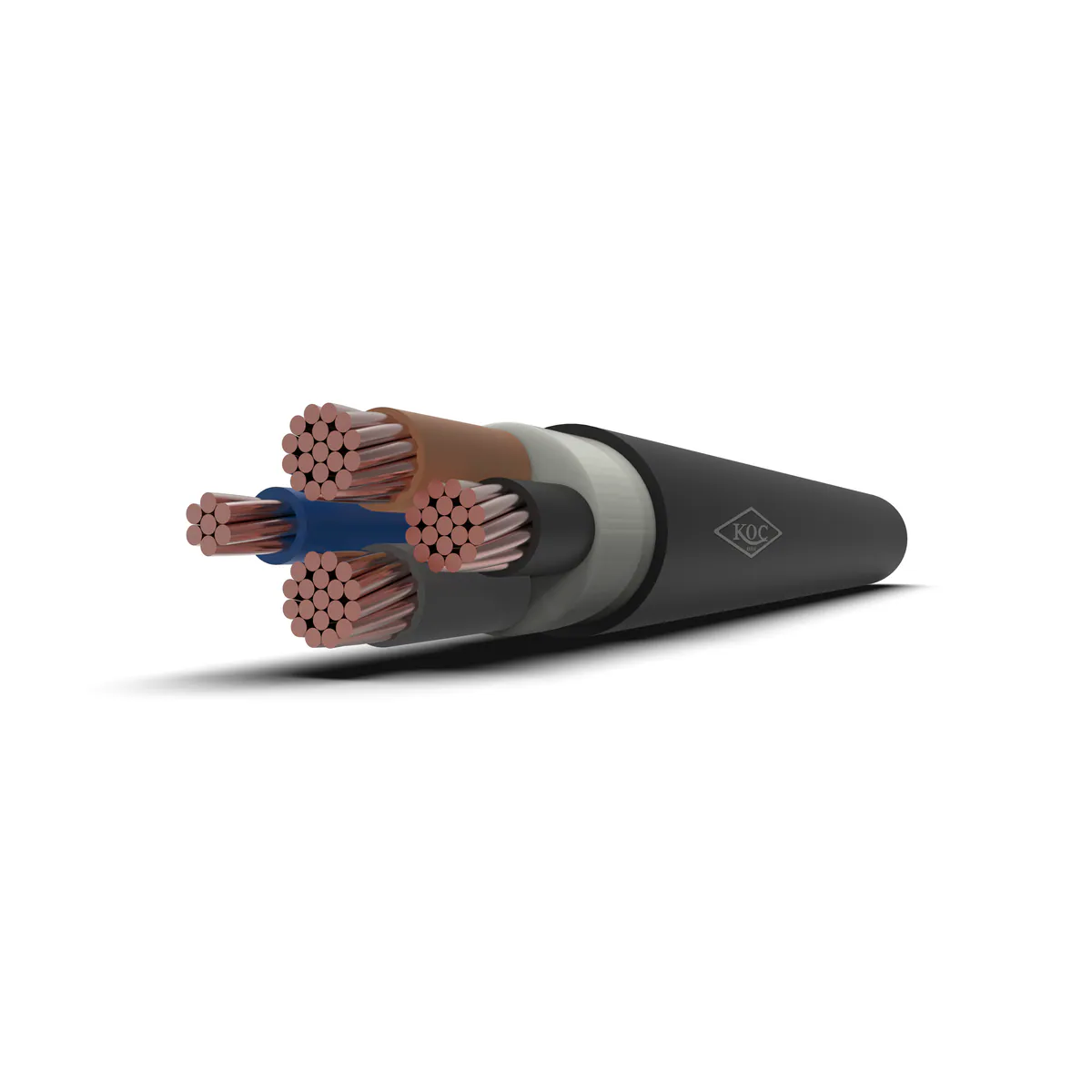

Koç NYY 3x4 mm2 YVV Underground Power Cable
- Brand: Koç Kablo
- SKU: KOCWB0239
- Price: 10303.00 TRY + VAT · incl. VAT 12363.60 TRY
- Availability: In stock
- NYY Cables
- Koç Kablo NYY Cables
- Selection guide: NYY Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
The Koç NYY 3x4 mm2 YVV Underground Power Cable is a product in the NYY underground power cable product family of the Koç Kablo brand. Key technical features: Core cross-section: 3x4 mm2.
| Core Cross-Section | 3x4 mm² |
|---|---|
| Conductor | Tek ya da Çok Telli Bakır İletken |
| Insulation Material | PVC |
| Outer Sheath Material | PVC |
| Standards | TS IEC 60502-1, VDE 0276 |
| Operating Temperature | Max. 70 °C |
| Minimum Bending Radius | 12 x D |
| Rated Voltage | 0,6/1 kV |
| Short-Circuit Temperature | Max. 160 °C (≤300 mm²) |
| Outer Diameter | 14,5 mm (yaklaşık) |
| Conductor Resistance (20 °C) | 4,61 Ω/km (DC) |
| Current Carrying Capacity | Toprakta: 44 A; Havada: 34 A |
