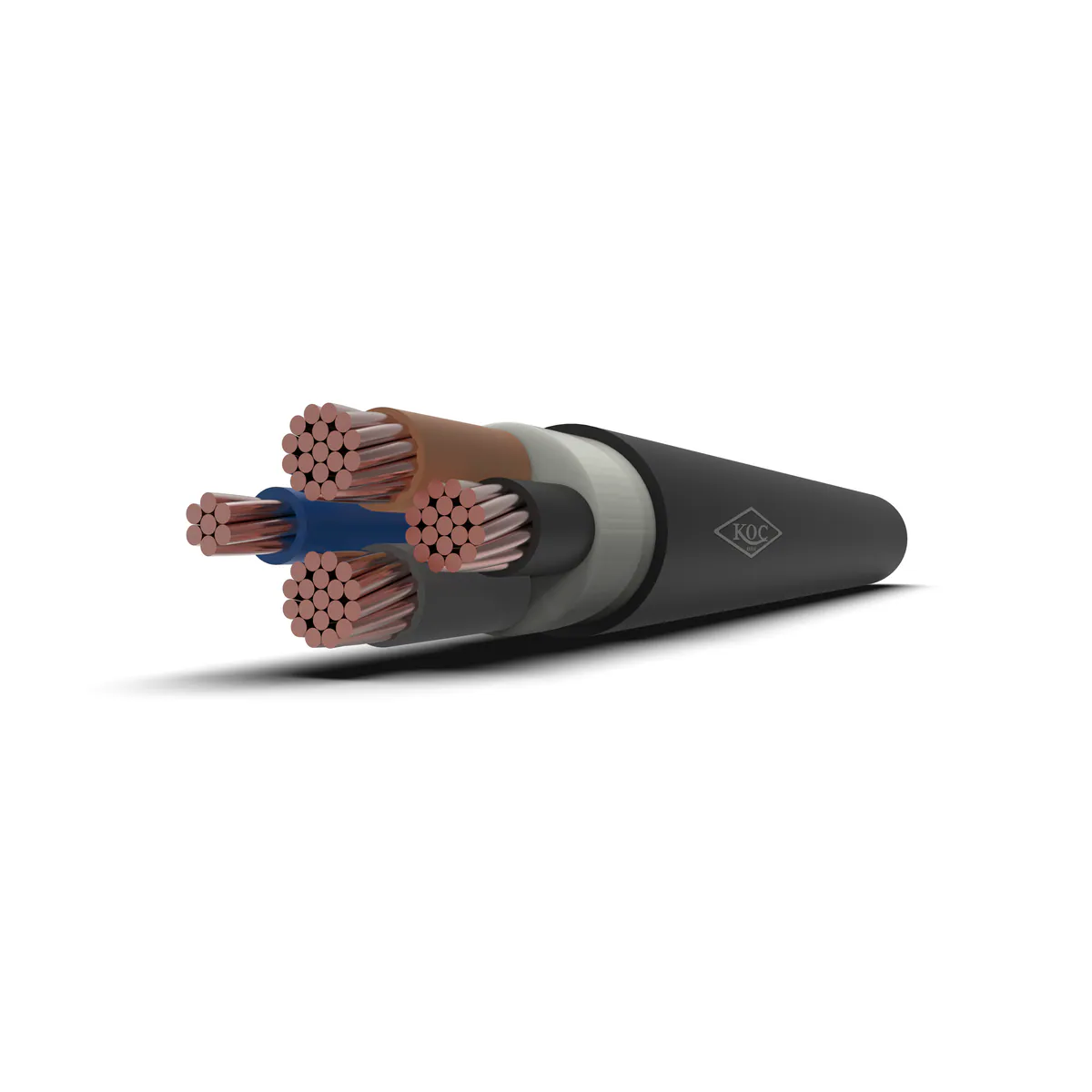

Koç NYY 3x70+35 mm2 YVV Underground Power Cable
- Brand: Koç Kablo
- SKU: KOCWB0247
- Price: 168051.00 TRY + VAT · incl. VAT 201661.20 TRY
- Availability: In stock
- NYY Cables
- Koç Kablo NYY Cables
- Selection guide: NYY Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
The Koç NYY 3x70+35 mm2 YVV Underground Power Cable is a product in the NYY underground power cable product family of the Koç Kablo brand.
| Core Cross-Section | 3x70+35 mm² |
|---|---|
| Conductor | Tek ya da Çok Telli Bakır İletken |
| Insulation Material | PVC |
| Outer Sheath Material | PVC |
| Standards | TS IEC 60502-1, VDE 0276 |
| Operating Temperature | Max. 70 °C |
| Minimum Bending Radius | 12 x D |
| Rated Voltage | 0,6/1 kV |
| Short-Circuit Temperature | Max. 160 °C (≤300 mm²) |
| Outer Diameter | 35 mm (yaklaşık) |
| Conductor Resistance (20 °C) | 70 mm²: 0,268 Ω/km; 35 mm²: 0,524 Ω/km (DC) |
| Current Carrying Capacity | Toprakta: 228 A; Havada: 202 A |
