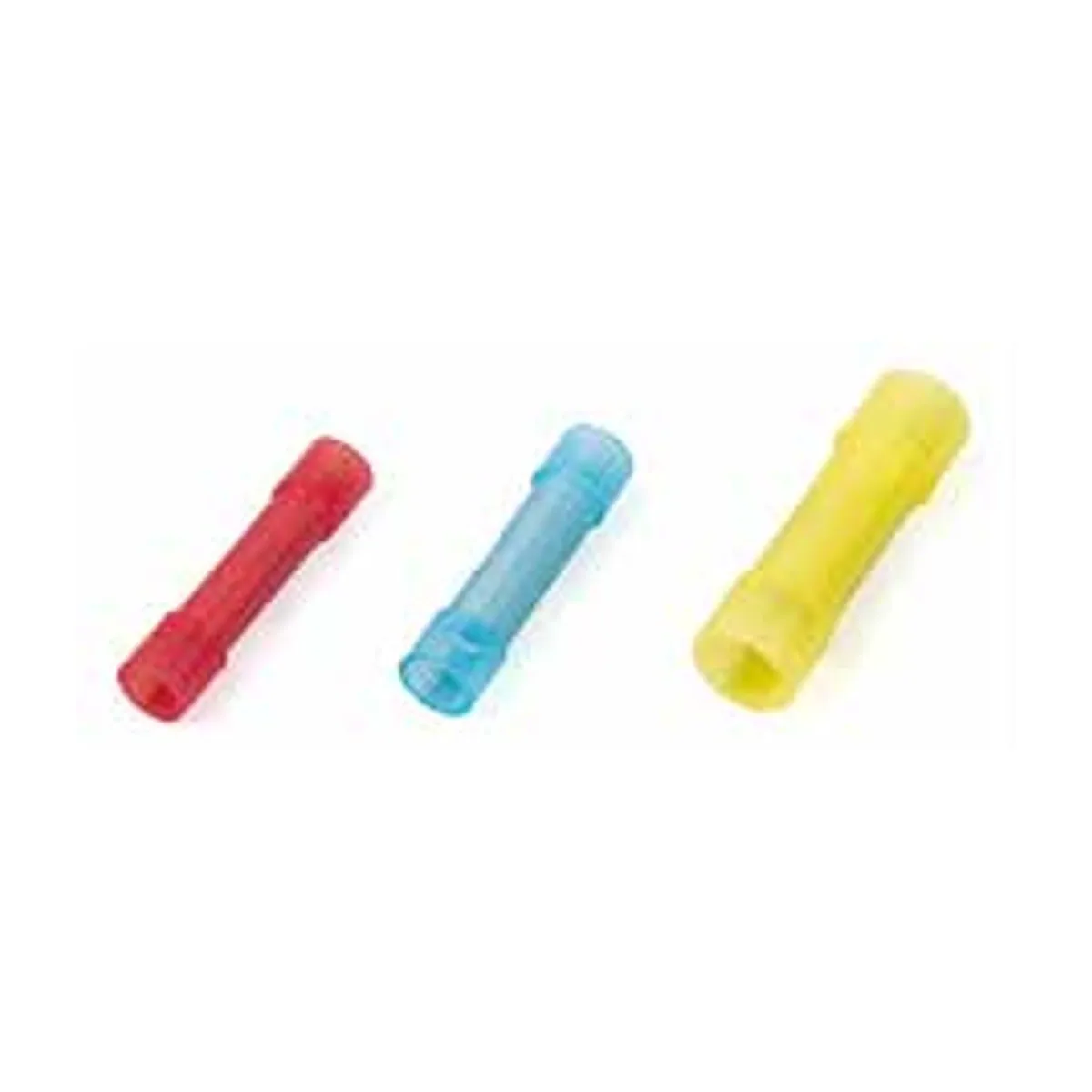

KSN KBHT-2 Heat-Shrink Splice Sleeve 1.5-2.5 mm2 Blue
- Brand: KSN
- SKU: KSN3281
- MPN: KBHT-2
- Price: 756.00 TRY + VAT · incl. VAT 907.20 TRY
- Availability: In stock
- Splice Joints
- KSN Splice Joints
- Selection guide: Splice Joints Selection Guide: Technical Criteria and Engineering Practice
The KSN KBHT-2 is a blue splice sleeve with heat-shrink sleeve insulation, used to join conductors with a 1.5-2.5 mm² (16-14 AWG) cross-section. The splice body is tin-plated copper; the insulation is a heat-shrink sleeve. The catalog gives a maximum operating temperature of 105 °C and a voltage of 600 V. Dimensions in the catalog: length (L) 26.0 mm, inner diameter (d) 2.4 mm, outer diameter (D) 4.8 mm. The product is listed in the catalog as a bag of 100; sales are made in quantities of 100 and multiples. Used to join conductors at cable splice points.
| Cable Terminal Type | Ek Muf Tip |
|---|---|
| Splice Type | Isı Büzüşmeli |
| Ferrule Size | 1.5–2.5 mm |
| Ferrule/Lug Insulation | İzoleli |
| Color | Blue |
| Cable Cross-Section | 1,5 ~ 2,5 mm² / 16 ~ 14 AWG |
| Material | Bakır, Kalay Kaplı |
| Isolation | Isı ile daralan makaron |
| Operating Temperature | Maksimum 105 °C |
| Voltage | 600 V |
| Length | 26 mm |
| Inner Diameter | 2.4 mm |
| Outer Diameter | 4.8 mm |
