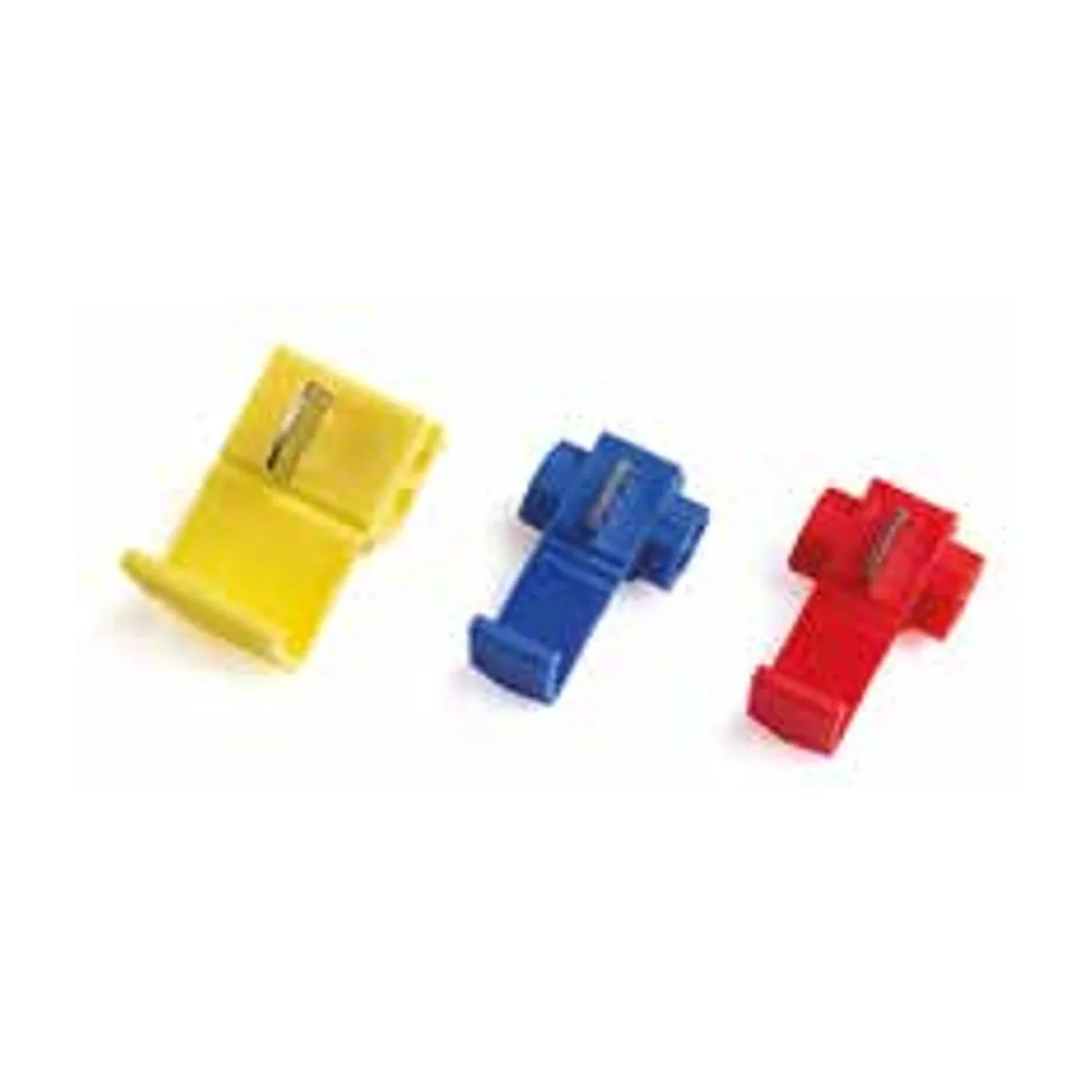

KSN KSP-2 Quick Cable Splice Connector 1.0-2.5 mm2 Blue
- Brand: KSN
- SKU: KSN3306
- MPN: KSP-2
- Model: 1,0-2,5 mm²
- Price: 2021.00 TRY + VAT · incl. VAT 2425.20 TRY
- Availability: In stock
- Quick Cable Splice Connectors
- Selection guide: Junction Box Terminal Blocks Selection Guide: Technical Criteria and Engineering Practice
The KSN KSP-2 is a blue cable splice connector with nylon insulation, used to make quick splices in conductors with a 1.0-2.5 mm² cross-section. Housing material is tin-plated brass; insulation is nylon. The catalog gives a maximum operating temperature of 105 °C and a voltage of 600 V. Dimensions in the catalog: width (W) 20.0 mm, length (L) 27.0 mm. The product is listed in the catalog as a bag of 1000; sales are made in quantities of 1000 and multiples. Used at cable splice and connection points.
| Color | Blue |
|---|---|
| Cable Cross-Section | 1,0 ~ 2,5 mm² |
| Material | Pirinç, Kalay Kaplı |
| Isolation | Naylon |
| Operating Temperature | Maksimum 105 °C |
| Voltage | 600 V |
| Dimension W | 20 mm |
| Length | 27 mm |
