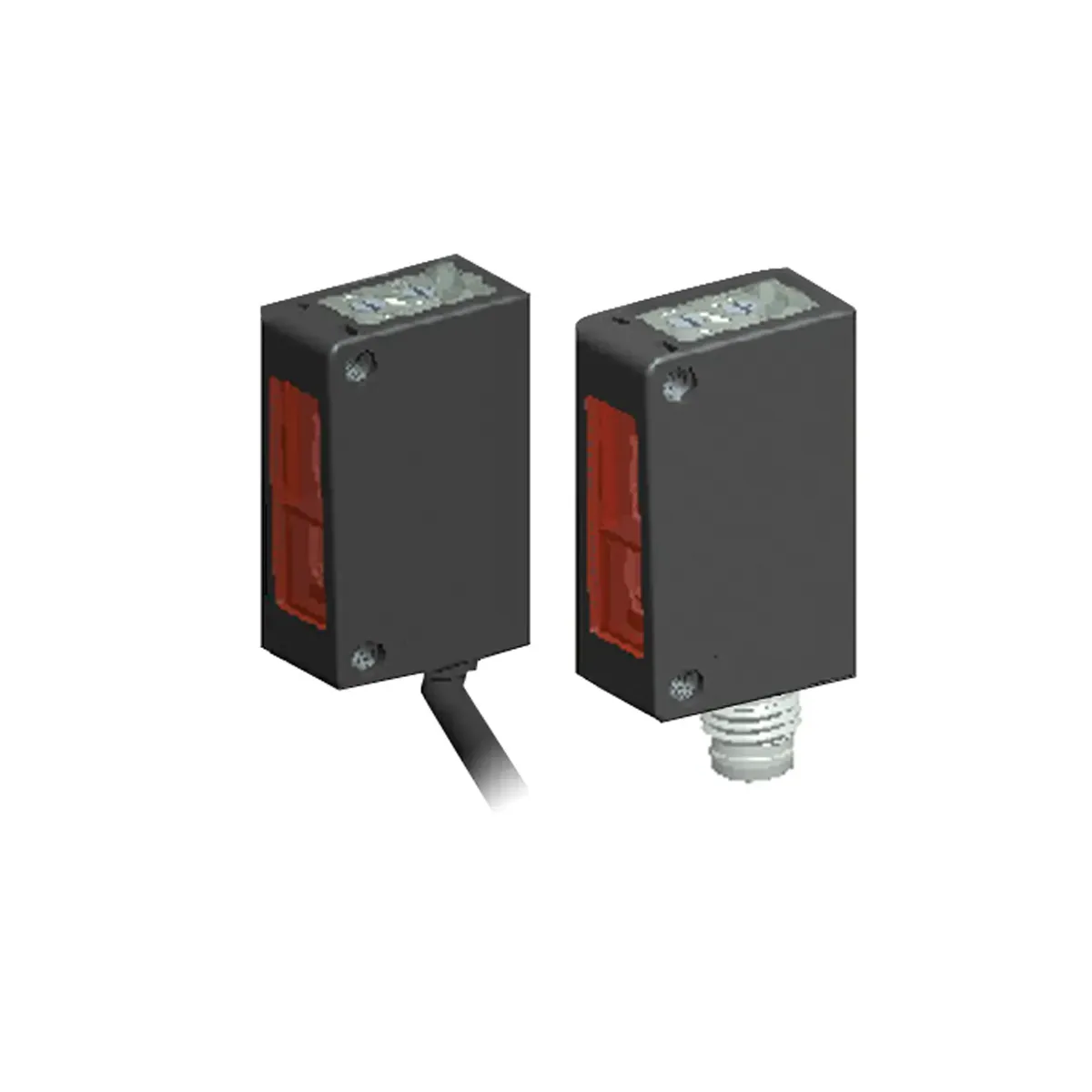

Lanbao PSCT-YC35TPBR-E1 35cm Sensing Range, Output PNP NO+NC, Diameter Prismatic Diffuse Reflective Photoelectric Sensor

Lanbao PSCT-YC35TPBR-E1 35cm Sensing Range, Output PNP NO+NC, Diameter Prismatic Diffuse Reflective Photoelectric Sensor

Lanbao PSCT-YC35TPBR-E1 35cm Detection, Output PNP NO+NC, Rectangular Diffuse Reflective Photoelectric Sensor, is a Lanbao-brand product in the diffuse reflective category. Product code is PSCT-YC35TPBR-E1. Lanbao PSCT-YC35TPBR-E1 35 cm Detection, Output PNP NO+NC, Rectangular Diffuse Reflective Photoelectric Sensor Lanbao PSCT-YC35TPBR-E1 is an industrial photoelectric sensor operating on the rectangular diffuse reflective (prism-enhanced diffuse reflective) detection principle, with a detection distance of 35 cm and a PNP logic with NO (Normally Open) + NC (Normally Closed) output combination. The light leaves the sensor surface, is reflected by the prismatic structure from the surface of the object in the detection zone, and returns to the receiver. While the light path stays open, the outputs are actively monitored; when the light path is interrupted by an object, the sensor generates switching signals (PNP NO + NC) for the PLC or DC control system it is connected to. Technical Specifications • Sensor Type: Prismatic diffuse reflective (Diffuse Reflective with Prism) • Brand / Series: Lanbao / PSCT-YC • Model / SKU: PSCT-YC35TPBR-E1 • Detection Distance: 35 cm • Detection Principle: Prismatic diffuse reflective • Output Logic: PNP, NO + NC (Normally Open + Normally Closed) • Switching Speed: Approx. 1 kHz • Supply / Connection: 10–30 V DC, cabled • Protection Rating: IP67 • Use environment: Industrial automation, production line, packaging systems, panel applications Applications • Prismatic diffuse reflective object presence detection at a distance of 35 cm • Part detection on conveyors and handling lines • Packaging and assembly line checks • Machine cycle and position monitoring • PLC/DC panel digital input triggering Advantages of Lanbao Photoelectric Sensors Lanbao prismatic diffuse reflective photoelectric sensors provide higher optical sensitivity, clearer signal return and more stable detection performance than classic diffuse reflective sensors, thanks to their prismatic optical design. This reduces false triggering caused by background reflections in short and medium distance operation and increases detection reliability. PNP NO + NC dual logic output offers flexible connection compatible with different PLC and control systems. An approximately 1 kHz switching speed makes it possible to detect fast-moving objects reliably. With a 10–30 V DC supply, the sensor integrates easily into modern automation systems. IP67 protection rating provides resistance to dust and water ingress, offering long-lasting use in harsh field conditions. Lanbao PSCT-YC35TPBR-E1 offers a clear and reliable optical detection solution in 35 cm mid-range applications, with advantages such as high sensitivity, stable signal performance, flexible logic output support and durability.
