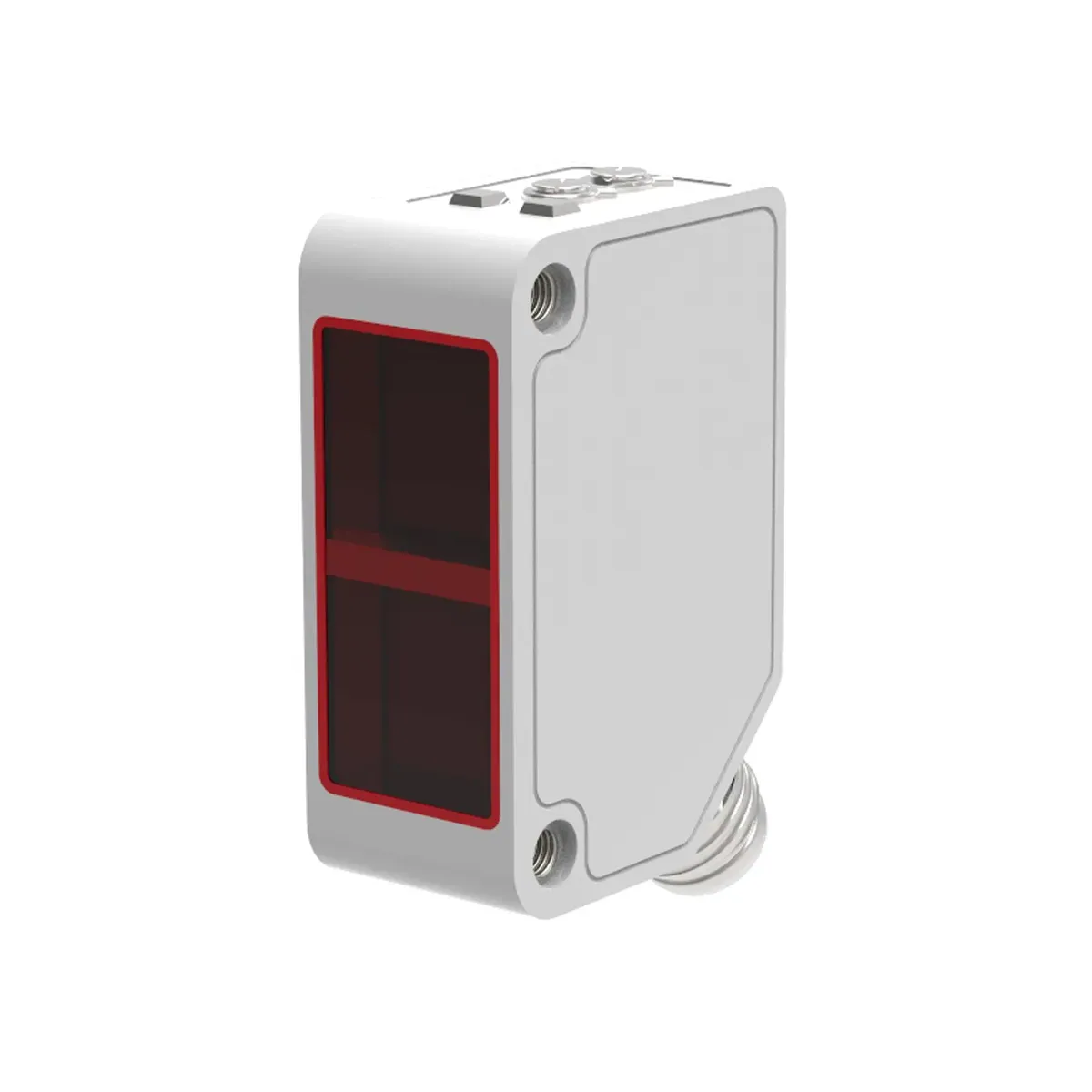

Lanbao PSFT-BC30DNB-E1 30cm Sensing Range, Output NPN NO+NC, Diameter Rectangular Diffuse Reflective Photoelectric Sensor

Lanbao PSFT-BC30DNB-E1 30cm Sensing Range, Output NPN NO+NC, Diameter Rectangular Diffuse Reflective Photoelectric Sensor

Lanbao PSFT-BC30DNB-E1 30cm Sensing Range, Output NPN NO+NC, Diameter Rectangular Diffuse Reflective Photoelectric Sensor is a Lanbao brand product in the diffuse reflective category. Product code is PSFT-BC30DNB-E1. Lanbao PSFT BC30DNB E1 30 cm Diffuse Reflective Photoelectric Sensor, NPN Output (NO + NC), 10-30V DC, 1 kHz, IP67 Lanbao PSFT BC30DNB E1 is an industrial photoelectric sensor with a rectangular optical head, operating on the Diffuse Reflective (reflection from the object) detection principle. Provides stable presence detection, independent of color and surface, up to 30 cm. The built-in IR LED light source supports stable, noise-free signal reading at the receiver. NPN transistor outputs (NO + NC) are suitable for sinking input triggering and simultaneous inverse logic status monitoring in PLC and DC automation panels. 1 kHz switching speed offers a reliable digital triggering band in fast, repetitive automation applications. Technical Specifications Detection Distance: 0-300 mm (30 cm / 0.3 m, reflectorless, off the object) Detection Principle: Diffuse Reflective (no reflector required) Model / SKU: PTLT-BC30DNB-E1 Output: NPN transistor (NO + NC), 1 kHz Supply / Connection: 10-30V DC, wired Light Source: IR LED Protection Rating: IP67 Operating Temperature: −25°C … +55°C Use Environment: Conveyors, production lines, machine and PLC/DC panel automation Applications Detection of opaque objects, products and packages up to 30 cm Presence/position control in machine automation NPN sinking input triggering + NO/NC status monitoring on PLCs DC automation lines requiring ambient light and optical noise immunity Technical Information The sensor is of the Diffuse Reflective class and does not require a reflector. At 30 cm, correct use is axial detection directly off the object. The output is NPN (sinking output) type and connects to the PLC as a sinking input. NO + NC signals provide simultaneous logic control and monitoring from a single sensor. The E1 series is a reflective revised series with improved background and optical noise immunity. Advantages: Lanbao PSFT BC30DNB E1 provides reliable triggering in repetitive automation lines with high stability in short-range optical detection, independence from color and surface, and fast switching at 1 kHz. The NPN NO + NC dual transistor output offers both primary logic control and inverse status monitoring from a single sensor. IR LED light source provides strong immunity to ambient light and surface reflection noise. IP67 protection rating makes the sensor resistant to dust, moisture and water, improving industrial field reliability. 10-30V DC supply offers directly compatible integration with PLC and DC panel systems without the need for an additional interface.
